Pitch P6.6 Football Sport Perimeter LED Display RGB ICN2037 OEM ODM
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P6.6 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 10-15 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product Name | Football Stadium Screens | Cabinet Size | 960x960mm |
|---|---|---|---|
| Cabinet Material | Aluminum Die Casting | Scan Mode | 1/6 Scan |
| Power Supply | AC110V/220V | Color | RGB |
| High Light | ODM Sport Perimeter LED Display,ICN2037 Sport Perimeter LED Display,ICN2037 led perimeter display |
||
Product Description

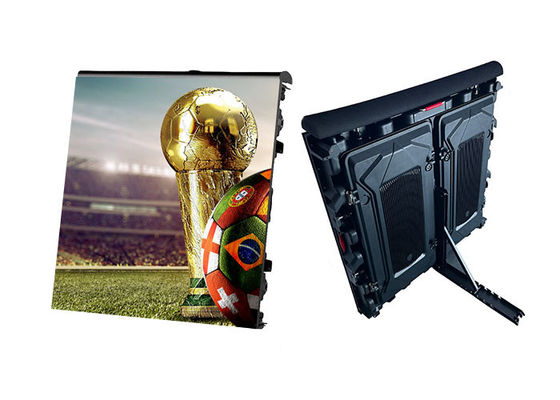

Pitch P6.6 Football Sport Perimeter LED Display RGB ICN2037 OEM ODM
Pitch P6.6 Mm Football Stadium Screens For Sofi Stadium Display
Product description
1. The cabinet adopts an adjustable tilt angle design, which can adjust the appropriate tilt angle (75°-90°) according to different environmental requirements, which can meet the viewing needs of on-site audiences.
2. The stadium screen uses a soft mask and a soft material covering the upper part, which can protect the LED lamp beads and avoid obvious injuries caused by collisions.
3. The LED stadium screen uses an efficient optical fiber transmission system, which greatly reduces the delay caused by the transmission distance on the football field, and can ensure that the screen playback is always consistent. At the same time, it also has a dual network cable hot backup function.
4. Meet a variety of fence screen applications: football, ice hockey, basketball.
5. Support different sizes to fight each other (left and right)
6. Easy to install, fast lock in only 20 seconds, CNC high-precision processing, high-precision seamless splicing.
| Pixel Pitch | 6.6mm | |||
| LED Lamp | SMD3535 | |||
| IC | ICN2037 | |||
| Module Size | 320x160mm | |||
| Module pixels | 48x24dots | |||
| Cabinet Size(WxHxD)(mm) | 960x960x108 mm | |||
| Module Quantity(pcs) | 18 | |||
| Cabinet resolution WxH | 144x144dots | |||
| Cabinet Material | Aluminum die casting | |||
| Cabinet Weight (kg) | 29 | |||
| Average Power/sqm (watts) | 240 | |||
| Max Power/sqm(watts) | 800 | |||
| Brightness | 6000cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 8-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 16 bit | |||
| Refresh frequency | 3840hertz | |||
| Driving mode | 1/6 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP65 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
One- Stop Solution Service
1.3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.
2.Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.
3.7/24 online remote control service , and local engineer service within 8 hours contact.
4.Free technical training in factory.
5.MPLED engineers will fly to the site if you need local service.
6.Expanding market plan with professional MPLED team over 8 years experience.
7.Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
