Ultra HD 640x480mm Small Pitch LED Display Video Wall Panel 600cd/M2

Place of Origin China
Brand Name MPLED
Certification CE/ROHS/FCC/ISO/UL
Model Number P1.5
Minimum Order Quantity 1
Price Negotiable
Packaging Details flight case/ wooden case/ carton/ it is up to you
Delivery Time 7-10 working days after receive your payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000sqm
Product Details
Product Name LED Video Wall Panel Pixels 1.5mm
Brightness 600cd/m² Warranty 2 Years
Cabinet Size 640*480mm Color 1R1G1B
High Light

640x480mm LED Video Wall

,

600cd/M2 Small Pitch LED Display

,

ROHS Small Pitch LED Display

Leave a Message
Product Description

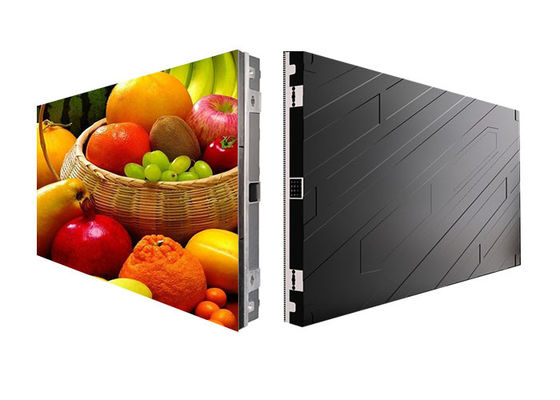

Ultra HD 640x480mm Small Pitch LED Display Video Wall Panel 600cd/M2



16:9 Aspect Ratio P1.5 Ultra-HD 640x480mm LED Video Wall Panel



Product description



1. The world's first golden ratio of 16:9 standard cabinet, Consistent with the pupil ratio of the human eye,Compatible with 2K, 4K and 8K ,Bezel-free



2.The cable-free design between the cabinets not only effectively reduces the failure rate but also extends the life of the screen.



3. CNC high-precision die-casting aluminum box, super quiet fan free design.



4. Widely used in auditorium, conference room, banquet hall, secturity monitoring, command system, etc.



5. Through the smooth optical design technology, filter the stray light effect and make the chips have even light. Achieve a large perspective, no sense of particles when watching and it is comfortable and healthy to watch close for a long time.



6. Magnetically modules and fully front serviceable design, easy installation and maintenance.



Pixel Pitch 1.5mm
LED Lamp SMD1212
IC ICN2153
Module Size 320x160mm
Module pixels 208x104dots
Cabinet Size(WxH)(mm) 680x480mm
Module Quantity(pcs) 6
Cabinet resolution WxH 516x312dots
Cabinet Material Aluminum die casting
Cabinet Weight (kg) 7
Average Power/sqm (watts) 200
Max Power/sqm(watts) 600
Brightness 800cd/㎡
Viewing Angle H:160°, V:120°
Best Viewing Distance 1.8-200 meters
Brightness Control 256 level
Gray scale 16 bit
Refresh frequency 3840hertz
Driving mode 1/26 scan
Input power frequency 50 or 60 Hertz
Input Voltage 110 ~ 240 Volt,60Hz
Blind spot rate <1/10000
Lifetime at 50% brightness 100000 hours
Ingress Protection IP30
Operating temperature ﹣20 ~﹢60 ℃
Operating humidity 10% ~ 90%
Control distance CAT5 cable:<100 m; Single mode fiber:<10 km
Signal input format HDMI,DVI,SDI,VGA etc.
Operating system Windows (2000/XP/Vista/7/8/10)





Ultra HD 640x480mm Small Pitch LED Display Video Wall Panel 600cd/M2 0Ultra HD 640x480mm Small Pitch LED Display Video Wall Panel 600cd/M2 1



FAQ



Q1: What's the pixel pitch for Indoor LED Display Screen ?

A1: Indoor 1.5 MM

Q2: Where is it used for?

A2: Indoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.



Q3: Can it play HD video?



A3: Yes, it can realize HD video function with Novastar controlling system.

Q4: What's the controlling system?

A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.

Q5: How about the size of project?

A5: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.



LED display,also called led screen, led video wall, or led sign, with its unique advantages,has gradually replaced the traditional billboards, light boxes,projectors etc. LED display has become a new force in the media industry.
