Background Led Video Display Board 1.5mm Pixel ICN2153 ROHS Approved

Place of Origin China
Brand Name MPLED
Certification CE/ROHS/FCC/ISO/UL
Model Number P1.5
Minimum Order Quantity 1
Price Negotiable
Packaging Details flight case/ wooden case/ carton/ it is up to you
Delivery Time 7-10 working days after receive your payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000sqm
Product Details
Product Name Led Video Display Board Cabinet Size 640x480mm
Cabinet Material Aluminum Die Casting Refresh Frequency 3840Hz
Input Voltage 110 ~ 240 Volt,60Hz Operating Humidity 10% ~ 90%
High Light

ROHS Led Video Display Board

,

ICN2153 Led Video Display Board

,

ICN2153 led tv display

Leave a Message
Product Description

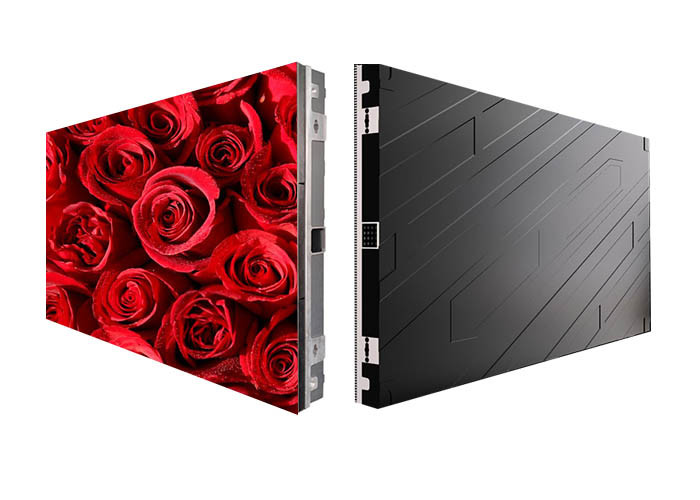

Background Led Video Display Board 1.5mm Pixel ICN2153 ROHS Approved



Led Wall Tv Production Background Virtual Screens P1.5 LED Display



Product description



1.  Support power and signal double backup design plan black screen won’t appear even if one of the power,card and signal go wrong.



2. No need to add additional load-bearing structure, which can effectively reduce installation costs.



3. Modules, receiving cards, and cables can be maintained from the front, greatly reducing labor and steel structaure costs.



4. By applying hermetically sealed structure achieved highly efficient heat dissipation function. led tv display



5. The wide viewing angle (H160° / V120° )covers a larger viewable space and enables more viewers to experience the stunning details.



Pixel Pitch 1.5mm
LED Lamp SMD1212
IC ICN2153
Module Size 320x160mm
Module pixels 208x104dots
Cabinet Size(WxH)(mm) 680x480mm
Module Quantity(pcs) 6
Cabinet resolution WxH 516x312dots
Cabinet Material Aluminum die casting
Cabinet Weight (kg) 7
Average Power/sqm (watts) 200
Max Power/sqm(watts) 600
Brightness 800cd/㎡
Viewing Angle H:160°, V:120°
Best Viewing Distance 1.8-200 meters
Brightness Control 256 level
Gray scale 16 bit
Refresh frequency 3840hertz
Driving mode 1/26 scan
Input power frequency 50 or 60 Hertz
Input Voltage 110 ~ 240 Volt,60Hz
Blind spot rate <1/10000
Lifetime at 50% brightness 100000 hours
Ingress Protection IP30
Operating temperature ﹣20 ~﹢60 ℃
Operating humidity 10% ~ 90%
Control distance CAT5 cable:<100 m; Single mode fiber:<10 km
Signal input format HDMI,DVI,SDI,VGA etc.
Operating system Windows (2000/XP/Vista/7/8/10)



Background Led Video Display Board 1.5mm Pixel ICN2153 ROHS Approved 0Background Led Video Display Board 1.5mm Pixel ICN2153 ROHS Approved 1



One- Stop Solution Service



1.3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.



2.Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.



3.7/24 online remote control service , and local engineer service within 8 hours contact.



4.Free technical training in factory.



5.MPLED engineers will fly to the site if you need local service.



6.Expanding market plan with professional MPLED team over 8 years experience.



7.Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries.



FAQ



Q1:What is the control system? How is it?
A:We use Nova Taurus Series asynchronous control system. Support cluster play and managementSupportAPP/PhoneWIFIIpad/Laptop/PC/Cloud control. It's very easy and convenient to control.

Q2:What is your best service?
A:One to one sales engineer to customer responsibility system. We will do:
1. Know your proiect and provide the best solution for it
2. Track your order and let you know each step and detail of it:
3. Teachyou how to install and use the screen;
4. Care the subsequent use of your screen and ensure vour after -sales service be well



Q3:How about your delivery time?
A:Generally. it will take 15 to 25 days after receiving your advance payment. The spe- cific delivery time depends on the items and the quantity of your order.

Q4:How about your Warranty Term?
A:2-5year warranty. Structure design,installation problem,program the screen. how to use the screen... don't worry,we have professional after-sale team to solve your any questions after you placed an order. And your exclu-sive sales engineer will also help you get over any problems.
