3840Hz Small Pitch LED Display Indoor Ultra Thin Led Screen 344x256 dots
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P1.8 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 7-10 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product Name | Small Pixel Pitch Screen Display | Cabinet Size | 640x480mm |
|---|---|---|---|
| Brightness Control | 256 Level | Gray Scale | 16 Bit |
| Refresh Frequency | 3840Hz | Input Power Frequency | 50 Or 60 Hertz |
| High Light | 3840Hz Small Pitch LED Display,3840Hz Ultra Thin Led Screen,344x256 Dots Ultra Thin Led Screen |
||
Product Description

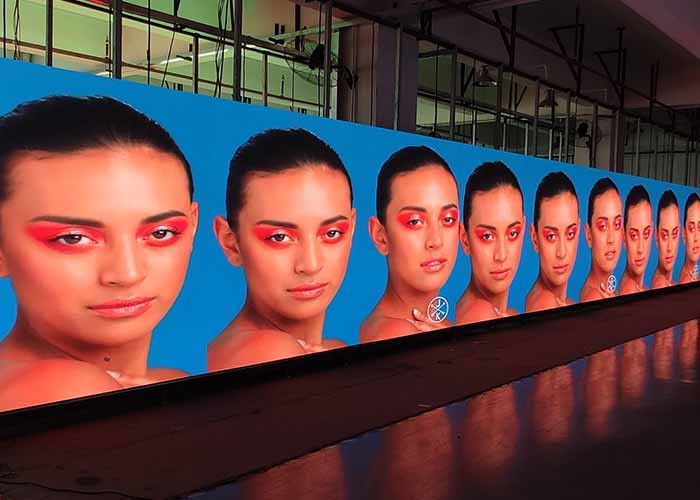

3840Hz Small Pitch LED Display Indoor Ultra Thin Led Screen 344x256 Dots
Small Pixel Pitch Screen Display Indoor Wall Spacing Panel Pantalla Led 1.8
Product description
1. Support power and signal double backup design plan black screen won’t appear even if one of the power,card and signal go wrong.
2. Support various installation methods, such as wall-mount, hanging and stacking.
3. High brightness, high gray scale, high refresh rate, high contrast ratio with perfect performance.
4. High brightness, high gray scale, high refresh rate, high contrast ratio with perfect performance.
5. CNC high-precision die-casting aluminum box, super quiet fan free design.
| Pixel Pitch | 1.8mm | |||
| LED Lamp | SMD1515 | |||
| IC | ICN2153 | |||
| Module Size | 320x160mm | |||
| Module pixels | 172x86dots | |||
| Cabinet Size(WxH)(mm) | 680x480mm | |||
| Module Quantity(pcs) | 6 | |||
| Cabinet resolution WxH | 344x256 dots | |||
| Cabinet Material | Aluminum die casting | |||
| Cabinet Weight (kg) | 7 | |||
| Average Power/sqm (watts) | 200 | |||
| Max Power/sqm(watts) | 600 | |||
| Brightness | 800cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 1.8-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 16 bit | |||
| Refresh frequency | 3840hertz | |||
| Driving mode | 1/43 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP30 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
Projects
2017, MPLED P6 outdoor led display assist for Senator Election of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
One- Stop Solution Service
1.3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.
2.Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.
3.7/24 online remote control service , and local engineer service within 8 hours contact.
4.Free technical training in factory.
5.MPLED engineers will fly to the site if you need local service.
6.Expanding market plan with professional MPLED team over 8 years experience.
7.Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries.
FAQ
Q1:What is the control system? How is it?
A:We use Nova Taurus Series asynchronous control system. Support cluster play and managementSupportAPP/PhoneWIFIIpad/Laptop/PC/Cloud control. It's very easy and convenient to control.
Q2:What is your best service?
A:One to one sales engineer to customer responsibility system. We will do:
1. Know your proiect and provide the best solution for it
2. Track your order and let you know each step and detail of it:
3. Teachyou how to install and use the screen;
4. Care the subsequent use of your screen and ensure vour after -sales service be well
Q3:How about your delivery time?
A:Generally. it will take 15 to 25 days after receiving your advance payment. The spe- cific delivery time depends on the items and the quantity of your order.
Q4:How about your Warranty Term?
A:2-5year warranty. Structure design,installation problem,program the screen. how to use the screen... don't worry,we have professional after-sale team to solve your any questions after you placed an order. And your exclu-sive sales engineer will also help you get over any problems.
