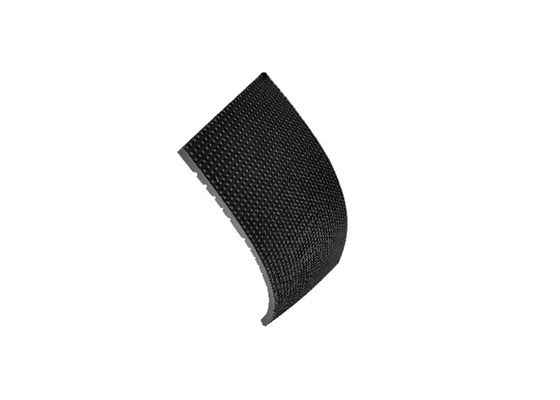

172x86 dots Flexible Round Shape Led Display screen SMD1515 1.8mm Pixel Pitch
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P1.8 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 7-10 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product Name | Round Shape Led Display | Module Size | 320x160mm |
|---|---|---|---|
| Module Pixels | 172x86 Dots | Cabinet Size | Customized |
| Input Voltage | 110 ～ 240 Volt,60Hz | Driving Mode | 1/43scan |
| High Light | SMD1515 Round Shape Led Display,172x86 Dots Round Shape Led Display,172x86 Dots round led display |
||
Product Description
172x86 Dots Flexible Round Shape Led Display Screen SMD1515 1.8mm Pixel Pitch
P1.8 P2.0 P2.5 P3 Indoor Flexible Led Screencustomized Round Shaped Led Module
Product description
1. The soft module is relative to the conventional LED display module. The conventional module is made of a rigid PCB board and a bottom shell mask, without any softness, and a rigid board. In the case of arcs and bends, either it cannot be used, or special processes such as corner cutting are required to make it, but the cost will increase a lot, and the process is not perfect.
2. The soft module LED display has the characteristics of thinness, light weight, small volume, high pixel density, displayable curved surface, and low installation cost.
3. It can realize the display needs of various screen shapes and provide a variety of screen sizes.
4. The 360-degree multi-screen soft module LED display has advantages that traditional flat-panel LED displays cannot match.
5. In terms of technology, since the screen is dynamically scanned and refreshed, fewer light-emitting devices are used, and the life span is correspondingly extended, and the cost is also greatly reduced.
| Pixel Pitch | 1.8mm | |||
| LED Lamp | SMD1515 | |||
| LED configuration | SMD 3 in 1 | |||
| Module Size | 320mm x 160mm | |||
| Module pixels | 172x86dots | |||
| Average Power/sqm (watts) | 200 | |||
| Max Power/sqm(watts) | 600 | |||
| Brightness | 1000cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 1.8-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 14 bit | |||
| Refresh frequency | 3840hertz | |||
| Driving mode | 1/43 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP31 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
Projects
2017, MPLED P6 outdoor led display assist for Senator Election of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
One- Stop Solution Service
1.3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.
2.Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.
3.7/24 online remote control service , and local engineer service within 8 hours contact.
4.Free technical training in factory.
5.MPLED engineers will fly to the site if you need local service.
6.Expanding market plan with professional MPLED team over 8 years experience.
7.Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries.
FAQ
Q1: What’s the function?
A1: Support various formats,like VGA,Video,AVI,DAT,etc.
Q2: LED display modules are generally expressed in PX,such as P2 P3 P4...P8 P10,what does this mean?
A2: P3 P4...P8 P10 means that the pixel pitch is 3mm 4mm...10mm,which determines resolution of a display.Pixel pitch smaller,led resolution higher.
Q3: What pixel pitch should I choose on my display?
A3: It’s mainly depends on the viewing distance,the size of the display screen,the desired effect the application scenario and the customer budget.
Q4: How to in stall?
A4: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.We can also send our engineers to the site to guide the installation if needed.
Q5: What about your quality?
A5: The quality of our display is excellent.We use the materials of high quality suppliers.strictly control the production process,and pass the multiple quality inspection to ensure that every product is qualified.
Q6: How about the warranty?
A6: Two years warranty
Q7: What kind of display we provide?
A7: We have indoor/outdoor/rental/Advertising/transparent and poster LED display for your choice.
