Giant Outdoor LED Displays screen SMD2727 landmark billboards
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P5.9 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 7-10 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product Name | Outdoor Giant Led Screen | Viewing Angle | H:160°, V:120° |
|---|---|---|---|
| Brightness | 6000cd/㎡ | Ingress Protection | IP65 |
| Operating Temperature | ﹣20 ～﹢60 ℃ | Operating Humidity | 10％ ～ 90％ |
| High Light | SMD2727 Outdoor LED Displays Screen,SMD2727 outdoor giant led screen,SMD2727 Landmark Billboards |
||
Product Description

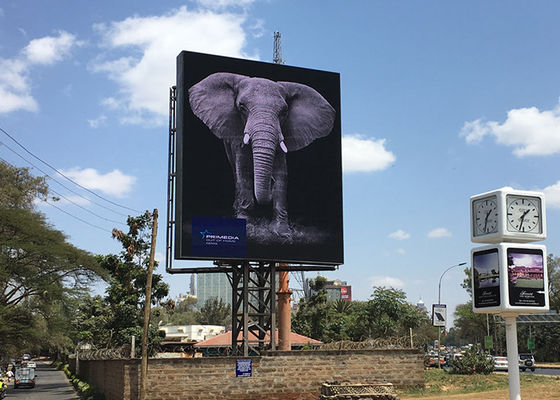

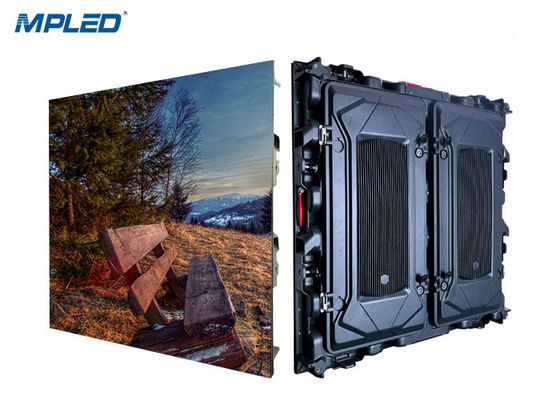

Giant Outdoor LED Displays Screen SMD2727 Landmark Billboards
Outdoor giant led screen landmark billboardss treet view billboards digital billboards
Product presentation
1. Multi-Purpose Panel for More Application Scenarios.
2. Outdoor and indoor advertising, digital billboards, advertising companies,sports halls, fields, playgrounds,school church,architecture and social projects, information systems in cities.
3. With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
4. It can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.
5. By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.
6. From the overall layout of PCB design, the product strictly follows the design standards of EMC testing, and has the performance that can withstand higher standards of electromagnetic compatibility testing. Every detail is to improve the overall stability of the display device.
7. The refresh rate of the whole screen can reach more than 3840Hz, the gray level can be adjusted arbitrarily within 65536, and the video can be played,High definition, can achieve the column and column elimination, no stripes, no caterpillar and other phenomena.The brightness reaches above 6000nit
8. Energy-saving, thin and worry-free, as light as 30kg/㎡ and as thin as 108mm, saving 50% of installation and transportation costs.
| Pixel Pitch | 5.9mm | |||
| LED Lamp | SMD2727 | |||
| LED configuration | SMD 3 in 1 | |||
| Module Size | 320mm x 160mm | |||
| Module pixels | 54x27dots | |||
| Cabinet Size(WxHxD)(mm) | 960x960x108mm | |||
| Module Quantity(pcs) | 18 | |||
| Pixel Density | 162x162 dots | |||
| Cabinet pixels | 28561 dots | |||
| Cabinet Weight (kg) | 28 | |||
| Average Power/sqm (watts) | 200 | |||
| Max Power/sqm(watts) | 600 | |||
| Brightness | 6000cd/㎡ | |||
| Gray scale | 14 bit | |||
| Refresh frequency | 1920hertz | |||
| Driving mode | 1/9 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP65 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
One- Stop Solution Service
1. 3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.
2. Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.
3. 7/24 online remote control service , and local engineer service within 8 hours contact.
4. Free technical training in factory.
5. MPLED engineers will fly to the site if you need local service.
6. Expanding market plan with professional MPLED team over 8 years experience.
7. Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries.
FAQ
Q1: Such as P2 P3 P4..... P8, P10, what does this mean?
A: P3 P4..... P8,P10 means that the pixel pitch is 3mm 4mm.... 10mm, which determines resolution of a display .Pixel pitch is smaller, led display resolution is higher.
Q2: What pixel pitch should I choose on my display?
A: Using the MG PRO screen, it is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display ,What kind of information do I have to offer you?
A: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements,then I can provide you with a detailed list of quotations.
Q4: How to install?
A: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5: What about your quality?
A: The quality of our display is excellent. We use the materials of high quality suppliers in the world,strictly control the production process, and pass the multiple quality inspection to ensure that every product is qualified.
Q6: What about the warranty?
A: Two year warranty
Q7: What about the lead time?
A: Orders less than 50 square meter display, lead time is 15 working days.
Q8: Can I order a sample?
A: Yes,We welcome customers to order samples to check our product quality of our products and service.
