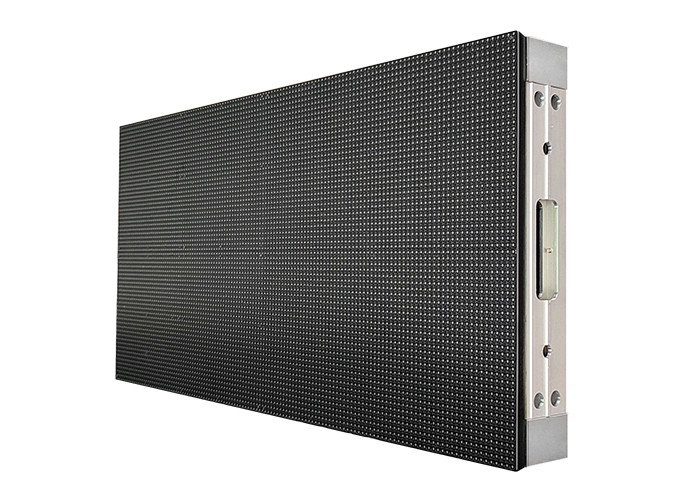

Kn Light HD P3 Fixed Indoor Led Display Video Wall 320x160mm
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P2.5 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 7-10 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product Name | Fixed Indoor Led Display | Viewing Angle | H:160°, V:120° |
|---|---|---|---|
| Operating Temperature | ﹣20 ～﹢60 ℃ | Ingress Protection | IP30 |
| Screen Dimension | Customized | Drive Mode | 1/26 Scan |
| High Light | 320x160mm P3 Fixed Indoor Led Display,320x160mm Fixed Indoor Led Display,SMD2121 p3 led screen |
||
Product Description
Kn Light HD P3 Fixed Indoor Led Display Video Wall 320x160mm
Kn Light HD P3 Fixed Indoor Led Display Video Wall Custom Size
Product description.
1. Wireless design on the back for fire and rodent prevention.
2. cabinet size, cabinet size can be customized according to project demands.
3. The wide viewing angle allows clear visions from different positions.
4. 1 + 1 backup--The main and standby power supply are installed in the cabinet, which can switch automatically if malfunction happens.
5. The contrast through intelligent recognition of the screen without changing the electric current of the entire screen. The contrast between the brightness and darkness of the screen is more prominent and the colors are more vivid.
6. It can not only help users to improve their work efficiency, but also fully enhance the experience of using LED screens.
| Pixel Pitch | 3.07 mm | |||
| LED Lamp | SMD2121 | |||
| IC | ICN2153s | |||
| Module Size | 320x160mm | |||
| Module pixels | 104x52dots | |||
| Cabinet Size(WxHxD)(mm) | 960x960mm | |||
| Module Quantity(pcs) | 18 | |||
| Cabinet resolution WxH | 312x312dots | |||
| Cabinet Material | Iron | |||
| Cabinet Weight (kg) | 27 | |||
| Average Power/sqm (watts) | 165 | |||
| Max Power/sqm(watts) | 550 | |||
| Brightness | 800cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 3-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 16 bit | |||
| Refresh frequency | 3840hertz | |||
| Driving mode | 1/26 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP30 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
One- Stop Solution Service
1. 3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.
2. Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.
3. 7/24 online remote control service , and local engineer service within 8 hours contact.
4. Free technical training in factory.
5. MPLED engineers will fly to the site if you need local service.
6. Expanding market plan with professional MPLED team over 8 years experience.
7. Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries.
FAQ
FAQ:
1. Payment Terms?
We accept payment by bank transfer (T/T) , Credit Card on Alibaba, or other payment terms you want that can contact us, payment should be paid before delivery .
2. Shipment Way?
You can choose to use sea shipment or air freight or express by DHL or such as this(UPS,FEDEX,TNT,EMS, ARAMEX).We can help you to book ship or arrange the shipment, or you can use your own shipping agent.
3.Warranty?
We offer a 3 year warranty service according different order, and to provide technical guidance.We have a professional service team; They are always online waiting to serve you.
During the warranty period, most of damaged parts could be replaced free of charge.
4.Packaging ways for our led screen?
We provide Flight case or wooden case for led display board. Customers can freely choose from them. But in any case, we will both ensure the use of appropriate packaging to protect led display board safety.
5. Delivery time?
It will depond on your project size
