216 Inch Flex Led Video Wall P1.5 SMD1212 Custom Led Display
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P1.53 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 7-10 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product Name | P1.5 | Cabinet Size | 640x480mm |
|---|---|---|---|
| Module Size | 320*160mm | Operating Humidity | 10％ ～ 90％ |
| Ingress Protection | IP31 | Input Voltage | 110 ～ 240 Volt,60Hz |
| High Light | 320*160mm Flex Led Video Wall,SMD1212 Flex Led Video Wall,SMD1212 Custom Led Display |
||
Product Description

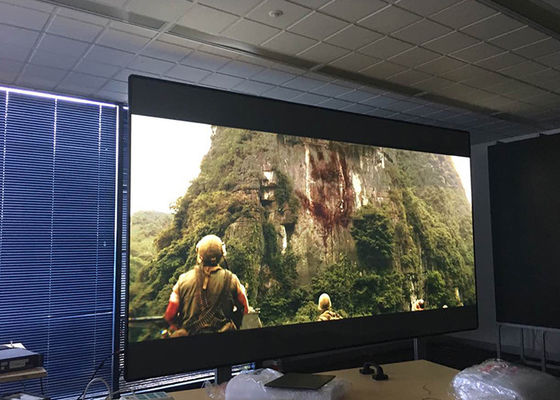

216 Inch Flex Led Video Wall P1.5 SMD1212 Custom Led Display
P1.25 P1.5 135 163 216 Inch Mobile Led Conference Machine TV Price
Product description
1. User-friendly interface and remote-control, as simple as using a TV Plug and play, one button to turn on/off.
2. Delivering the ultimate meeting experience.
3. All-in-One Design Embedded system controller, PSU, audio No external devices required
Hidden cable design, elegant simplicity
4. mobile phone and PAD screen. The screen shares up to 4 devices at one time wirelessly, allowing creativity display simultaneously. The mobile phone/PAD screen can work as a writing board, enabling online editing.
5. Every dark or bright detail looks vivid and clear with its 110% NTSC cinematic level color gamut and 350nits brightness.
6. It keeps the screen surface temperature ≤40°C and less than 25dB mute technology. Also, it pre-loaded four scene modes: standard/ cinematic/conference/soft light to meet the needs of different scenarios.
| Pixel Pitch | 1.5mm | |||
| LED Lamp | SMD1212 | |||
| IC | ICN2153 | |||
| Module Size | 320x160mm | |||
| Module pixels | 209x105dots | |||
| Cabinet Size(WxH)(mm) | 680x480mm | |||
| Module Quantity(pcs) | 6 | |||
| Cabinet resolution WxH | 418x314dots | |||
| Cabinet Material | Aluminum die casting | |||
| Cabinet Weight (kg) | 7 | |||
| Average Power/sqm (watts) | 200 | |||
| Max Power/sqm(watts) | 600 | |||
| Brightness | 800cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 1.8-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 16 bit | |||
| Refresh frequency | 3840hertz | |||
| Driving mode | 1/43 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP30 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
Projects
2017, MPLED P6 outdoor led display assist for Senator Election of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
One- Stop Solution Service
1.3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.
2.Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.
3.7/24 online remote control service , and local engineer service within 8 hours contact.
4.Free technical training in factory.
5.MPLED engineers will fly to the site if you need local service.
6.Expanding market plan with professional MPLED team over 8 years experience.
7.Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries.
Sole Agent
MPLED cooperated with local team to expand Led display business, and signed sole agent in Saudi Arabia, Egypt, New Zealand, Germany and Indonesia.
Also had local installation and maintenance team in Cambodia, France, Middle East, Indonesia, United States, South Korea, Ghana.
FAQ
Q: Are you manufacturer or trade company?
A: We are manufacturer,
Q: Do you offer OEM&ODM service?
A: Yes, we do.
Q: What’s the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS certification.
Q: Which place will use ITC equipment?
A: Our products are widely used in International Conferences, Governments,Banks,Churches, Highways,Airports,Parliaments,Education institutes,Hotel,Private corporate conference hall and so on.
Q: What project did you have done in overseas?
A: 2017, MPLED P6 outdoor led display assist for Senator Election of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
