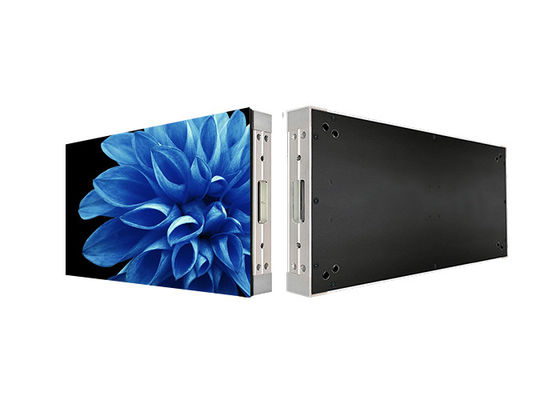

Nationstar Gold Thread Front Service P2.5 Indoor Led Large Screen Display
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P2.5 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 7-10 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product Name | Indoor Led Large Screen Display | Cabinet Size | 960x960mm |
|---|---|---|---|
| Pixels | P2.5 | Input Power Frequency | 50 Or 60 Hertz |
| Blind Spot Rate | ＜1/10000 | Signal Input Format | HDMI,DVI,SDI,VGA Etc. |
| High Light | P2.5 Indoor Led Screen Display,960x960mm Indoor LED Displays,SMD2121 Indoor Led Display |
||
Product Description
Nationstar Gold Thread Front Service P2.5 Indoor Led Large Screen Display
Product description
1. Modules, receiving cards, and cables can be maintained from the front, greatly reducing labor and steel structaure costs.
2. The contrast through intelligent recognition of the screen without changing the electric current of the entire screen. The contrast between the brightness and darkness of the screen is more prominent and the colors are more vivid.
3. Cabinet size, cabinet size can be customized according to project demands.
4. Cabinet, excellent heat dissipation effectively improve the reliability of electronic components.
5. Perfect design of lamp board PCB, high-end IC, easy to achieve high gray, refresh, brightness.
6. Good heat dissipation, no noise, energy saving and environmental protection.
| Pixel Pitch | 2.5 mm | |||
| LED Lamp | SMD2121 | |||
| IC | ICN2153s | |||
| Module Size | 320x160mm | |||
| Module pixels | 128x64 dots | |||
| Cabinet Size(WxHxD)(mm) | 960x960mm | |||
| Module Quantity(pcs) | 9 | |||
| Cabinet resolution WxH | 384x384 dots | |||
| Cabinet Material | Iron | |||
| Cabinet Weight (kg) | 28 | |||
| Average Power/sqm (watts) | 174 | |||
| Max Power/sqm(watts) | 580 | |||
| Brightness | 1200cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 2.5-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 16 bit | |||
| Refresh frequency | 3840hertz | |||
| Driving mode | 1/32 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP30 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
One- Stop Solution Service
1. 3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.
2. Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.
3.7/24 online remote control service , and local engineer service within 8 hours contact.
4. Free technical training in factory.
5. MPLED engineers will fly to the site if you need local service.
6. Expanding market plan with professional MPLED team over 8 years experience.
7. Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries.
Senior Engineers
Over 17 years experience electronic engineer to support our customized solutions for indoor and outdoor led display project.
Over 12 years experience structural engineer to support our structure drawings .
10 years experience pre-sale and after-sale engineer for online service and technology training.
Sole Agent
MPLED cooperated with local team to expand Led display business, and signed sole agent in Saudi Arabia, Egypt, New Zealand, Germany and Indonesia.
Also had local installation and maintenance team in Cambodia, France, Middle East, Indonesia, United States, South Korea, Ghana.
FAQ
Q1:What is the control system? How is it?
A:We use Nova Taurus Series asynchronous control system. Support cluster play and managementSupportAPP/PhoneWIFIIpad/Laptop/PC/Cloud control. It's very easy and convenient to control.
Q1:What is your best service?
A:One to one sales engineer to customer responsibility system. We will do:
1. Know your proiect and provide the best solution for it
2. Track your order and let you know each step and detail of it:
3. Teachyou how to install and use the screen;
4. Care the subsequent use of your screen and ensure vour after -sales service be well
5...6...etc.
Q1:How about your delivery time?
A:Generally. it will take 15 to 25 days after receiving your advance payment. The spe- cific delivery time depends on the items and the quantity of your order.
Q1:How about your Warranty Term?
A:2-5year warranty. Structure design,installation problem,program the screen. how to use the screen... don't worry,we have professional after-sale team to solve your any questions after you placed an order. And your exclu-sive sales engineer will also help you get over any problems.
