Die Casting Aluminium Cabinet Smd Panel Outdoor Rental LED Display Waterproof
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P3.91 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 7-10 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product Name | Outdoor Rental LED Display | Pixels | 3.91mm |
|---|---|---|---|
| Screen Dimension | 500x1000mm | Brightness | 1200cd/m² |
| Warranty | 2 Years | ||
| High Light | Smd Panel Outdoor Rental LED Display,500x1000mm Outdoor Rental LED Display,1200cd Outdoor Waterproof LED Display |
||
Product Description

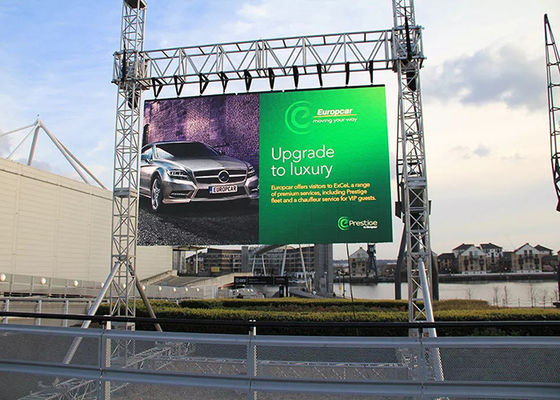

Die Casting Aluminium Cabinet Smd Panel Outdoor Rental LED Display
product presentation
1. 500*500mm and 500*1000mm standard cabinet size Ultra-Light die-casting aluminum. ultra-thin thickness with 80mm.For easy transport and Portable.
2. Adopts magnetic adsorption LED panels with ultra thin design, broadside waterproof interface and installation knob.Fast replacement, assemble, disassemble with safety protection.
3. High-intensity frame, strong load capacity.
4. Hard Connection Design with detachable Power box and HUB Poard,
5.Advanced Inner and outer curve lock systems,Two side locks, with angles of -7.5 ° , -5°, -2.5°, 0°,+2.5°, +5°, 7.5°, +10 ° screen
6. Wind-resistant Design wind bracing for fresh gale level 8 when hanged 10m high
| Pixel Pitch | 3.91mm | |||
| LED Lamp | SMD2121 | |||
| IC | ICN2153 | |||
| Module Size | 250x250mm | |||
| Module pixels | 64x64 dots | |||
| Cabinet Size(WxHxD)(mm) | 500x1000x88 mm | |||
| Module Quantity(pcs) | 8 | |||
| Cabinet resolution WxH | 128x256dots | |||
| Cabinet Material | Aluminum die casting | |||
| Cabinet Weight (kg) | 14 | |||
| Average Power/sqm (watts) | 200 | |||
| Max Power/sqm(watts) | 650 | |||
| Brightness | 1200cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 3.91-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 16 bit | |||
| Refresh frequency | 1920hertz | |||
| Driving mode | 1/16 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP30 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
FAQ
Q: Are you manufacturer or trade company?
A: We are manufacturer,
Q: Do you offer OEM&ODM service?
A: Yes, we do.
Q: What’s the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS certification.
Q: Which place will use ITC equipment?
A: Our products are widely used in International Conferences, Governments,Banks,Churches, Highways,Airports,Parliaments,Education institutes,Hotel,Private corporate conference hall and so on.
Q: What project did you have done in overseas?
A: 2017, MPLED P6 outdoor led display assist for Senator Election of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
