High Brightness P3.91 Stage Background LED Screen Moistureproof IP65 Protection Grade
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P3.91 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 7-10 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product Name | P3.91 Outdoor Led Display | Warranty | 2 Years |
|---|---|---|---|
| Cabinet Size | 500x500mm | Name Of Commodity | Video Led Wall |
| Brand Naming | Rental Led Screen | Brand Name | Stage Led Screen |
| High Light | IP65 Background Led Screen,P3.91 Background Led Screen,moistureproof stage background led display |
||
Product Description

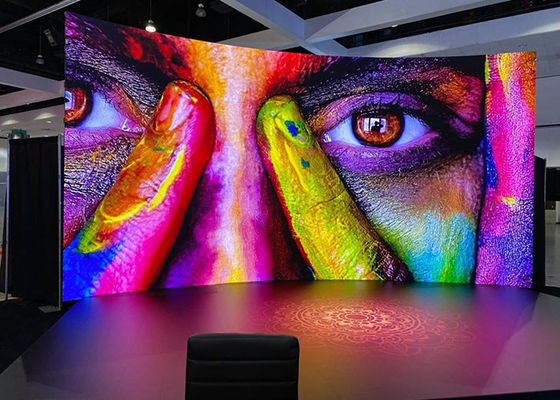

Quick Installation Front Service Outdoor Concert Stage Background Led Display
Product presentation
1. Select lamp bead: use high contrast black lamp to ensure high definition display effect
2. Outdoor special: front and rear IP65 protection grade, rain proof, moistureproof and dustproof, floor tile is suitable
3. Drive IC: pulse width modulation PWM+ dynamic energy saving DES technology, to ensure high brush high ash; Effective energy saving and cooling, protect electronic components
4. Full view mask: up, down, left and right view, can get perfect visual effect
Installation
Internal and external arc installation;
Floor tile installation;
Lifting and mounting are available;
(such as: auto show, concert, large-scale sports competition, etc
| Pixel Pitch | 3.91mm | |||
| LED Lamp | SMD1921 | |||
| IC | ICN2153 | |||
| Module Size | 250x250mm | |||
| Module pixels | 64x64dots | |||

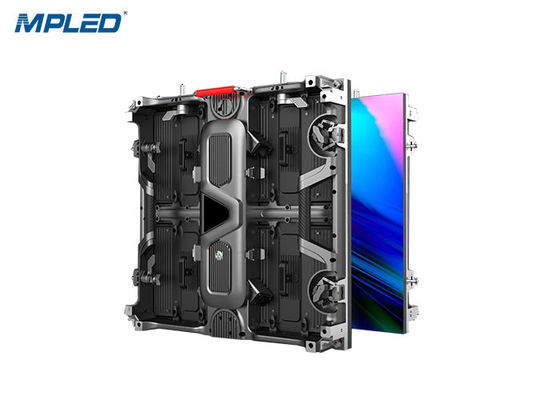

| Cabinet Size(WxHxD)(mm) | 500x500x88 mm | |||
| Module Quantity(pcs) | 4 | |||
| Cabinet resolution WxH | 128x128dots | |||
| Cabinet Material | Aluminum die casting | |||
| Cabinet Weight (kg) |
7.5 |
|||
| Average Power/sqm (watts) | 200 | |||
| Max Power/sqm(watts) | 650 | |||
| Brightness | 4500-5000cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 3.91-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 16 bit | |||
| Refresh frequency | 3840hertz | |||
| Driving mode | 1/16 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP65 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
FAQ
Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs, you just need to provide the requirements details.
Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.
Q3:What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU...
Q4: How about your warranty?
A: Different product offer different time frame warranty, but all product here we offer 2year at least warranty.
Q5: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
Q6: What project did you have done in overseas?
A: 2017, MPLED P6 outdoor led display assist for Senator Election of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
