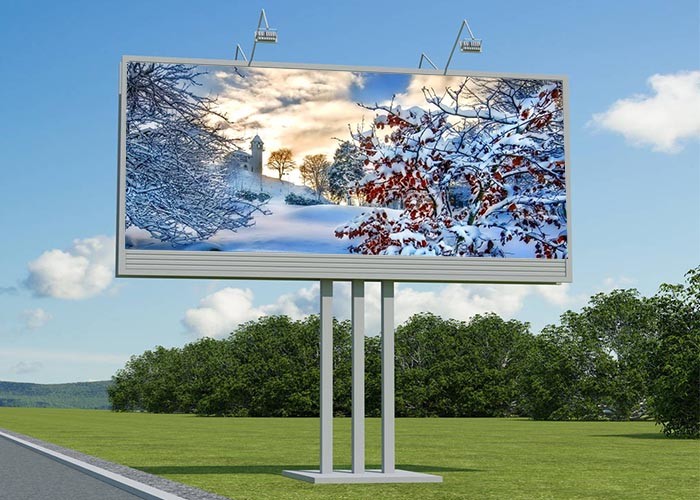

SMD 3 In 1 Digital Advertising Billboard 10mm Pixel Pitch Thin Panel
Place of Origin | China |
---|---|
Brand Name | MPLED |
Certification | CE/ROHS/FCC/ISO/UL |
Model Number | P10 |
Minimum Order Quantity | 1 |
Price | USD+608-729+pcs |
Packaging Details | flight case/ wooden case/ carton/ it is up to you |
Delivery Time | 7-10 working days after receive your payment |
Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability | 3000sqm |
Product Name | Outdoor Led Display | Product | Digital Advertising Billboard |
---|---|---|---|
Name | Led Board Display | Product Center | Led Wall Display |
Warranty | 2 Years | ||
High Light | SMD Digital Advertising Billboard,Digital Advertising Billboard 10mm Pitch,Magnesium alloy led digital billboard |
Front Rear Module Maintenance P6 P8 P10 digital advertising billboard
Product description
1. Support full front side wall mount/front service.
2. The module, power supply and control card can also be removed directly from the front without leaving a maintenance channel
3. (450mm-650mm service channel should be reserved for the conventional outdoor LED display, which is convenient for installation and subsequent maintenance. No need to leave service channel before maintenance, which reduces the thickness of the whole screen).
4. The 304 stainless steel screws and locks, the aluminum panel, and the double protection of strongly-insulated wires wrapped in fiberglass, thereby ensuring longer service life of our products.
5. Thin Panel,Convenient Transport,Save Transport Cost.
6. One screen,virous pixel pitch options.Just replace LED modules to update led screen with higher reolution one after many years.
7. Magnesium Alloy 960mm Series LED scren is multi-functional. you can use fixed installation, rental installation and perimeter installation. standard cabinet structure is for Fixed installation LED display usage, while adding flying bar, you can use it as Rental LED display, while adding soft moudle mask, rubber cushion and back bracket, you can use it as sports perimeter LED display.
8. By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.
Pixel Pitch | 10mm | |||
LED Lamp | SMD3535 | |||
LED configuration | SMD 3 in 1 | |||
Module Size | 320mm x 160mm | |||
Module pixels | 32x16dots | |||
Cabinet Size(WxHxD)(mm) | 960x960x101mm | |||
Module Quantity(pcs) | 18 | |||
Pixel Density | 96x96dots | |||
Cabinet pixels | 9216 dots | |||
Cabinet Material | Magnesium alloy | |||
Cabinet Weight (kg) | 25 | |||
Average Power/sqm (watts) | 200 | |||
Max Power/sqm(watts) | 600 | |||
Brightness | 7000-7500cd/㎡ | |||
Viewing Angle | H:160°, V:120° | |||
Best Viewing Distance | 10-100 meters | |||
Brightness Control | 256 level | |||
Gray scale | 14 bit | |||
Refresh frequency | 1920hertz | |||
Driving mode | 1/2 scan | |||
Input power frequency | 50 or 60 Hertz | |||
Input Voltage | 110 ~ 240 Volt,60Hz | |||
Blind spot rate | <1/10000 | |||
Lifetime at 50% brightness | 100000 hours | |||
Ingress Protection | IP65 | |||
Operating temperature | ﹣20 ~﹢60 ℃ | |||
Operating humidity | 10% ~ 90% | |||
Control distance | CAT5 cable:<100 m; Single mode fiber:<10 km | |||
Signal input format | HDMI,DVI,SDI,VGA etc. |
