Indoor P2 P2.5 P3 Curved LED Display P4 P5 Soft Module Flexible Screen
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P2.5 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 7-10 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Brightness | 1200cd/m² | Gray Scale | 16 Bit |
|---|---|---|---|
| Product Name | Pvc Flexible Panel Moulding | Product | Screen Flexible |
| Name | Flexible Led Curtain Display | The Name Or Description Of A Commodity | Pantalla Led Flexible Exterior |
| High Light | P2.5mm Curved LED Display,Flexible Curved LED Display,P3 Flexible LED Displays |
||
Product Description
Curved LED Display Indoor P2 P2.5 P3 P4 P5 Soft LED Module Curved Flexible Led Display Screen
Product description
1. High grayscale, high refresh, more high-definition energy-saving images.
2. There are many types of products, and there are many models to choose from.
3. In the process of splicing special-shaped screens, seamless splicing is realized at corners and arc splicing points, which is simple to install and easy to maintain.
4. Each pixel uses 1 red, 1 green and 1 blue three-in-one surface mount light emitting tube strong magnet, which has large magnetic force, stable adsorption, high flatness, and avoids the risk of module falling off!
5. The soft shell prevents static electricity, and the magnet is fully hollowed out, with large magnetic force and high flatness.

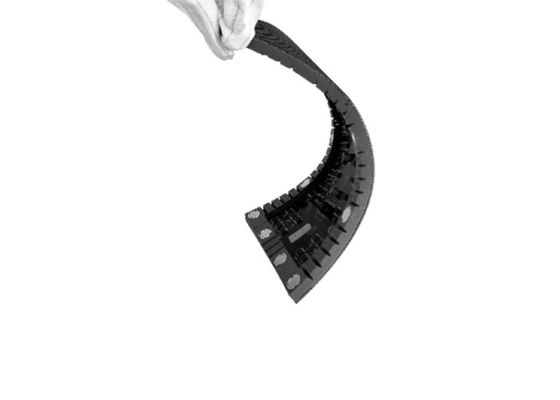

6. The difference is that a flexible PCB and a bottom shell mask are used, which makes the module extremely soft and can be folded at 120 degrees.
| Pixel Pitch | 2.5mm | |||
| LED Lamp | SMD2121 | |||
| LED configuration | SMD 3 in 1 | |||
| Module Size | 320mm x 160mm | |||
| Module pixels | 128x64 dots | |||
| Average Power/sqm (watts) | 174 | |||
| Max Power/sqm(watts) | 580 | |||
| Brightness | 1200cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 2.5-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 14 bit | |||
| Refresh frequency | 3840hertz | |||
| Driving mode | 1/32 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP31 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
FAQ
Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs, you just need to provide the requirements details.
Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.
Q3: What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU...
Q4: How about your warranty?
A: Different product offer different time frame warranty, but all product here we offer 2year at least warranty.
Q5: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
