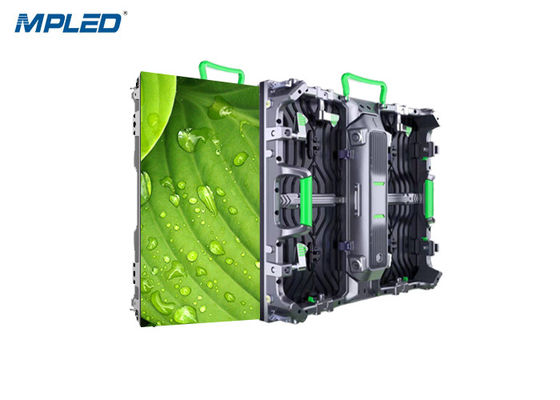

Slim Stage Rental LED Display Stage Background SMD1921 LED Video Wall
| Place of Origin | Shenzhen China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P3.91 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 7-10 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product | Dance Floor Panels | The Name Or Description Of A Commodity | Led Stage Screen |
|---|---|---|---|
| Warranty | 2 Years | Cabinet Size | 500x1000x88 Mm |
| Gray Scale | 16 Bit | LED Lamp | SMD1921 |
| Pixel Pitch | 3.91mm | Ingress Protection | IP65 |
| Refresh Frequency | 3840hertz | Cabinet Weight (kg) | 14 |
| High Light | Slim Stage Rental LED Display,Stage Rental LED Display IP65,SMD1921 LED Video Wall |
||
Product Description
Ultra Thin 500x1000mm Diecasting Cabinet Portable Led Wall Front Service P3.9 Outdoor Led Display Screen
Features:
1. 500mm x 500mm and 500mm x 1000mm cabinets can be used together
2. only 7kg for 500mm x 500mm cabinet, and 13kg for 500mm x 1000mm cabinet
3. Have protection for corner leds
4. Quick locks and fixed pin to help quick installation
| Pixel Pitch | 3.91mm | |||
| LED Lamp | SMD1921 | |||
| IC | ICN2153 | |||
| Module Size | 250x250mm | |||
| Module pixels | 64x64dots | |||
| Cabinet Size(WxHxD)(mm) | 500x1000x88 mm | |||
| Module Quantity(pcs) | 8 | |||
| Cabinet resolution WxH | 128x256dots | |||
| Cabinet Material | Aluminum die casting | |||
| Cabinet Weight (kg) | 14 | |||
| Average Power/sqm (watts) | 200 | |||
| Max Power/sqm(watts) | 650 | |||
| Brightness | 4500-5000cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 3.91-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 16 bit | |||
| Refresh frequency | 3840hertz | |||
| Driving mode | 1/16 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP65 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
Why Choose MPLED
One of the TOP LED Display Manufacturers in Shenzhen, China.150000sqm floorspace, 300+employees, production capacity over 3000sqm/month.
Professional R&D Dept
--Owning the latest LED tech
Engineer Team
--Provide with perfect after-sales serviceTurnkey Solution
--MPLED concentrate on more than 20 LED display solutions, provide high quality,high energy efficiency and long lifespan LED displays which perfectly match your demands.
One-Stop Solution
--Installation structure, engineering drawing, power solution, control system, audiosystem, lighting system, MPLED engineer team 24/7 always online for you.
Reliability
--Core team with 20-year experience,9,600 successful projects in the world, thou-sands of high praise from clients.MPLED always support you with the best project!
