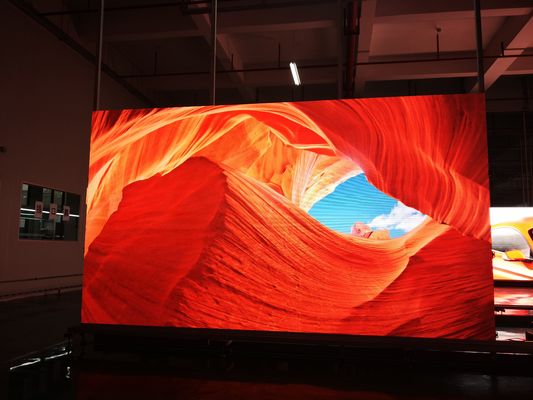

Small Pitch Indoor P2.5 LED Video Wall Panel 1200cd/M2 LED Display Screen

Place of Origin China
Brand Name MPLED
Certification CE/ROHS/FCC/ISO/UL
Model Number P2.5
Minimum Order Quantity 1
Price Negotiable
Packaging Details flight case/ wooden case/ carton/ it is up to you
Delivery Time 7-10 working days after receive your payment
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000sqm
Product Details
Product Name Led Screen P2.5 Max Power/sqm(watts) 580
Best Viewing Distance 2.5-200 Meters Module Size 320x160mm
Module Quantity(pcs) 9 Kg Refresh Frequency 3840hertz
Brightness 1200cd/㎡ Ingress Protection IP30
High Light

IP30 LED Video Wall Panel

,

1200cd/m2 Led Video Wall Panel

,

Small Pitch LED Display Screen

Leave a Message
Product Description

indoor P2.5 full color HD led display screen Custom size



Product description



1.Lightweight Design,it is just 7.5kg.80mm,Just one person can be easy to dismantle and install.



2. Calibrate data automatically, No need to re-calibratedata on the new modules while doing the replacement.Just plug and play.



3.Tool-free to do the maintenance, save time and labor cost.



4.The PCB board thickness of is 1.6mm.Compared with the ordinary PCB board, the circuit layout is more reasonable, with better heat dissipation effect, and more stable working condition.



5.Ultra thin,super slim and hanging design make it easy and fast for assemble and disassemble.



Pixel Pitch 2.5 mm
LED Lamp SMD2121
IC ICN2153s
Module Size 320x160mm
Module pixels 128x64 dots
Cabinet Size(WxHxD)(mm) 960x960mm
Module Quantity(pcs) 9
Cabinet resolution WxH 384x384 dots
Cabinet Material Iron
Cabinet Weight (kg) 28
Average Power/sqm (watts) 174
Max Power/sqm(watts) 580
Brightness 1200cd/㎡
Viewing Angle H:160°, V:120°
Best Viewing Distance 2.5-200 meters
Brightness Control 256 level
Gray scale 16 bit
Refresh frequency 3840hertz
Driving mode 1/32 scan
Input power frequency 50 or 60 Hertz
Input Voltage 110 ~ 240 Volt,60Hz
Blind spot rate <1/10000
Lifetime at 50% brightness 100000 hours
Ingress Protection IP30
Operating temperature ﹣20 ~﹢60 ℃
Operating humidity 10% ~ 90%
Control distance CAT5 cable:<100 m; Single mode fiber:<10 km
Signal input format HDMI,DVI,SDI,VGA etc.
Operating system Windows (2000/XP/Vista/7/8/10)



Small Pitch Indoor P2.5 LED Video Wall Panel 1200cd/M2 LED Display Screen 0

Small Pitch Indoor P2.5 LED Video Wall Panel 1200cd/M2 LED Display Screen 1





One- Stop Solution Service



1. 3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.



2. Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.



3.7/24 online remote control service , and local engineer service within 8 hours contact.



4. Free technical training in factory.



5. MPLED engineers will fly to the site if you need local service.



6. Expanding market plan with professional MPLED team over 8 years experience.



7. Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries.





FAQ

Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs, you just need to provide the requirements details.



Q2: Are you manufacturer or trade company?
A: We are manufacturer.



Q3: Which place will use ITC equipment?
A: Our products are widely used in International Conferences, Governments,Banks,Churches, Highways,Airports,Parliaments,Education institutes,Hotel,Private corporate conference hall and so on.



Q4: How long is your warranty?
A: 2 years, we will be responsible for free repairment or replacement for defective parts.



Q5: What will you do if we have problems related to installation, configuration and use?
A: Our after-sale service team will solve all the problems, until the screen can work normally.



Q6:  What is your terms of delivery?
A: EXW, FOB, CIF, CFR, DDP, DDU, customer specified freight forwarder or negotiable mode of transport.
