5V GOB Poster LED Display Mirror Screen P1.86mm Semi outdoor
| Place of Origin | shenzhen,China |
|---|---|
| Brand Name | H&S |
| Certification | CE ROHS FCC |
| Model Number | P1.86 |
| Minimum Order Quantity | 1pcs |
| Packaging Details | Fight case/Wooden case/Honeycomb Box |
| Delivery Time | 12-20work days |
| Payment Terms | T/T, L/C |
| Supply Ability | 100,PCS,1Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Poster LED Display | Application | Indoor, Semi-outdoor |
|---|---|---|---|
| Pixels | 1.86mm | Module Size | 320*160mm |
| Produce Size | 640*1920mm | Refresh Rate | 3840Hz |
| Best Visual Distance (M) | 1.8 | Brightness | ≥1000cd/㎡ |
| Cabinet Weight (Kg) | 60 | Warranty | 2 Years |
| Highlight | GOB Poster LED Display,P1.86mm Poster LED Display,P1.86mm led poster screen |
||
Product Description

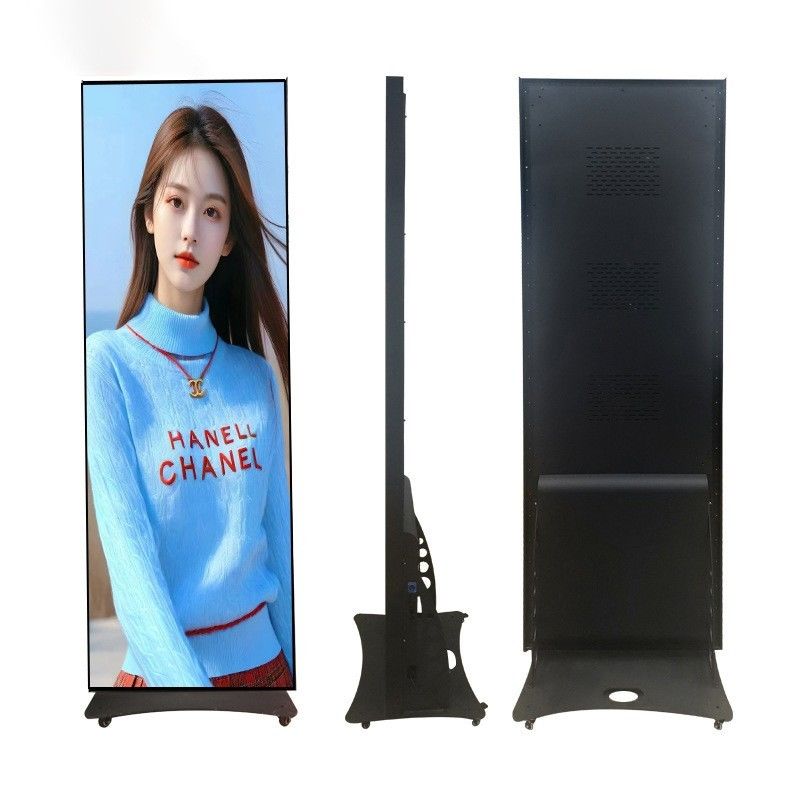

LED Poster Display (GOB LED)

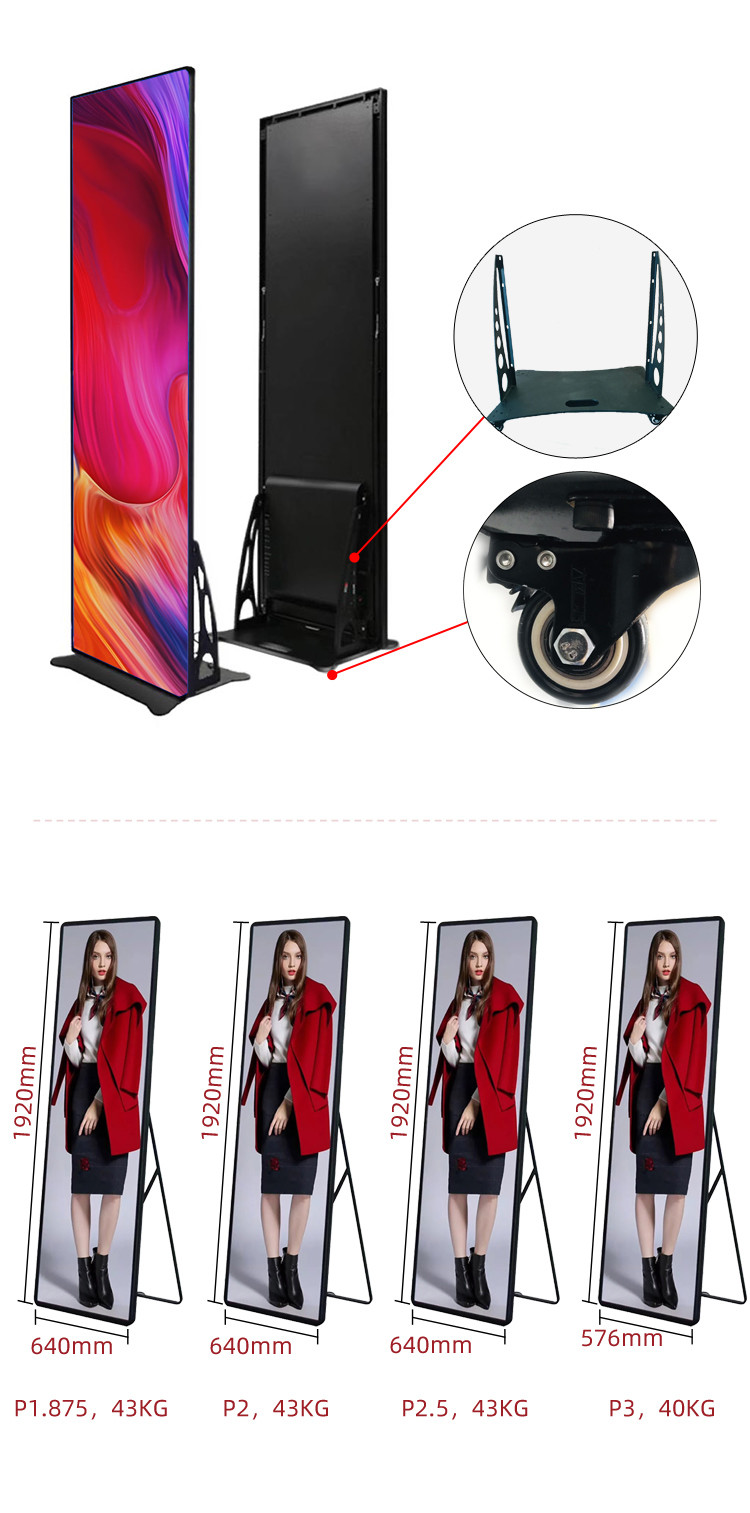

Hot Size: 640x1920mm
Pixel Pitch:P1.8/P2/P2.5
Application: Indoor
Feature
. Move at any time, can be combined and displayed.
. Plug and play, ultra-thin and lightweight,very convenient.
. Multimedia playback, USB, LAN, Wifi, supports multiple playback modes such as pictures and videos.
. One-key split screen, multiple display modes.
. The heat dissipation hole design has good heat dissipation effect.
Parameter:
| P1.86 LED Poster Display Parameter | |||||
| (1)Parameter of Pixel | |||||
| Number | Item | Parameter | |||
| 1 | Pixel Pitch | 1.86mm | |||
| 2 | Pixel composition | 1R1G1B | |||
| (2)Parameter of Chip | |||||
| Number | Item | Wave length | Brightness | Specification | |
| 1 | Red Chip | 620-624nm | 82-102mcd | SMD 1515 Lamp | |
| 2 | Green Chip | 521-525nm | 220-275mcd | ||
| 3 | Blue Chip | 468-472nm | 48-60mcd | ||
| (3)Display Technical Parameters | |||||
| Lamp | LED Specification | SMD 1515 | |||
| Module | Module Size | W320mm*H160mm | |||
| Module Resolution | W172 dots*H86 Dots | ||||
| Scanning Mode | 43s | ||||
| Working Voltage | DC 5V | ||||
| Module Power | 13W | ||||
| Cabinet | Standard Size | 640*1920mm | |||
| Ingress Protection | IP40 (Front) /IP40 ( Rear) | ||||
| Cabinet Resolution | W355dots *H1.66dots | ||||
| Cabinet Material | Aluminum | ||||
| 4 | LED Driver | Constant Current | |||
| 5 | Pixel/㎡ | 288888Dots/ M2 | |||
| 7 | Display Brightness | Maximum 1000cd/ M2 | |||
| 8 | Viewing Angle | Horizontal 140° Vertical 140° | |||
| 9 | Best Viewing Distance | ≥1.8m | |||
| 10 | Grey Level | Red,Green,Blue each 256 Levels of Grey | |||
| 11 | Display Color | 16.7M | |||
| 12 | Color Quality | 32 Bits | |||
| 13 | Frame Changing Frequency | >60(Frames)/s | |||
| 14 | Refresh Rate | >3840HZ | |||
FAQ
Q1: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q2: Do you offer guarantee for the led display products?
A: Yes, we offer 2 year warranty for our products in copper wire led and 3 years warranty for our gold wire product.
Q3: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can reply on us
Q4: Do you have any MOQ limit for led display order?
A: No MOQ, 1pc order for sample checking is available.
