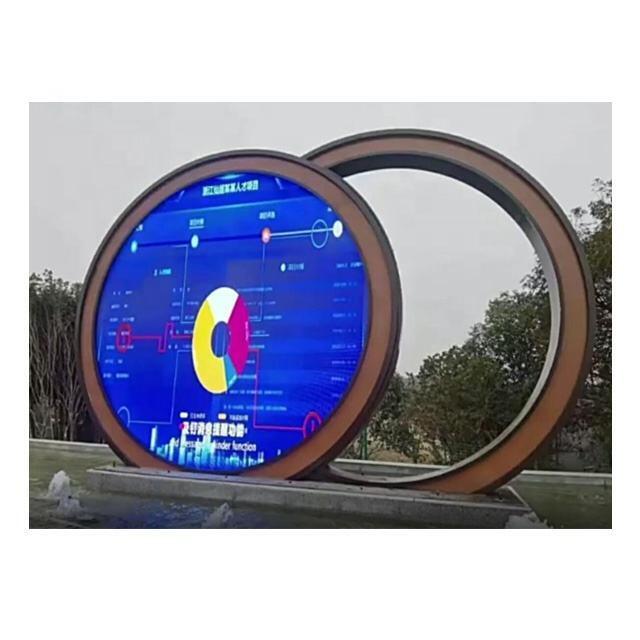

Outdoor LED Round Display is a creative non-rectangular display solution, constructed with curved/wedge modular LED cabinets to form a full-circle or circular ring shape, engineered specifically for harsh outdoor conditions (intense sunlight, heavy rain, extreme temperature swings).
Outdoor P3 Round LED Display Specification:
| PH3 -Outdoor Roud Led display |
| Pixel point parameter: |
| 1 |
LED |
SMD1515 |
| 2 |
Pixel Pitch |
3mm |
| 3 |
Pixel composition |
1R1G1B |
| 4 |
Features |
Waterproof and UV-resistant |
| Module technical parameters: |
| 1 |
Module resolution |
11111 dot / m² |
| 2 |
Module size (W * H) |
48*48mm/96mm*96mm/192*192mm |
| Screen body technical parameters: |
| 1 |
Full screen size |
Diameter 1m/2m/3m/4m/5m/6m...... |
| 2 |
dot density |
11111dot/m² |
| 3 |
screen resolution |
customize |
| 4 |
Brightness |
5500cd/m² (white field color temperature 6500K) |
| 5 |
Horizontal view/vertical view |
160°/160° |
| 6 |
Best visual distance (m) |
3-200m |
| 7 |
flatness |
≥99% |
| 8 |
Chroma uniformity |
±0.003 Cx,Cy |
| 9 |
service life |
>100,000 Hours Theoretical value |
| 10 |
way to install |
Side hanging, Mosaic, wall hanging, lifting |
| 11 |
Protection Class |
IP65 |
| System control parameter: |
| 1 |
Signal color processing bits |
Red, green, and blue ≥14bit |
| 2 |
type of drive |
Constant current drive 1/16 scan |
| 3 |
repetition frequency |
60 frames per second |
| 4 |
refresh rate |
≥3840HZ/S |
| 5 |
maximum power |
200W/m² |
| 6 |
average power |
800W/m² |
| 7 |
Operating Temperature Range |
-40°C~+60°C |
| 8 |
Screen color temperature |
2000K-9500K is adjustable |
| 9 |
brilliance control |
Manual/automatic/program control |
| 10 |
control mode |
Asynchronous control/mobile APP, WIFI, U disk, cloud platform |
2,Outdoor Round led display Core Advantages
Strong Visual Impact: The round form stands out dramatically among conventional rectangular billboards, helping brands achieve differentiated exposure and higher audience engagement rates in outdoor scenarios.
360° Audience Coverage: Full-circle or ring design eliminates the need for multiple flat panels to cover multi-directional pedestrian flows, optimizing space utilization while reducing overall project costs.
Superior Environmental Durability: Industrial-grade chips, aluminum profile+axial fan active cooling systems, and professional sealing processes ensure stable 24/7 operation in harsh outdoor environments.
Content Flexibility & Scalability: Easy integration with interactive technologies (motion sensors, touch), compatible with dynamic videos, graphics, text, and real-time data feeds (weather, traffic, event schedules).
3. Outdoor Round led display Application Scenarios
City Landmarks & Squares: Large round displays as nightscape highlights, showing city promotional videos, public notices, e.g., multi-meter-diameter round screens in downtown plazas.
Commercial Complexes & Pedestrian Streets: Facade mounting, hanging at atriums, storefront signs to display brand ads, event previews, boosting foot traffic attraction.
Transportation Hubs: Outdoor round screens at airports, high-speed rail stations, metro exits, broadcasting flight/train schedules, public welfare messages, and city guide content.

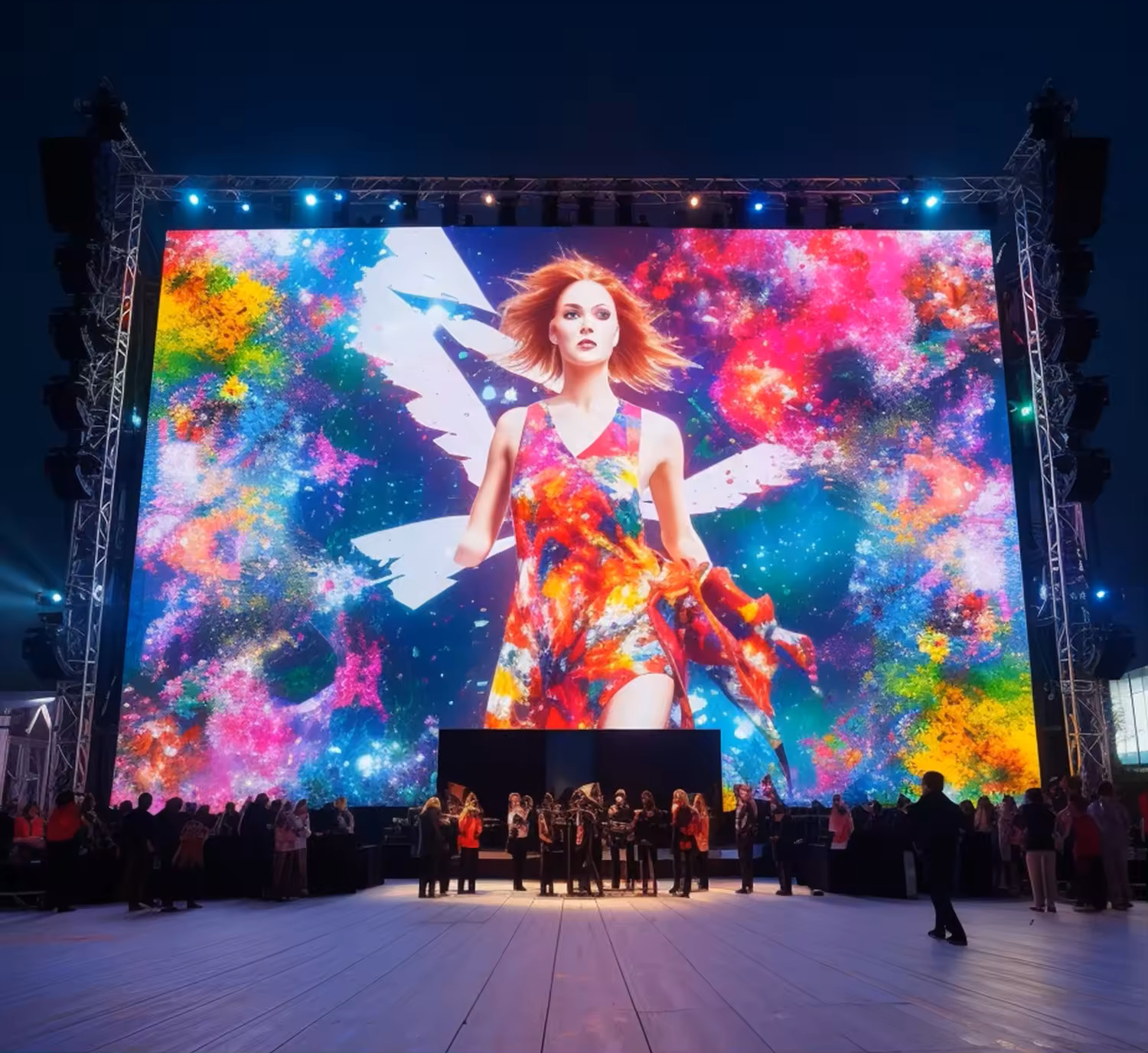

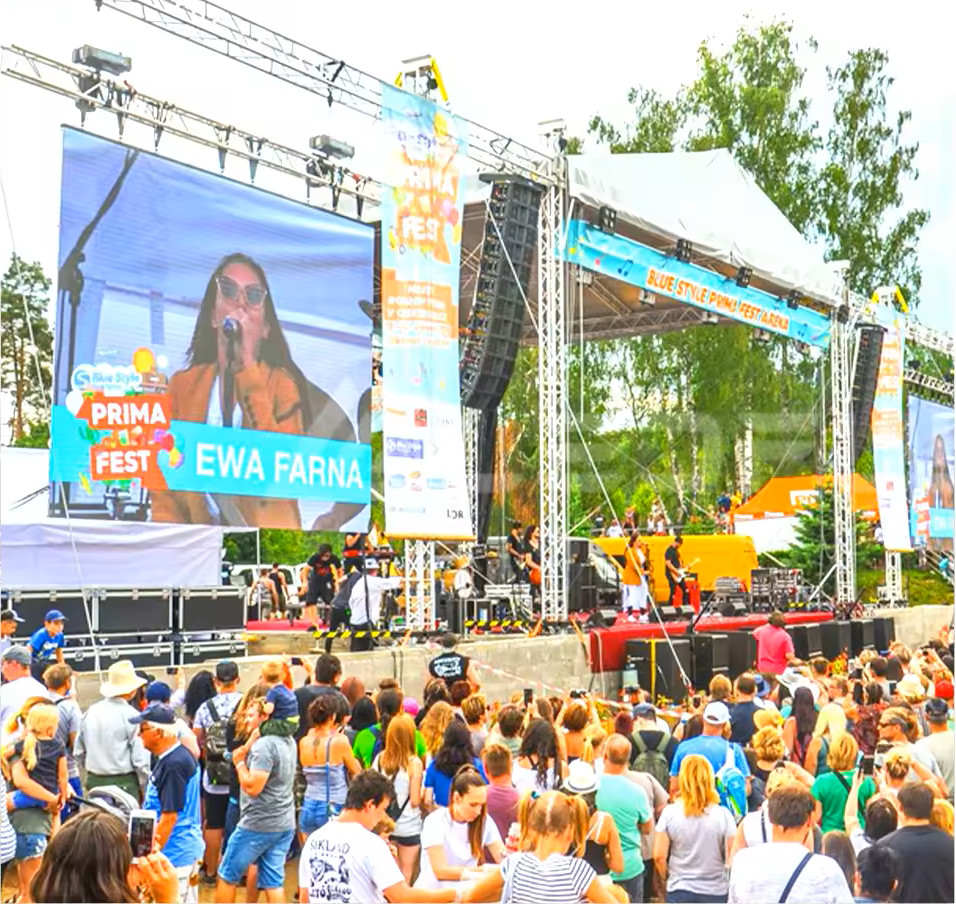

Cultural & Tourist Sites & Events: Theme parks, scenic area entrances, outdoor music festival stages, creating immersive visual atmospheres that combine with sound and lighting effects.
Public Art Installations: Integrated with interactive technology to serve as urban public artworks, balancing aesthetic value and educational/entertainment functions.
4. Outdoor Round led display-Critical Selection & Installation Considerations
Lightning Protection & Grounding: Mandatory professional lightning protection system for outdoor installation; grounding resistance must be less than 4Ω, ensure solid grounding of both screen body and enclosure to prevent lightning damage.
Waterproofing & Drainage: Use weather-resistant gaskets and neutral silicone sealant at cabinet joints; adopt IP67 waterproof connectors; add a rain overhang on the top, install the screen with a tilt angle ≥5°, and reserve drainage holes at the bottom to avoid water accumulation.
Heat Dissipation & Power Supply: Avoid long-term 100% white screen playback which causes excessive heat; separate strong and weak electrical wiring by more than 30cm; power supply capacity should have a 20% margin to prevent overload during peak operation.
Regulatory Compliance: Confirm with local urban management authorities for approval in advance, clarify the brightness limit at night and installation location restrictions to avoid complaints about light pollution or unauthorized advertising structures.
