Home > Products > Indoor LED Display > COB led display 4K Interior Micro Thin LED Video Wall Display Indoor Led Screen

COB led display 4K Interior Micro Thin LED Video Wall Display Indoor Led Screen

Name: COB led display 4K Interior Micro Thin LED Video Wall Display Indoor Led Screen
Brand: Shenzhen H&S Innovation Technology Co., Ltd
SKU: P1.25
Price: 1,100.00 USD
Availability: InStock

Product Details

Place of Origin: SHENZHEN

Brand Name: HSLED

Certification: CE ROHS FCC KC

Model Number: P1.25

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Wooden case/Honeycomb Box/Fight case

Delivery Time: 10-15workdays

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 1000set

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    Display cob led display, LED Video Wall, Indoor Led Screen


Model:	P1.2 P1.5P1.6P1.8 P2 P2.5	LED Type:	SMD1010 SMD1212 SMD1515
Cabinet Size:	640×480mm / Customized	Cabinet Material:	Diecasting Aluminum
Cabinet Weight:	6.8kg	Brightness:	900-1200
Viewing Angle (V / H):	140°(H);140°(V)	Refresh Rate:	3840-7680HZ
Application:	Indoor	Specification:	Video Wall

Model:	P1.2 P1.5P1.6P1.8 P2 P2.5
LED Type:	SMD1010 SMD1212 SMD1515
Cabinet Size:	640×480mm / Customized
Cabinet Material:	Diecasting Aluminum
Cabinet Weight:	6.8kg
Brightness:	900-1200
Viewing Angle (V / H):	140°(H);140°(V)
Refresh Rate:	3840-7680HZ
Application:	Indoor
Specification:	Video Wall

Product Description

HSLED-indoor LED video wall Product Presentation:

The indoor LED display cabinet is made of die-cast aluminum alloy, which has the advantages of light weight, high precision, thin body, quick installation, and easy maintenance.

The product has a high refresh rate, energy saving and low consumption, and low heat dissipation risk. Hd Led Video Displayproducts are suitable for various indoor fixed installation scenes, such as stage performances, studios, large conference halls, shopping malls, supermarkets, cinemas, command centers, smart cities, airport and railway station advertising screens, etc.

Indoor LED Display Paramenters:

Parameter
Product Name	P1.25	P1.53	P1.86	P2	P2.5
Pixel composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED encapsulation	SMD1010	SMD1212	SMD1515	SMD1515	SMD1515
Density of pixel/(dots/m2)	640000 dot/㎡	422753 dot/㎡	289050 dot/㎡	250000 dot/㎡	160000 dot/㎡
Brightness	800-1200nits	800-1200nits	800-1200nits	800-1200nits	800-1200nits
Size of module (mm*mm)	320mm*160mm	320mm*160mm	320mm*160mm	320mm*160mm	320mm*160mm
Cabinet size	640mm*480mm	640mm*480mm	640mm*480mm	640mm*480mm	640mm*480mm
Drive Method	1/64Scan	1/52Scan	1/43Scan	1/40Scan	1/40Scan
Best viewing angle (Horizontal/Vertical)	H: 160°; V:160°	H: 160°; V:160°	H: 160°; V:160°	H: 160°; V:160°	H: 160°; V:160°
Refresh rate	384-76800HZ	384-76800HZ	384-76800HZ	384-76800HZ	384-76800HZ
Blind Spot Rate	<0.000001	<0.000001	<0.000001	<0.000001	<0.000001
Grey scale	14 bits per color	14 bits per color	14 bits per color	14 bits per color	14 bits per color
Life Span	100,000 hours	100,000 hours	100,000 hours	100,000 hours	100,000 hours

HSLED indoor LED display screens point:

640mm*480mm*42mm standard size design;
1.The cabinet is made of die-cast aluminum, with high strength, toughness and precision

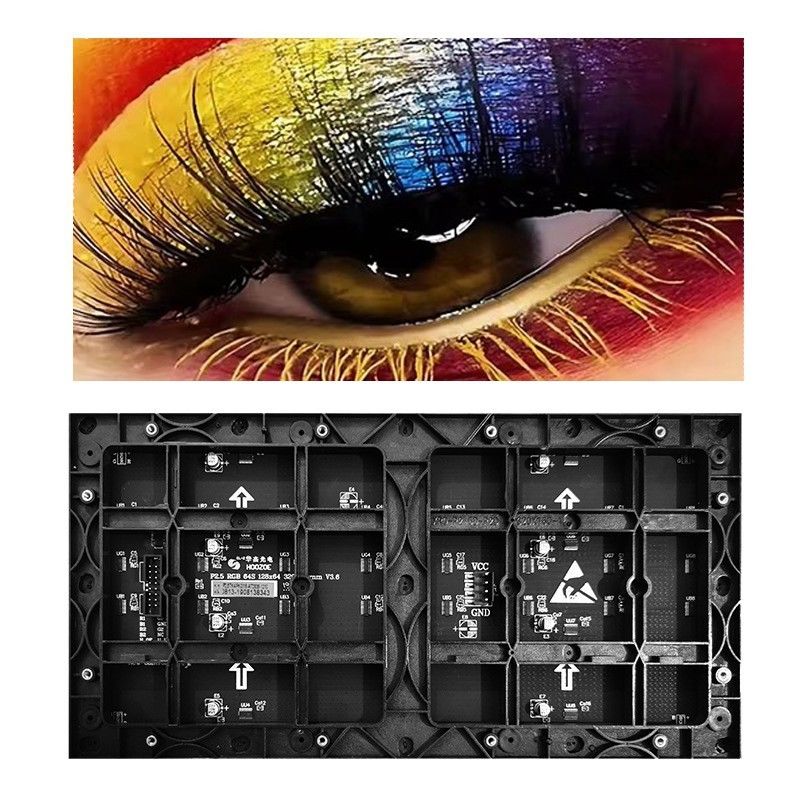

2.Hard-connected HUB and power supply integrated design, HUB hard-connected interface, 320*160 module without bottom shell, power supply N+1 backup
3.Soft-connected HUB supports HUB75 and HUB320 interfaces, compatible with conventional 320*160 soft-connected modules, with bottom shell, no power supply backup
4.Light and thin cabinet design, the thickness of the module without bottom shell is only 2.5mm, the weight is only 0.3kg, the overall thickness is reduced by 30%, and the weight is reduced by 10%
5.Two-in-one control panel design: HUB and power supply are integrated to improve stability and make maintenance easier
6.Floating hard-connected module, stable signal transmission
7.100-240V rated voltage, universal worldwide, better adaptability
8.Power supply N+1 backup, no black screen in case of power failure
