No Noise Conference Led Screen 1.8mm 172x86 Dots High Contrast
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P1.8 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 7-10 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product Name | Conference Led Screen | Cabinet Size | 640x480mm |
|---|---|---|---|
| Input Power Frequency | 50 Or 60 Hertz | Ingress Protection | IP30 |
| Control Distance | CAT5 Cable:＜100 M; Single Mode Fiber:＜10 Km | Signal Input Format | HDMI,DVI,SDI,VGA Etc. |
| High Light | 172x86 Dots Conference Led Screen,1.8mm Conference Led Screen,172x86 Dots led wall display |
||
Product Description
No Noise Conference Led Screen 1.8mm 172x86 Dots High Contrast

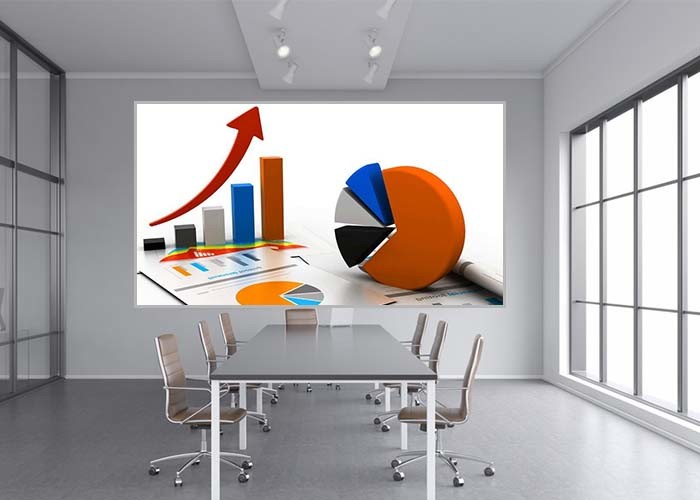

1.8mm High Contrast No Noise Large Screen For Conference Room
Product description
1. Full HD resolution, Automatic brightness adjustment system;
2. Support 8-channel mirroring access and 4-signal split display simultaneously; Support Android, iOS, Windows & Mac OS system mirroring with ˂160ms ultra-low latency; Support two-way WiFi connection without signal interference between mirroring and networking.
3. Smart Inkject Craftsmanship is optional to improve contrast ratio greatly; Nano-Coating Protection Technology stabilizes display effect optionally.
4. Optional sizes & colors meet customized needs; Support double METAGO joint splicing and different installation like wall mounting and moble standing; Applicable on various occasions like medium and large meeting rooms, lecture theaters, exhibition halls and private cinemas.
5.Supporting installlation and maintenance while live working
6.power on/off, brightness adjustment, signal source switching, menu settings, and other functions can be easily realized.
| Pixel Pitch | 1.8mm | |||
| LED Lamp | SMD1515 | |||
| IC | ICN2153 | |||
| Module Size | 320x160mm | |||
| Module pixels | 172x86 dots | |||
| Cabinet Size(WxH)(mm) | 680x480mm | |||
| Module Quantity(pcs) | 6 | |||
| Cabinet resolution WxH | 344x256dots | |||
| Cabinet Material | Aluminum die casting | |||
| Cabinet Weight (kg) | 7 | |||
| Average Power/sqm (watts) | 200 | |||
| Max Power/sqm(watts) | 600 | |||
| Brightness | 800cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 1.8-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 16 bit | |||
| Refresh frequency | 3840hertz | |||
| Driving mode | 1/43 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP30 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
Projects
2017, MPLED P6 outdoor led display assist for Senator Election of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
One- Stop Solution Service
1.3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.
2.Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.
3.7/24 online remote control service , and local engineer service within 8 hours contact.
4.Free technical training in factory.
5.MPLED engineers will fly to the site if you need local service.
6.Expanding market plan with professional MPLED team over 8 years experience.
7.Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries.
Sole Agent
MPLED cooperated with local team to expand Led display business, and signed sole agent in Saudi Arabia, Egypt, New Zealand, Germany and Indonesia.
Also had local installation and maintenance team in Cambodia, France, Middle East, Indonesia, United States, South Korea, Ghana.
FAQ
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor 2.6 MM
Q2: Where is it used for?
A2: Indoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We will offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
LED display,also called led screen, led video wall, or led sign, with its unique advantages,has gradually replaced the traditional billboards, light boxes,projectors etc. LED display has become a new force in the media industry.
