P8 Large Outdoor LED Advertising Screen 120x120 Dots Led Wall Signage
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P8 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 7-10 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product Name | P8 Led Wall Signage | Screen Dimension | 960*960mm |
|---|---|---|---|
| Brightness | 6500cd/sqm | Warranty | 2 Years |
| Module Size | 320x160mm | Certification | CE,UL,CCC,ROHS,GS |
| High Light | odm P8 Outdoor LED Advertising Screen,120x120 Dots Outdoor LED Advertising Screen,120x120 Dots Led Wall Signage |
||
Product Description

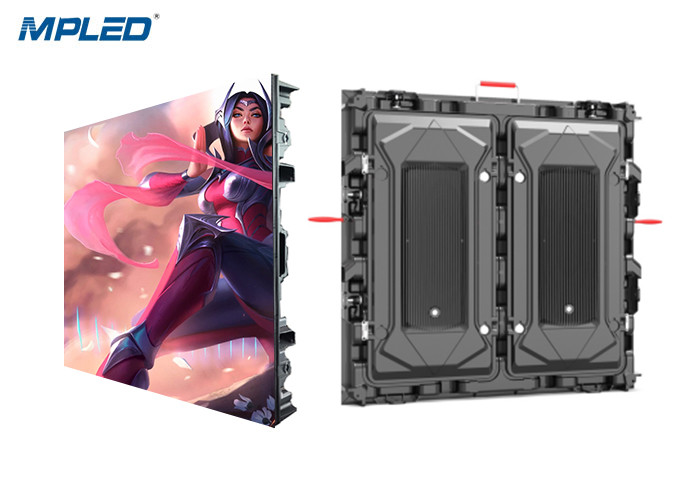

P8 Large Outdoor LED Advertising Screen 120x120 Dots Led Wall Signage
Wall Mounted Front Rear Module Maintenance Type Huge P8 Led Wall Signage
Product description
1. Nice appearance and simple structures.
2. Humanized operating interface with breakdown indicator lights, easy to maintain.
3. With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
4. The cabinet can be compatible with a variety of module models,P2.5 P3 P4 P5 P6 P8 P10(320x160mm) can be replaced directly..
5. Savings in Electricity Costs,300 Sqm, 5 years , Save $200,000 on Electricity Costs
6. Stage,Sports,advertising,traffic,events,stadium,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, entertainment,etc.
7. Fanless design prevents dust and water vapor from being brought into the cabinet.
8. High refresh, high grey scale and high brightness.
| Pixel Pitch | 8mm | |||
| LED Lamp | SMD3535 | |||
| LED configuration | SMD 3 in 1 | |||
| Module Size | 320mm x 160mm | |||
| Module pixels | 40x20dots | |||
| Cabinet Size(WxHxD)(mm) | 960x960x108mm | |||
| Module Quantity(pcs) | 18 | |||
| Cabinet resolution WxH | 120x120 dots | |||
| Cabinet Material | magnesium alloy | |||
| Cabinet Weight (kg) | 29 | |||
| Average Power/sqm (watts) | 240 | |||
| Max Power/sqm(watts) | 800 | |||
| Brightness | 6500cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 8-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 14 bit | |||
| Refresh frequency | 1920 hertz | |||
| Driving mode | 1/5 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP65 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
FAQ
Q1:Are you a manufacturer or trading company?
A1:We are a Professional OEM/ODM manufacturer which has specialized in led display industry for more than 15 years.
Q2:How does your factory do regarding quality control?
A2:Quality is priority. Brighter people always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail,Our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4:When will you make the delivery?
A4:We can make the delivery within 3-5 working days for the led modules and 10-12days for the led finished screen according to the size and quantities of your order.
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. we can send an engineer team to the country of the customer to instruct the installation.
Q6:How long is the warranty?
A6:The standard warranty is 2 year. It could be longer upon request.
Q7:Do you provide any free spare parts in each order?
A7:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q8: What project did you have done in overseas?
A8: 2017, MPLED P6 outdoor led display assist for Senator Election of South Korea
2018, MPLED P10 outdoor led display light up in The World Cup in Russia
2019, MPLED P2.97 stage led display stand the stage for Senator Election of Indonesia
2020, MPLED P1.86 led display(more than 150sq.m) install in Singapore Casino
2020, MPLED P3 led display covered the SAINT PHILA CONVENTION HALL
2021, MPLED P8 outdoor customized wave led display light up in Kuwait landmark
