16 Bit Transparent Glass LED Display Screen Indoor 1920Hz 3.91mm
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P3.91 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 10-15 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product Name | Transparent Display Quick Installation | Screen Dimension | 1000X500 Mm |
|---|---|---|---|
| Usage | Indoor | Refresh Rate | 1920Hz |
| Viewing Angle | H:160°, V:120° | Gray Scale | 16 Bit |
| High Light | 1920Hz Transparent Glass LED Display,3.91mm Transparent Glass LED Display,256x128 dots glass led panel |
||
Product Description

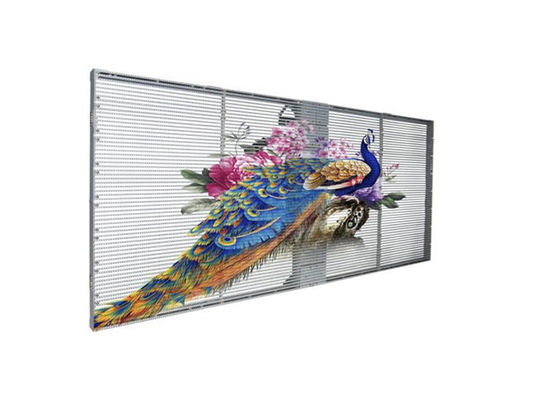

16 Bit Transparent Glass LED Display Screen Indoor 1920Hz 3.91mm
Jewelry Store P3.91-7.81 Transparent Display Quick Installation
Product description
1. Commercial plazas, commercial streets, airports, museums, exhibitions, shopping malls, supermarkets, theaters, hotels, etc.
2. The transparent LED screen is a micro-innovation of the light bar screen. It has made targeted improvements to the patch manufacturing process, lamp bead packaging, and control system. In addition, the hollow design structure reduces the obstruction of the structural components to the line of sight. The perspective effect is maximized.
3. With a novel and unique display effect, the audience stands at an ideal distance to watch, and the picture is suspended on the glass curtain wall.
4. When designing the advertising content of the LED transparent screen, you can remove the unnecessary background color and replace it with black. Only the content that needs to be expressed is displayed. The black part does not emit light during playback, and the effect is as transparent as shown in the figure.
5. This playback method can greatly reduce light pollution and at the same time reduce energy consumption, which can achieve more than 30% energy saving than ordinary LED display screens.
| Pixel Pitch | 3.91-7.8mm | |||
| Cabinet Size(WxH)(mm) | 1000x500mm | |||
| Cabinet resolution WxH | 256x128 dots | |||
| Cabinet Material | Aluminum profile | |||
| Cabinet Weight (kg) | 4.5 | |||
| Average Power/sqm (watts) | 240 | |||
| Max Power/sqm(watts) | 800 | |||
| Brightness | 3000-3500cd/㎡ | |||
| Viewing Angle | H:120°, V:160° | |||
| Best Viewing Distance | 3.91-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 16 bit | |||
| Refresh frequency | 1920hertz | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP30 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
FAQ
Q1: What’s the function?
A1: Support various formats,like VGA,Video,AVI,DAT,etc.
Q2: LED display modules are generally expressed in PX,such as P2 P3 P4...P8 P10,what does this mean?
A2: P3 P4...P8 P10 means that the pixel pitch is 3mm 4mm...10mm,which determines resolution of a display.Pixel pitch smaller,led resolution higher.
Q3: What pixel pitch should I choose on my display?
A3: It’s mainly depends on the viewing distance,the size of the display screen,the desired effect the application scenario and the customer budget.
Q4: How to in stall?
A4: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.We can also send our engineers to the site to guide the installation if needed.
Q5: What about your quality?
A5: The quality of our display is excellent.We use the materials of high quality suppliers.strictly control the production process,and pass the multiple quality inspection to ensure that every product is qualified.
Q6: How about the warranty?
A6: Two years warranty
Q7: What kind of display we provide?
A7: We have indoor/outdoor/rental/Advertising/transparent and poster LED display for your choice.
