Wall Mounted Front Maintenance Seamless Outdoor 90 Degrees Fixed Ultra Thin Led Display
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P10 |
| Minimum Order Quantity | 1 |
| Price | USD+608-729+pcs |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 7-10 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product Name | 90 Degrees Fixed Led Display | Pixel Pitch | 10mm |
|---|---|---|---|
| Led Chip | SMD3535 | Color | 1R1G1B |
| Usage | Outdoor | Module Resolution | 32*16 |
| High Light | Wall Mounted Outdoor LED Displays,Outdoor Fixed Ultra Thin Led Display,90 Degrees Fixed Led Display |
||
Product Description
Wall Mounted Front Maintenance Seamless 90 Degrees Fixed Ultra Thin Led Displayy
Product description

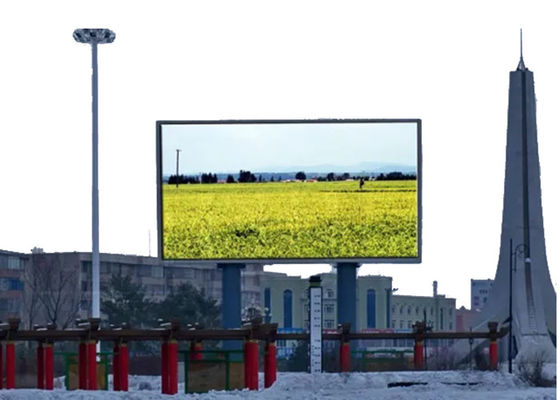

1. Advertising billboards, landmark billboards, street view billboards, digital billboards, transportation hub billboards, stadiums.
2. From the overall layout of PCB design, the product strictly follows the design standards of EMC testing, and has the performance that can withstand higher standards of electromagnetic compatibility testing. Every detail is to improve the overall stability of the display device.
3. 3 seconds lock type installation to complete a module, save the cost of manual installation, improve work efficiency, easy maintenance.
4. The cabinet body is processed by CNC, with only ±0.1mm tolerance, and 3 times precision that of the iron/steel cabinet body.
5. Thin Panel,Convenient Transport,Save Transport Cost.
6. One screen,virous pixel pitch options.Just replace LED modules to update led screen with higher reolution one after many years.
7. Super strong anti-UV, anti-level 12 storm, anti-severe cold, corrosion resistance, adapt to various harsh environments.
8. By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.
| Pixel Pitch | 10mm | |||
| LED Lamp | SMD3535 | |||
| LED configuration | SMD 3 in 1 | |||
| Module Size | 320mm x 160mm | |||
| Module pixels | 32x16dots | |||
| Cabinet Size(WxHxD)(mm) | 960x960x101mm | |||
| Module Quantity(pcs) | 18 | |||
| Pixel Density | 96x96dots | |||
| Cabinet pixels | 9216 dots | |||
| Cabinet Material | Magnesium alloy | |||
| Cabinet Weight (kg) | 25 | |||
| Average Power/sqm (watts) | 200 | |||
| Max Power/sqm(watts) | 600 | |||
| Brightness | 7000-7500cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 10-100 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 14 bit | |||
| Refresh frequency | 1920hertz | |||
| Driving mode | 1/2 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP65 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
