350mm P3 Outdoor Hexagon Led Panel Screen Custom Shape LED Display spherical led display
| Place of Origin | SHENZHEN |
|---|---|
| Brand Name | H&S LED |
| Certification | CE ROHS FCC |
| Model Number | P3 |
| Minimum Order Quantity | 1set |
| Price | USD1500-2000/SET |
| Packaging Details | Fight case/Wooden case/Honeycomb Box |
| Delivery Time | 25-35 workdays |
| Payment Terms | L/C, T/T |
| Supply Ability | 100Set/30DAY |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | P3 LED | Length Of A Side | 350mm |
|---|---|---|---|
| Display | Ootdoor Fullcolour Screen | Screening | Text, Images, Videos，3D |
| Viewing Distance | 3-500m | Box Thickness | Single Sided 7CM, Double-sided 10CM |
| Weight | 10kg | Pixel Configuration | 1R,1G,1B |
| Working Voltage | AC110-220V | Warranty Period | 2years |
| Highlight | 350mm hexagon led panel,10kg hexagon led panel,custom shape led screen Hexagon |
||
Product Description
H&S Hexagonal LED Display - outdoor led screen
instruction for Product:
Simple to install and Durable
The power supply and line are completely wrapped in the chassis, waterproof and heat release, and it can still be perfectly displayed in rainy days.
Creative Design & Custom Size
Arbitrary Design With Different Unit Size and Shapes Available.
Widely used in interior decoration and advertising, it can create stunning visual effects,which are very eye-catching compared to ordinary square led displays.
Free layout and pattern Multiple combination and installation method
The layout can be freely designed by customers.
Made of isometric hexagonal panels that can be used to compose displays and layouts of any special shape.
Hexagon can be mounted on a wall, hung from the ceiling, or even placed on the ground.
instruction for use:
Creative hexagonal led display Stunning visual effects
Each hexagon can work independently to display clear images or videos or combine into a pattern to display creative content.
Plug and play Synchronize with control computer
The hexagon monitor can be easily set up to sync video or other content with the computer desktop or it can be video mapped by a media server to create custom content.
Product Technical Parameter
| Product Paramenters | |
| Product Name | P3 Hexagonal LED Display Screen |
| Usage environment | Outdoor |
| Pixel Pitch | 3mm |
| Cabinet Size | side=350mm |
| Scan Mode | 1/16 scan |
| Refresh Rate | 1920-3840Hz |
| Brightness | 5000-5500cd/sqm |
| Maximum Power Consumption | 850W/sqm |
| Average Power Consumption | 280W/sqm |
| IP Level | IP65 |
| Grey Level | 14 bit - 16 bit adjustable, the factory standard 14 bit/recommend 4096 level |
| Use Life | >100,000 hours |
| The Environment Temperature | - 40 ℃ to + 80 ℃ : operation: - 20 ℃ - + 80 ℃ |
| Environmental Humidity | 10% 90% |
| Refresh Frequency | more than 1000 hz adjustable |
| Pixel is out of control rate | < 0.0001 (LED industry standard: less than three over ten thousand) |
| Supply Mode | AC220V / 50 hz or AC110V / 60 hz |
Product advantages:
SMD technology provides a wider perspective, superior flatness and stability
RGB deep gray processing provides rich colors and high-definition image quality
Through the point by point correction function, color and brightness have high consistency
Quick and accurate installation location types, suitable for various installation locations
Internal fixed reinforcement plate, tensile and shockproof, automatic heat dissipation, with a service life of 10 years
Large scale production, using high-quality materials and mature processing technology, ensures good and stable quality
Use high-quality aviation plugs to ensure safety and excellent quality
Having a complete series and accepting customized projects to meet the different needs of different users
RGB deep gray processing provides rich colors and high-definition image quality
Through the point by point correction function, color and brightness have high consistency
Quick and accurate installation location types, suitable for various installation locations
Internal fixed reinforcement plate, tensile and shockproof, automatic heat dissipation, with a service life of 10 years
Large scale production, using high-quality materials and mature processing technology, ensures good and stable quality
Use high-quality aviation plugs to ensure safety and excellent quality
Having a complete series and accepting customized projects to meet the different needs of different users

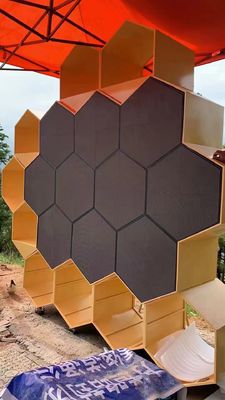

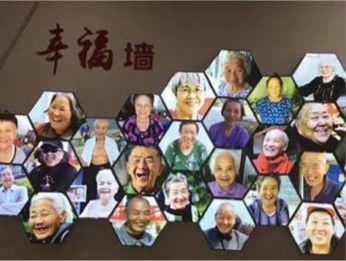

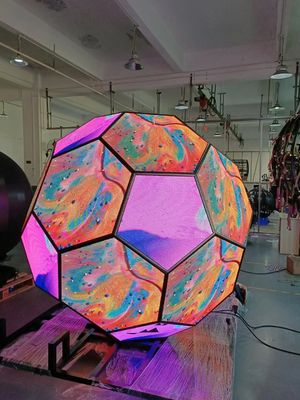

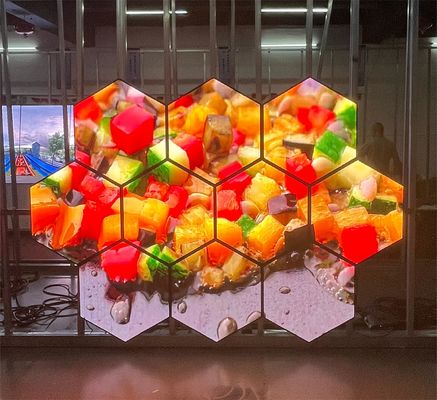

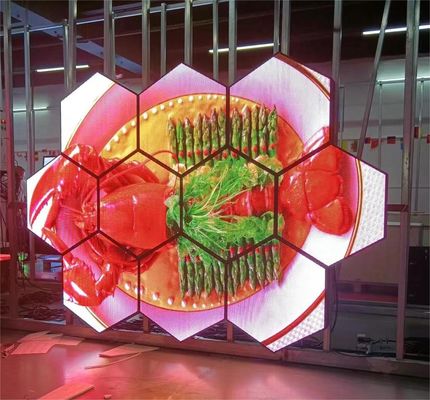

Product Pictures:
Customized triangle module and trapezoid module to make the unique honey comb design
