Pole Support Outdoor LED Displays Panel P10 SMD Led Screen ODM

Product Details

Place of Origin: SHENZHEN

Brand Name: HSCX

Certification: CE ROHS FCC

Model Number: P10

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Fight case/Wooden case/honeycomb Box

Delivery Time: 10-35 workdays

Payment Terms: L/C, T/T

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                    ODM Outdoor LED Displays, P10 SMD Outdoor LED Displays, ODM p10 smd led screen


Pixel Pitch (Mm):	P10	LED Type:	SMD3535
Refresh Rate (Hz):	>1920-3840 HZ	Grey Scale:	16bit
Module Size (Mmxmm):	320mm * 160mm	Cabinet Size::	960mm*960mm
Optimum Viewing Angle::	H:140°, V:120°	Tube Chip Color:	FULL COLOR
Display Function:	Video	High Ligh:	P10 Outdoor Fixed LED Display,Outdoor LED Screen

Pixel Pitch (Mm):	P10
LED Type:	SMD3535
Refresh Rate (Hz):	>1920-3840 HZ
Grey Scale:	16bit
Module Size (Mmxmm):	320mm * 160mm
Cabinet Size::	960mm*960mm
Optimum Viewing Angle::	H:140°, V:120°
Tube Chip Color:	FULL COLOR
Display Function:	Video
High Ligh:	P10 Outdoor Fixed LED Display,Outdoor LED Screen

Product Description

P10 LED Display Panel Outdoor Lreen

Applications of LED Display Panel Outdoor

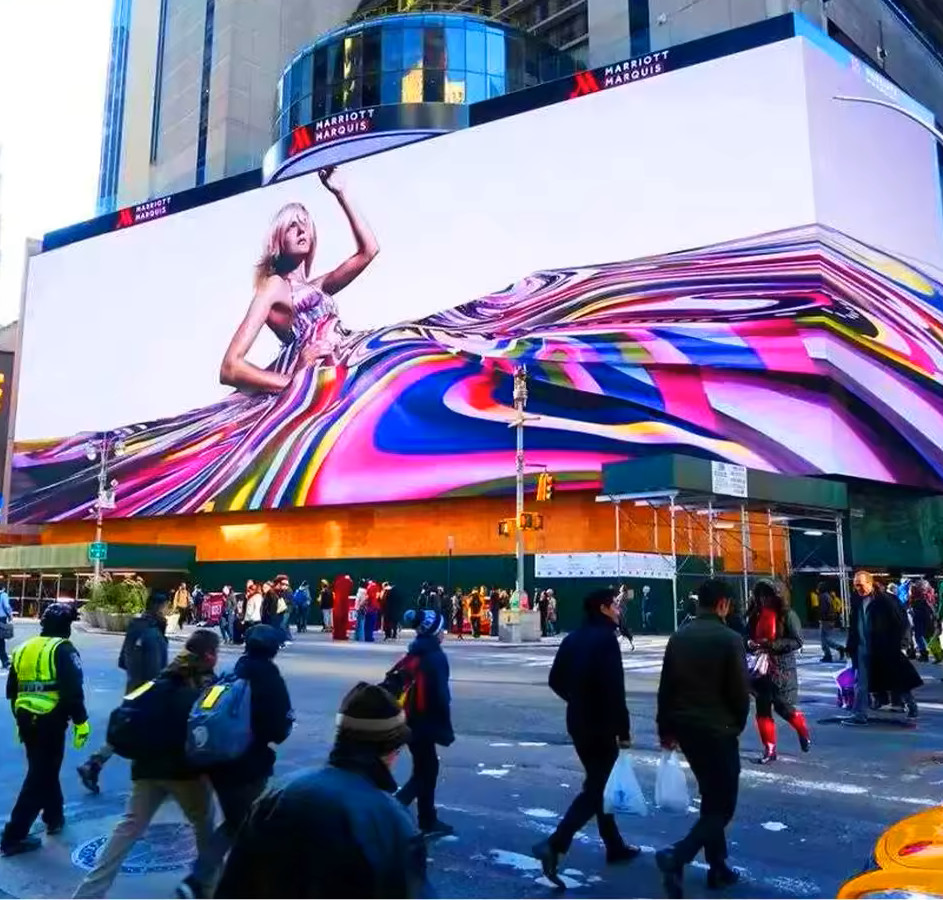

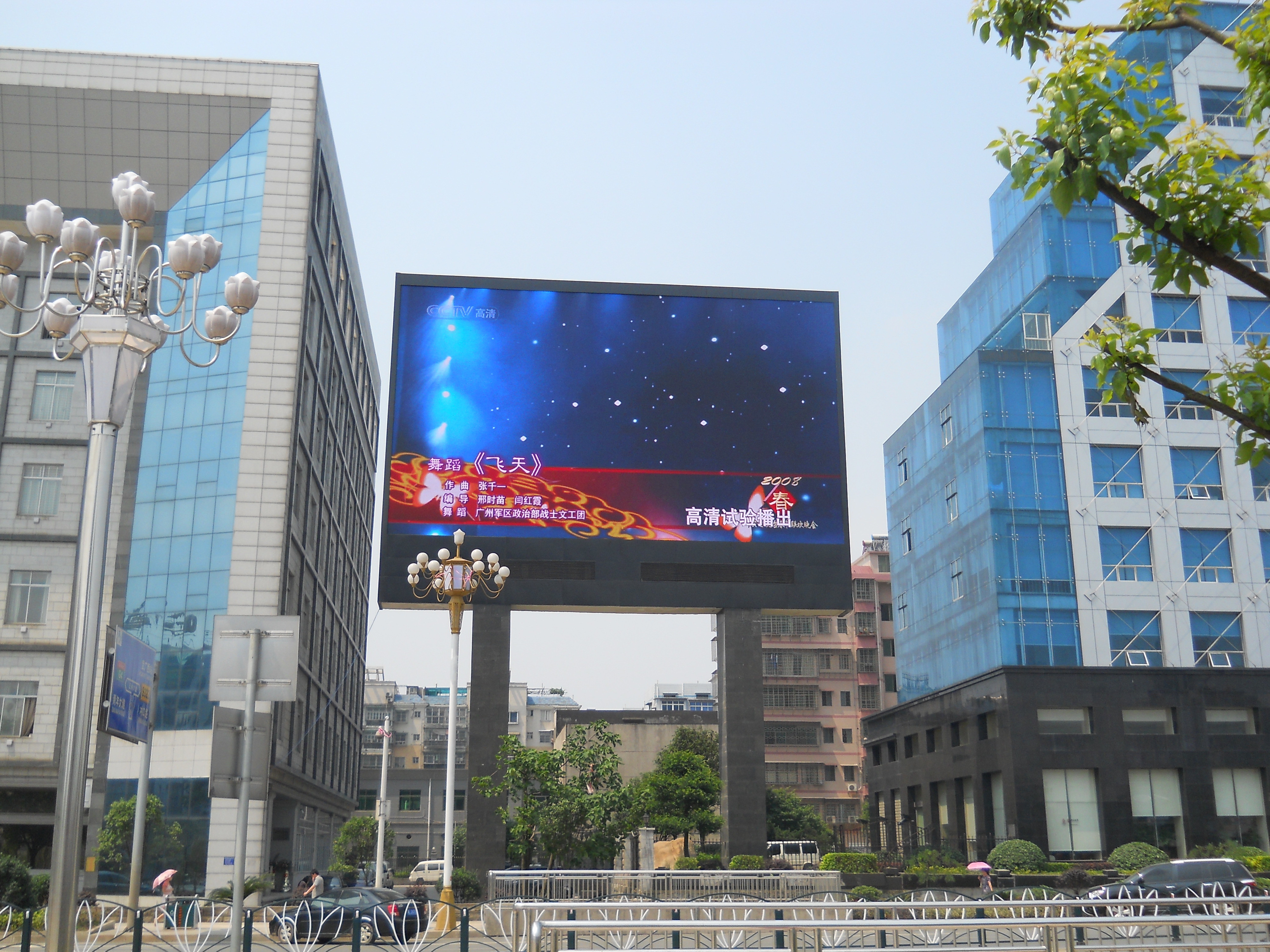

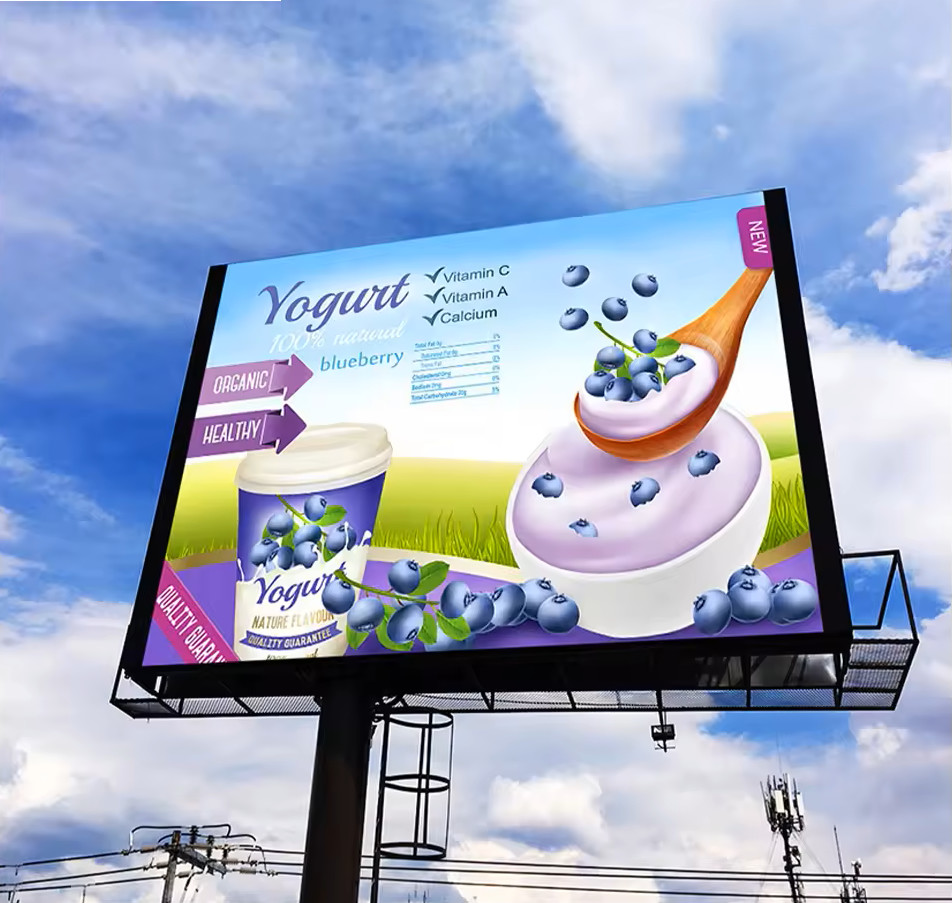

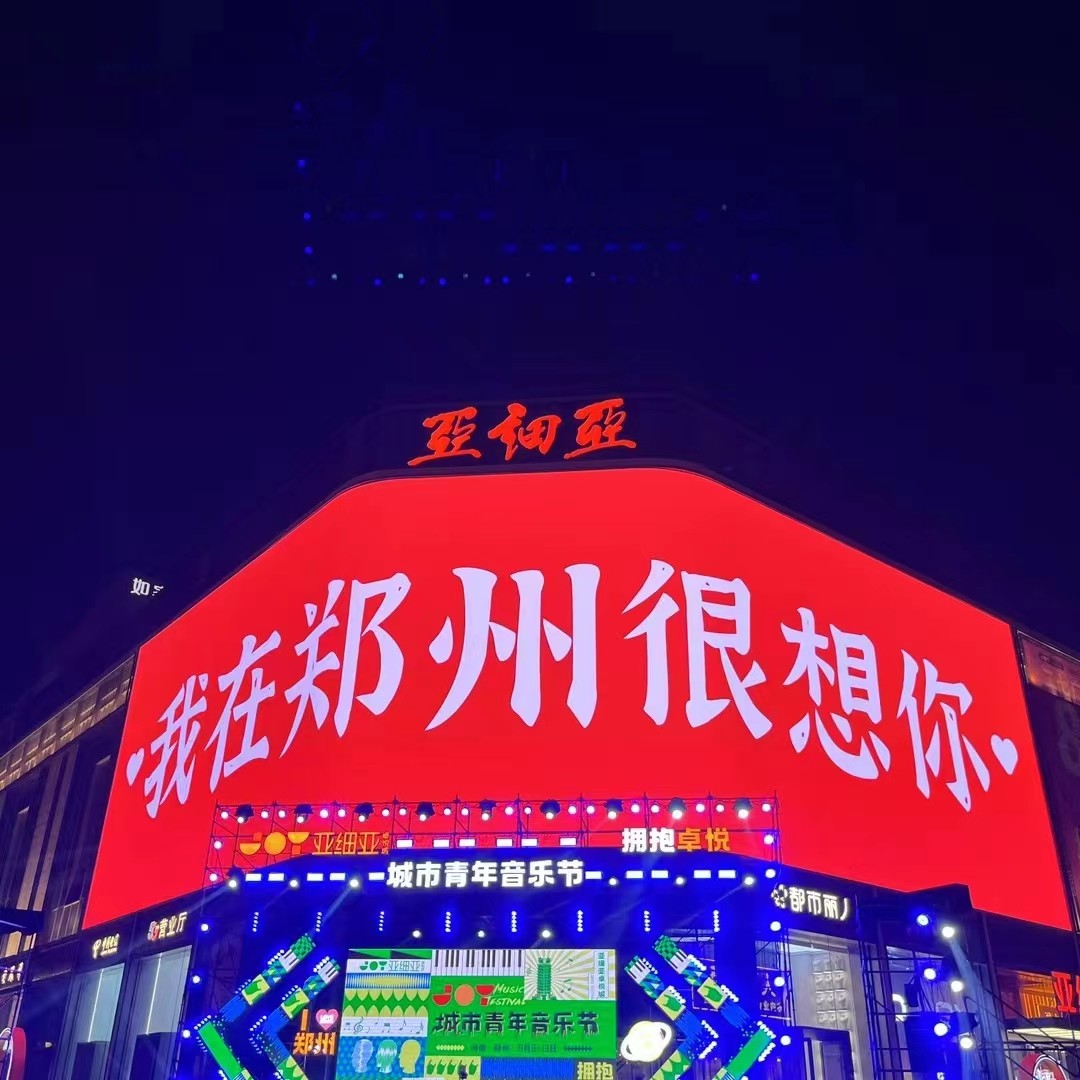

LED Display Panel Outdoor are used in various public places, you can find them everywhere, like highway, subway, shopping mall, exterior of stores, commercial center. most of them are used for advertising, signage, background.

Features of Led Wall Screen Display Outdoor

1. IP65 protection, protect from dust and moisture.

2. Wide viewing angle(H: 140°; V:140°).

3. Waterproof design, keep working, reduce the failure rate of running in the rain

4. Long life span(>100,000 Hours).

5. Competitive factory price, with guaranteed quality.

Led Display Specification

OutdoorLED Display
Model No.	P2.5	P3.0	P4	P5	P6	P8	P10
Pixel Pitch(mm)	2.5	3.076	4	5	6	8	10
LED Type	SMD1415	SMD1415	SMD1921	SMD2727	SMD3535
Module Dimensio (W*H)(mm)	320x160	320x160	320x160	320x160	320x160	320x160	320x160
Cabinet Dimension (W*H)(mm)	960x960	960x960	960x960	960x960	960x960	960x960	960x960
Cabinet Material	Magnesium Alloy
Cabinet Weight	28(Kg)
Brightness(nits)	5500~6500
Viewing Angle	H:140°Vi140
Color Temperature	3200~9500K
Max Power Consumption	750(W/m²)					800(W/m²)
Average Power Consumption	300(W/m²)					350(W/m²)
Maintenance Method	Rear Maintenance(Our c Series Support Front Maintenance)
Gray Level	14bit
Refresh Rate	3200~3840Hz
Waterproof Level	IP65
Operating Temperature	-20°~60°
Life Time	100000(Hours)
Warranty	3-5years

Pole Support Outdoor LED Displays Panel P10 SMD Led Screen ODM 0

Product Description:

LED Chips : Nichia/Cree/Epistar/Silan/King light/Silan/KN-LIGHT All Our Brand Partners
IC : Mblock/Mingyang/Chipone/Mingwei All Our Brand Partners
Power Supply:Meanwell/Megmeet/Powerld/Rong Electronic/G-Energy All Our Brand Partners
Control card:Novastar, Linsn, Colorlight, Huidu All Our Brand Partners Video processor:Novastar, Videowall All Our Brand Partners
PCB Board : Flame Retardant, Anti-Aging
Magnesium Ally Cabinet : Light Weight, Corrosion Resistance

After-sell Service:

2 years quality guarantee for all parts.
Experienced engineers and technicians provide solutions to all kinds of question.
Providing free and spare accessories, such as power and data cables.
Free remote control debuggine serice if you need.
Installation guidance by experienced technicians.
