Highlight:
Outdoor Led Advertising Screen
, Outdoor LED Display for Advertising
, Outdoor LED Screen
Outdoor LED Video Wall
Outdoor aluminum LED screen

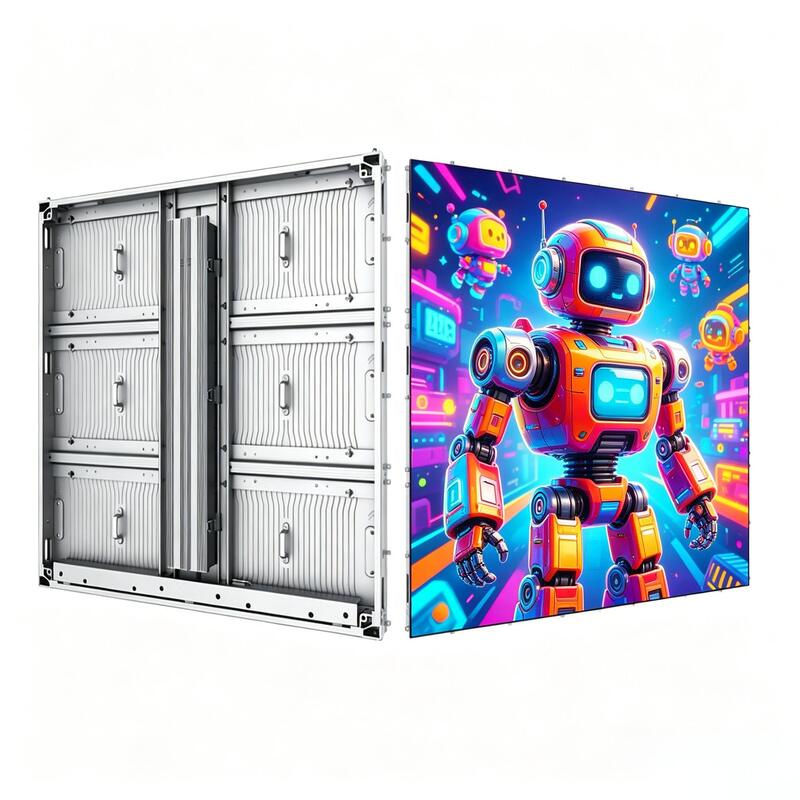

HSCXLED-Outdoor aluminum LED screen/outdoor LED video wall is a game-changer in the industry. Its high brightness, lightweight design, easy maintenance, and outdoor durability make it the perfect solution for transformative outdoor advertising and signage.
Pixel Pitches for Option: 4.44mm/5.7mm/6.67mm/8mm/10mm
Panel Sizes: 960x960x75mm
Panel Material: aluminum
Refresh Rate: 3840Hz high refresh rate
Installation: wall-mounted / pillar-mounted / truck-mounted / rooftop-mounted
Outdoor aluminum LED screen- outdoor LED video wall represents a new benchmark in outdoor advertising and signage. The outdoor aluminum LED screen common cathode LED display redefines outdoor advertising with its exceptional performance, energy efficiency, and versatility. This display boasts an IP68 waterproof rating, seamless splicing capabilities, and a unique energy-saving design, a high-precision aluminum profile cabinet, full-sealed design, making it ideal for outdoor display applications.Higher structural strength, higher flatness, strongly dissipate heat, corrosion resistance, long service life.
The outdoor LED displays are used to meet the diverse needs of outdoor environments. They are perfect for advertising, displaying traffic information, and attracting a large audience. Outdoor aluminum LED screen with their high brightness and full-color visual capabilities, they ensure that your content stands out even in bright sunlight.
Outdoor aluminum screen Paramenters:
| HSCXLED-Outdoor LED display --Outdoor Outdoor aluminum LED screen |
| Model |
P4.4 |
P5.7 |
P6.6 |
P8 |
P10 |
| Pitch(mm) |
4.4mm |
5.7mm |
6.6mm |
8mm |
10mm |
| Type |
SMD1921 |
SMD2727 |
SMD2727 |
SMD2727 |
SMD3535 |
| Density |
50625(dots/㎡) |
30628(dots/㎡) |
22500(dots/㎡) |
15625(dots/㎡) |
10000(dots/㎡) |
| Module Resolution |
108*72(dots) |
84*56(dots) |
72*48(dots) |
60*40(dots) |
48*32(dots) |
| Scan |
1/9S |
1/7S |
1/6S |
1/4S |
1/2S |
| Module Size |
480mm X 320mm |
| Cabinet Size |
960×960(mm) |
| Cabinet Weight |
26Kg Aluminum Frame |
| Cabinet Material |
Aluminum /aluminum profile |
| IC Driver |
≥3840HZ |
| Brightness |
≥6000-10000(cd/㎡) |
| Waterproof Level |
IP68 waterproof |
| Maintenance Way |
Front and Rear |
| Colorful Process Bit |
14bit-16bit |
| Ave.Power Comsumption |
≤600(W/㎡) |
| Max.Power Comsumption |
≤200(W/㎡) |
| Viewing Angle |
Hor. 140°&Vert. 140° |
| Input Voltage |
AC 110V/220V±10%,50Hz/60Hz |
| Work Temperature/Humidity |
-40℃～80℃ / 10%RH～98%RH |
| Lifespan |
100,000hours |
Energy Saving LED Display
Outdoor aluminum LED screen Energy Saving LED Display is HSCXLED the latest Aluminum Display with the size of 960*960mm and high IP65 waterproof level. Unique panel design with 480*320mm size. Ultra-low heat and power consumption, saving electricity with excellent visual experience.
Outdoor aluminum LED screen Highlights:
✓ Ultra-light 23kg cabinet (960×960×75mm) with wireless connectivity for easy installation
✓ 35-65% energy savings through advanced power-efficient design
✓ All-weather durability featuring IP68 waterproofing and 5VB fireproof aluminum construction
Perfect for demanding outdoor displays.
High Brightness Outdoor LED Video Panels
The Outdoor aluminum LED screen brightness reaches up to 6000~10000nits, can instantly captivateattention & deliver content even under strong light.
Outdoor LED Video Wall High Protective Performance
Full waterproof, fully-sealed design and die-casting aluminum module chassis, offering high protecting Rating (front and rear) lP68. Aluminum material LED module, high temperature durability, fast heat-dissipation. The outdoor aluminum LED screen can Reach 5VB fireproofing level.integrated all-aluminum design, with corrosion resistance, high melting point, flame retardant and fire resistance, moisture resistance and salt spray resistance working temperature -40°C -80°C, can operate normally in the seaside environment for a long time, The ability to adapt to the environment is very strong, and it can work outdoors all day long.
Fully Waterproof Design Function in Outdoor Displays
Ensuring its durability and reliability in a variety of environmental conditions is critical. This feature protects internal components from water ingress, dust, and other environmental factors, making it ideal for outdoor applications.
140-degree Wide Viewing Angle
The outdoor aluminum LED screen vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. Outdoor aluminum LED screen provides you with clear and natural images in all directions.
Outdoor LED Video Wall Seamless Splicing
The installation is fast, convenient and flexible, and supports multiple installation methods to achieve seamless splicing.Seamless Splicing,The die-cast aluminum module achieves seamless splicing and high flatness, ensuring no gaps in the LED display and providing excellent visual quality.
Curved Splicing and Right-angle Splicing
Outdoor aluminum LED screen supports right angles and curved angles, the best choice for creating 3D large screens.Outdoor aluminum LED screen can be configured using two primary splicing methods: arc splicing and right-angle splicing. Each method offers unique advantages and is suited for different applications and environments.
High-definition Picture, Restore True Color
Featuring an outstanding ultra-high contrast ratio of 5000:1, the Outdoor aluminum LED screen enhances the differentiation between light and dark elements. This impressive contrast brings out fine details, resulting in vibrant and lifelike visuals, perfect for applications requiring exceptional image clarity and depth.
Self-Cooling Technology
The fan has strong heat dissipation, no noise, and low power. Both the front and back sides have reached IP68 waterproof level. Full aluminum module chassis and Power box with heat sink.
HUB Design Safe And Stable
Full rear power box easy maintenance,HSCXLED outdoor LED video wall reduces the possibility of cable-induced failures and also makes the entire screen neat and beautiful. The outdoor aluminum LED screen modules and power boxes can be quickly assembled and maintained from the front.
Front and Rear Double Maintenance Outdoor LED Video Wall
In order to help customers better maintain outdoor LED display billboards, the dual service mode designed on the front and back can save you maintenance costs. The LED panels can be assembled and disassembled easily and quickly.High modular design, easy maintenance,This design does not require ribbon cables, so the signal connection of the module is much better than the common designs on the market. In addition, HSCXLED use single-row pin sockets, which are characterized by: High precision: precise pin spacing ensures stable connection between electronic components and improves the overall performance of the circuit board. High reliability: Outdoor aluminum LED screen made of high-quality materials, it has good conductivity and corrosion resistance, which can ensure the stable operation of the circuit.
Outdoor LED Video Wall Super Energy Saving Cabinet
Considering the energy consumption of outdoor advertising LED video wall, thanks to the latest PCB, lCS and power supply design, it is 35%~65 more energy-efficient than traditional outdoor screens. The design of outdoor advertising display screens focuses on energy saving and environmental protection. They have low power consumption, reduce energy costs and minimize carbon footprint.The outdoor aluminum LED screen are ideal for a variety of applications, including advertising, events, and public information systems, combining efficiency with performance.
Application Fields
In order to adapt to various scenarios, our products are made of high-quality materials, simple and solid structure, and a variety of installation methods make it flexible and convenient to use. Outdoor aluminum LED screens are usually used in shopping malls, street side, curtain walls, building cards, car trailers, scoreboards, outdoor digitalization.
Outdoor LED Video Walls Multiple Installation Methods
Outdoor aluminum LED screen offer a variety of installation methods to suit different venues and event requirements. Choosing the right installation method is essential to maximize visual impact and ensure stability and safety.
Why Choose the Outdoor LED Screen Display?
1. Versatile Outdoor LED Models
To cater to different project requirements, the outdoor aluminum LED screen offers a wide range of pixel pitches, including P4.4/P5.7/P6.67/P8/P10. This flexibility ensures that you can select the most suitable model for your specific application.
2. Exceptional Brightness and Visibility
With brightness levels ranging from 5000 to 10,000 nits, these displays guarantee excellent visibility even under direct sunlight. This makes them ideal for high-traffic outdoor areas where capturing attention is critical.
3. Advanced Waterproof and Dustproof Design
Outdoor environments can be unpredictable, which is why durability is crucial. The IP65 to IP68 waterproof rating ensures that these LED screens are protected from water, dust, and other environmental elements, delivering consistent performance no matter the weather.
4.Customizable Sizes for Every Need
The Outdoor aluminum LED screen supports both standard sizes (960×960mm) and highly customizable dimensions. Whether you require a small digital sign or a large-scale billboard, this series can be tailored to fit seamlessly into your project.
