Product Details
Place of Origin: SHENZHEN
Brand Name: HSCX
Certification: CE ROHS FCC
Model Number: P1.86
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Fight case/Wooden case/honeycomb Box
Delivery Time: 10-35 workdays
Payment Terms: L/C, T/T
Pixel Pitch (Mm): |
P1.86 |
Tube Chip Color: |
FULL COLOR |
LED Type: |
SMD1515 |
Module Dimension: |
320*160mm(W*H)(mm) |
Module Resolution: |
176*86(W*H)(Pixel) |
Pixel Density: |
288906 Pixel/m2 |
Refresh Rate: |
>1920-3840 HZ |
Cabinet Dimension: |
640*1920(W*H)(mm) |
Cabinet Weight: |
75(kg) |
Operating Life: |
100000H |
Pixel Pitch (Mm): |
P1.86 |
Tube Chip Color: |
FULL COLOR |
LED Type: |
SMD1515 |
Module Dimension: |
320*160mm(W*H)(mm) |
Module Resolution: |
176*86(W*H)(Pixel) |
Pixel Density: |
288906 Pixel/m2 |
Refresh Rate: |
>1920-3840 HZ |
Cabinet Dimension: |
640*1920(W*H)(mm) |
Cabinet Weight: |
75(kg) |
Operating Life: |
100000H |

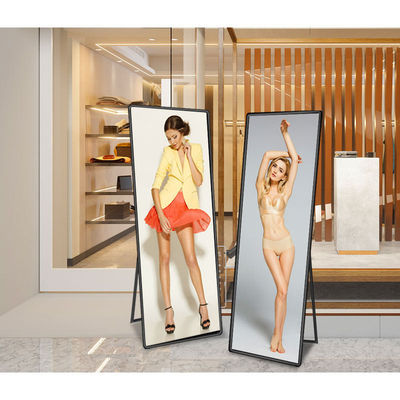

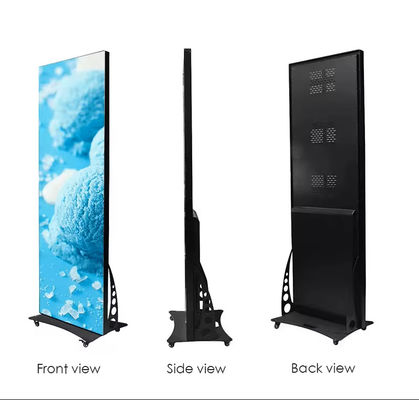

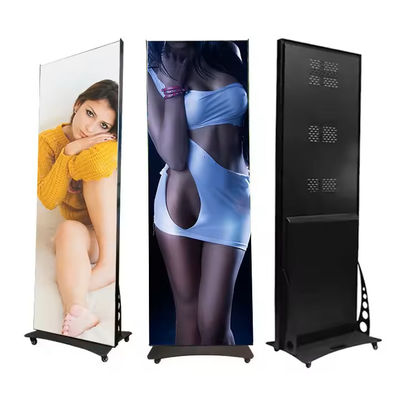

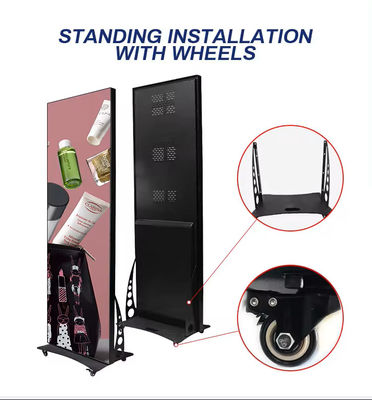

LED poster screen is a new type of digital display screen
LED poster screen, movable LED screen, vertical LED screen, has a wide range of applications in multiple fields:
LED poster screens, as efficient advertising display tools, are widely used in public places such as commercial centers, shopping centers, and stations.
LED poster screens are used in transportation hubs, government agencies, corporate buildings, and other places to release important public information, notices, real-time data, etc
LED poster screens are commonly used for background stage, information display, live streaming images, etc. at large-scale events, exhibitions, concerts, and other venues,
LED poster screens are widely used in sports venues for score display, sponsor advertising, real-time playback, etc., providing viewers with a richer viewing experience.
LED poster screens are used in store windows, commercial exhibitions, and other occasions to showcase products, convey promotional information, and enhance brand image and sales effectiveness.
Led Display Specification
POSTER LED display P1.86 | |||
Resolution/mm | 1.86 | ||
LED Type | SMD1515 | ||
Module DIMENSION(W*H)(mm) | 320*160 | ||
Pixel density/pixels/m² | 288906/m² | ||
Module resolution | 172*86dot | ||
Cabinet Dimension(W*H)(mm) | 640*1920 | ||
Cabinet Resolution(W*H)(Pixel) | 344*1032 | ||
Cabinet Material | Iron | ||
Cabinet Weight(KG) | 75 | ||
Best Viewing Distance(m) | 1.8 | ||
brightness | >900cd/㎡ | ||
Refresh frequency | >1920-3840Hz | ||
Ingress Protection(Fron/Rear) | IP31 | ||
Viewing Angle | H:140° V:140° | ||
Color Temperature | 3200-9500K | ||
Gray Level | 14bit | ||
Maximum power | 600W/m2 | ||
Average power | 200W/m2 | ||
Environment temperature range | Operating temperature range: -20-60℃ | ||
Humidity(working) | working:10-95% | ||
Input Voltage | AC110-220V±15% 50-60Hz | ||
Life time | 100000hours |
|
