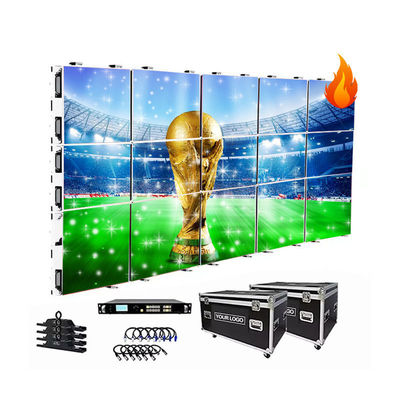

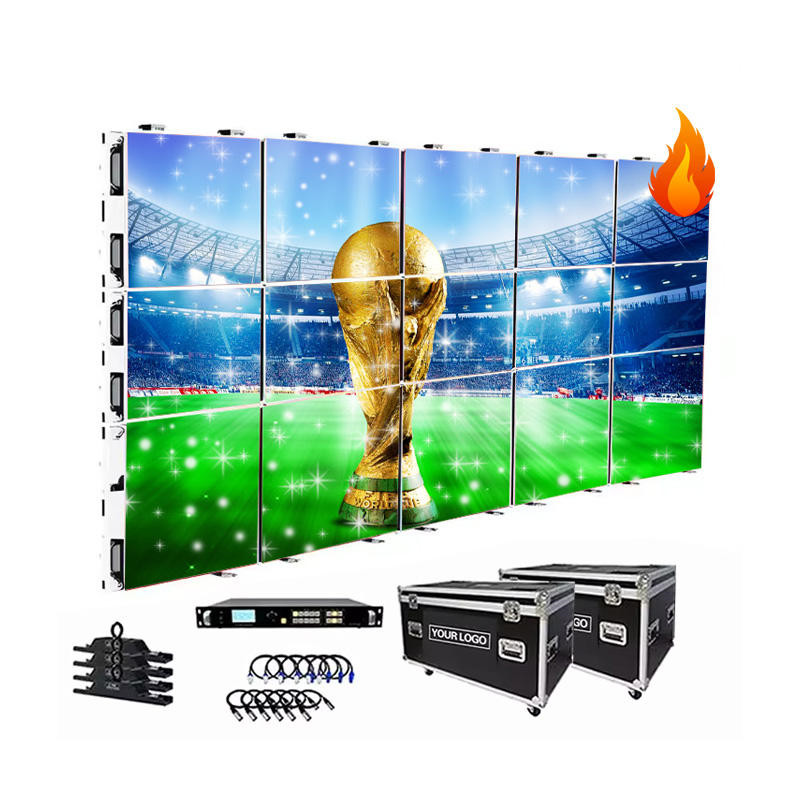

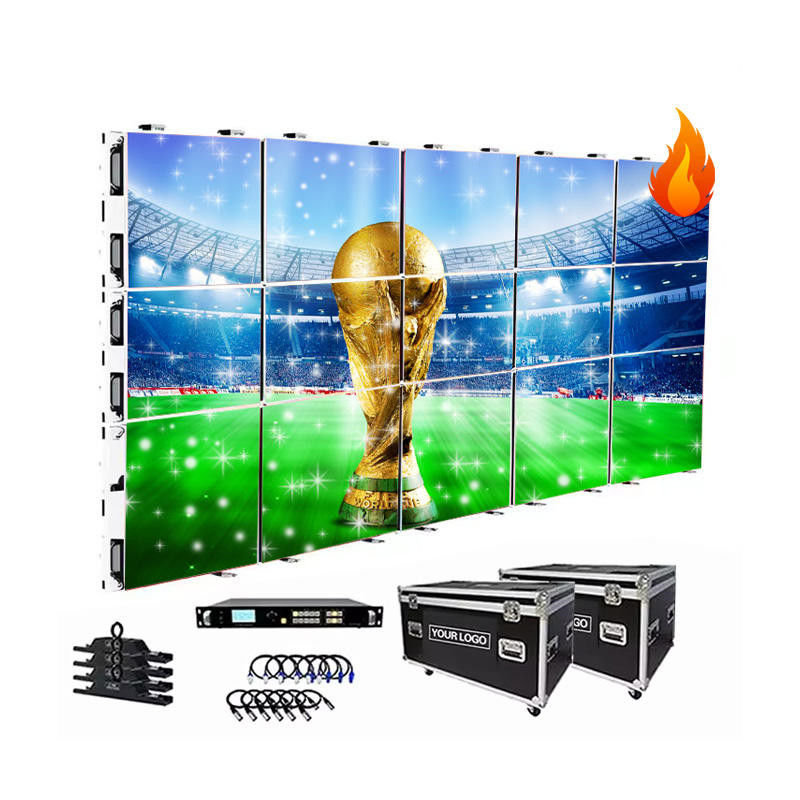

Outdoor RGB Led Screen Display Panel Board Rental Diecasting Aluminum
| Place of Origin | SHENZHEN |
|---|---|
| Brand Name | HSCX |
| Certification | CE ROHS FCC |
| Model Number | P2.604/p2.97/P3.91/p4.81 |
| Minimum Order Quantity | 1Set |
| Packaging Details | Fight case/Wooden case/Honeycomb Box |
| Delivery Time | 15-35 workdays |
| Payment Terms | L/C, T/T |
| Supply Ability | 100-500Set |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Produce Name | Rental LED Display | Pixels | 2.604/2.97/3.91/4.81 |
|---|---|---|---|
| Tube Chip Color | FULL COLOR | USE | OUTDOOR |
| LED Type | SMD1921 | Module Dimension | 250*250mm(W*H)(mm) |
| Refresh Rate | 3840HZ | Cabinet Weight | 7.5/15kg |
| Cabinet Dimension | 500*500/500*1000(W*H)(mm) | ||
| Highlight | Outdoor rgb led screen,Diecasting Aluminum rgb led screen,RGB led display panel board |
||
Product Description
Led display H&S LED Rental LED Display Outdoor led screen
Outdoor Rental LED Display
- P2.604, P2.976, P3.91, P4.81
- 500×500mm
- P2.604, P2.976, P3.91, P4.81
- 500×1000mm
Features:
1. Die-casting aluminum material cabinet with fast locks, light weight, easy to install and disassembled.
2. Wide viewing angle(H: 160°; V:160°).
3. Long life time(>100,000 Hours), cost-effective.
4. Competitive factory price.
5. Seamless splicing, no full screen display of patchwork fine point.
H&S LED offers a complete range of Indoor & Outdoor Rental LED Display products for events, stages, stores, television studios,boardrooms, professional AV installations and other venues. You can choose the right series for your rental applications. Pixel Pitch from P1.95mm to P4.81mm for Indoor Rental LED Display and from P2.976mm to P4.81mm for Outdoor Rental LED Screen.
Specifications:
|
RENTAL LED DISPLAY Product Paramenters |
||||
| Outdoor | ||||
| Model No. | p2.604 | P2.97 | P3.91 | P4.81 |
| Pixel Pitch (mm) | 2.604 | 2.97 | 3.91 | 4.81 |
| LED Type | SMD 1921 | SMD 1921 | SMD 1921 | SMD 1921 |
|
Module Dimension (W*H) (mm) |
250 x 250 | |||
|
Module Resolution (W*H) (Pixel) |
96 x 96 | 84 x 84 | 84 x 84 | 52 x 52 |
|
Pixel Density (pixel/㎡) |
147456 | 112896 | 65536 | 43264 |
| Scan Mode (S) | 32 | 21 | 16 | 13 |
|
Cabinet Dimension |
500 x 500 500 x 1000 (W*H)(mm) | |||
|
Cabinet Resolution (W*H) (Pixel) |
192 x 192 192 x 384 |
168 x 168 168 x 336 |
128 x 128 128 x 256 |
104 x 104 104 x 208 |
| Cabinet Material | Diecasting Aluminum | |||
| Cabinet Weight (Kg) | 7.5 / 15 | |||
| Best Viewing Distance(m) | 2.6 | 3 | 4 | 5 |
| Brightness | 4500-5500 nits | |||
|
Ingress Protection (Fron/Rear) |
IP65 | |||
| Viewing Angle | H:140° V:140° | |||
| Color Temperature | 3200-9500K | |||
| Gray Level | 14bit | |||
| Maximum power | 750W/m2 | |||
| Average power | 300W/m2 | |||
| Refresh frequency | >3840Hz | |||
|
Environment temperature range |
-20-60℃ | |||
| Humidity(working) | H:140° V:140° | |||
| Color Temperature | 10-95% | |||
| Input Voltage | AC110-220V±15% 50-60Hz | |||
| MTBF(Hours) | 50000 | |||
| Life Time(Hours) | 100000 | |||
Rental Leddisplay Stage Outdoor Rental Led Screen Indoor Rental Led ScreenPortable 500*500/1000mm Cabinet
Characteristics of LED Film Screen:
1, Die-casting Aluminum cabinet, light weight, easy to install or disassemble.
2, Easy and fast to set up the screen, convenient to change the site with flight cases.
3, IP65 grade, full waterproof, high protection level.
4, High Brightness (over 5000nits) , still clear in the direct sunlight.
5, With fast locks, flexiblely adjust the screen size according to requirements.
500*500/500*1000 Rental LED Screen
H&S LED’s newest rental LED screen design integrates numerous aesthetic elements, featuring high-strength die-casting aluminum for enhanced durability and delivering superior visual performance in high definition.
Lightweight and Thin Design
With a weight of just 7kg for the 500×500mm cabinet and 15kg for the 500×1000mm cabinet, Its lightweight design facilitates easy carrying, transportation, and installation, resulting in significant savings on labor costs.
Sleek and Robust Structure
With its reliable lock system including side lock, top lock and bottom lock, the cabinets can be connected tightly and quickly.The curved lock supports curved installation to make curved LED screens! Support Right-angle Installation.
High Definition, Better Visual Quality
The cabinet supports fine pixel pitches including P1.953, P2.604, P2.976, P3.91 and P4.91. High refresh rate from 3840Hz.
Seamless Display and Better Visual Effects
The LED cabinets seamlessly connect with each other, ensuring a smooth and continuous display without any visible gaps or interruptions. images and videos can be displayed consistently across the entire screen, maintaining visual integrity.
Curved Installation
Our LED display is perfect for curved setups, giving you the flexibility to adjust the curvature every 2.5° from -10° to 15°. you have the freedom to shape your display just the way you want it.
Tech Support:
H&S LED has professional technology support team to solve any tech problem for you, tech support covering installation, configuring, and anything about LED display, please check our contact us page
