ROHS Outdoor Waterproof LED Advertising Screen Display P3.076
Product Details:
Place of Origin: | SHENZHEN |
Brand Name: | HSCX |
Certification: | CE ROHS FCC |
Model Number: | P3.076 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | Fight case/Wooden case/Honeycomb Box |
Delivery Time: | 10-45 workdays |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000 m2 |
Detail Information |
|||
Pixel Pitch (mm): | P3.076 | LED Type: | SMD1415 |
---|---|---|---|
Refresh Rate (Hz): | >1920-3840 HZ | Grey Scale: | 16bit |
Scanning Mode: | 1:1 | Module Size (mmxmm): | 320mm * 160mm |
Cabinet Size: | 960mm*960mm | Optimum Viewing Angle: | H:140°, V:120° |
Usage: | OUTDOOR | Tube Chip Color: | FULL COLOR |
Display Function: | Video | Package Type:: | Honeycomb Carton Or Wooden Carton |
High Light:: | P3.076 Outdoor Fixed LED Display, 960*960mm Outdoor Fixed LED Display, P2.5Outdoor LED TV Screen | ||
Highlight: | P3.076 LED advertising screen display,ROHS advertising screen display,ROHS outdoor waterproof led screen |
Product Description
5500cd/M2 Outdoor Digital Display Board Outdoor LED Display Screen P3.076 Outdoor Fixed LED Display
1. Product Type:
We have indoor fixed installation/rental/small pixel pitch/outdoor advertising/front service/soft/transparent/stand poster led display,etc.
2. Customized Service :
We can customize the product according to customers' needs, you just need to provide the requirements details and also specify the lamp bead brand, ic brand.
3. Installation Support:
Diversified installation and high protection level . In addition, we have processional technical engineer provide remote assistance.
4. Quality Assurance:
▲Using Nationstar, Nichia, Cree,Kinglight gold and Copper Wire,big size rgb chips, long service life, low failure rate;
▲Original pvc plastic and even aluminum material, good toughness, high and low temperature resistance, V0 grade flame retardant, UVresistant.
5.Application :
shopping mall, large building, stage background , casino, carnival, concert, exhibition, chain shops and clothes shop, all kinds of industries.

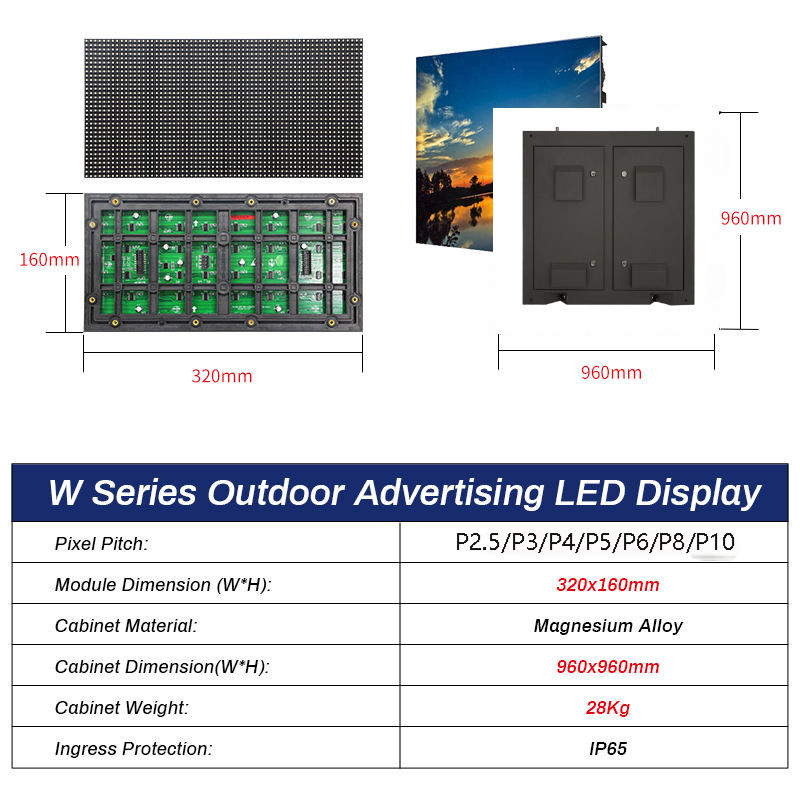

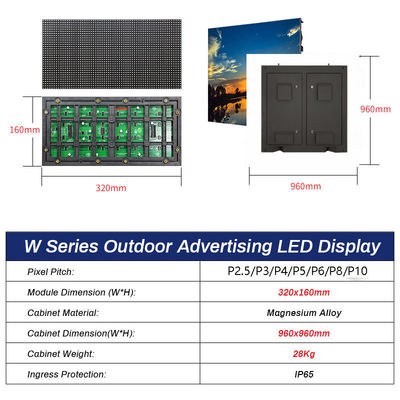

Led Display Specification
OutdoorLED Display | |
Model No. | P3.076 |
Pixel Pitch(mm) | 3.076 |
LED Type | SMD1415 |
Module Dimensio (W*H)(mm) |
320x160 |
Cabinet Dimension (W*H)(mm) |
960x960 |
Cabinet Material | Magnesium Alloy |
Cabinet Weight (Kg) | 28 |
Ingress Protection (Front/Rear) |
IP65 |
Brightness(nits) | 5500~6500 |
Viewing Angle | H:140°Vi140 |
Color Temperature |
3200~9500K |
Max Power Consumption (W/m²) |
750 |
Average Power Consumption (W/m²) |
300 |
Maintenance Method | Rear Maintenance(Our c Series Support Front Maintenance) |
Gray Level | 14bit |
Refresh Rate (Hz) | 3200~3840Hz |
Waterproof Level | IP65 |
Operating Temperature | -20°~60° |
Life Time (Hours) | 100000 |
Warranty | 3-5years |
Product Description
√ Ultra thin panel saves mounting space.
√ Simple front Installation and front maintenance.
√ Aluminum profile panel support wall-mounting frame easy installation.
√ Adjustable panel size based on module of 320 x 160mm.
√ Reducing the cost of steel structures by nearly 25%.
√ Vivid Picture with a Wide Field of View for Advertising.

Want to Know more details about this product
