Custom Ultra HD COB P1.25 1.25mm Led Display SMD Screen 2K 4K 8K

Name: Custom Ultra HD COB P1.25 1.25mm Led Display SMD Screen 2K 4K 8K
Brand: Shenzhen H&S Innovation Technology Co., Ltd
SKU: P1.25
Price: 1,100.00 USD
Availability: InStock

Product Details

Place of Origin: SHENZHEN

Brand Name: HSCX

Certification: CE ROHS FCC

Model Number: P1.25

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Fight case/Wooden case/Honeycomb Box

Delivery Time: 20-35 workdays

Payment Terms: L/C, T/T, D/A

Supply Ability: 1000Set

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                    Custom p1 25 led display, Ultra HD p1 25 led display, 8K indoor smd screen


Produce Name:	COB LED Display	Pixels:	1.25mm
LED Type:	COB	Pixel Density:	640000Pixel/m2
Module Size:	150*168.75mm	Cabinet Dimension:	600*337.5mm
IP Grade:	IP31	Refresh Rate:	3840hz
Viewing Angle:	160°/160°	Brightness:	≥1000cd/m²
Used:	Indoor Mounted On The Wall	Screen Size:	Customized

Produce Name:	COB LED Display
Pixels:	1.25mm
LED Type:	COB
Pixel Density:	640000Pixel/m2
Module Size:	150*168.75mm
Cabinet Dimension:	600*337.5mm
IP Grade:	IP31
Refresh Rate:	3840hz
Viewing Angle:	160°/160°
Brightness:	≥1000cd/m²
Used:	Indoor Mounted On The Wall
Screen Size:	Customized

Product Description

Ultra high definition led display

P1.25mm LED Video Display 600*337.5mm HD Video Wall

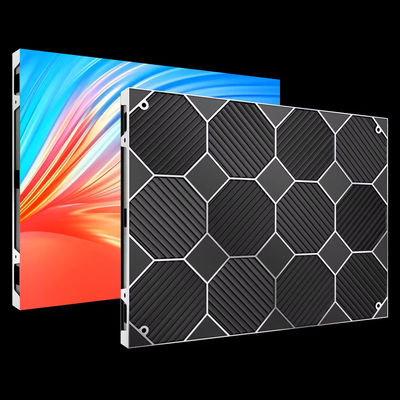

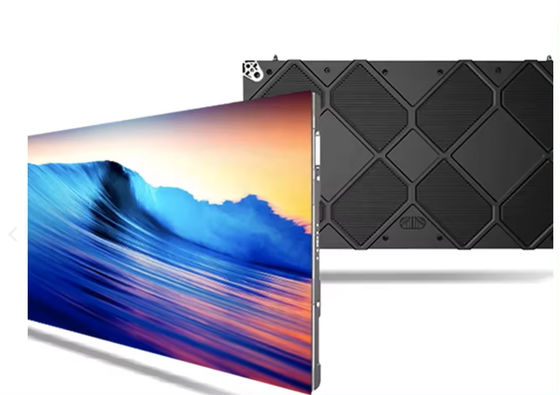

Indoor COB LED Display screen Cabinet 600*337.5mm

Indoor COB P0.93 P1.25 HD LED screen LED Display 600*337.5mm LED Screens

LED Video Wall Display Features:

1. Module size:150x168.75mm, compatible pitch: P0.93/P1.25

2. Cabinet size:600x337.5mm,16:9 aspect ratio.

3. Floating connection design between module and cabinet, the module could be fine-tuned.

4. Support double backup of power supply and control system

5. 2K/4K/8K dot to dot matching.

Parameters:

High definition Indoor COB Led Display Specification
pixel pitch	0.93	1.25	1.56	1.25	1.56	1.875
lamp	COB	COB	COB	SMD1010	SMD1212	SMD1515
module size(W×H)	150*168.75
module resolution(Pixel/m2)	160*180	120*135	96*108	120*135	96*108	80*90
physcial density(dot/m²)	1137777	640000	409600	640000	409600	284444
cabinet size(W×H)	600 * 337.5 mm
cabinet resolution(W*H)(Pixel)	640*360	480*270	384*216	480*270	384*216	320*180
scanning mode	1/60	1/45	1/48	1/45	1/48	1/30
cabinet Material	Diecasting Aluminum
cabinet weight(kg)	5
best viewing distance(m)	0.9	1.25	1.56	1.25	1.56	1.87
gray scale(bit)	14-16
IP Grade	IP31
viewing angle	H:160 V:160
brightness	600-900cd/㎡
contrast ratio	≥8000:1
color temperature	3200-9300k
refreshrate	≥3840hz
Maximum power	600W/M2
Average power	200W/M2
Operating temperature	-20-60℃
Operating Humidity	10-95%RH
Input Voltage	AC110-220V±15% 50-60Hz
MTBF(Hours)	50000
Life Time(Hours)	100000

1,COB LED display: Easy to clean with water, eliminating the need for masks, dust, or cloths.

2,All-weather excellence: Utilizes triple protection for superb performance against water, moisture, corrosion, dust, static, oxidation, and UV effects.

3,High Resolution: Provides crisp and clear images, ideal for viewing detailed content and graphics.

4,Brightness and Contrast: Offers high brightness levels and excellent contrast ratios, ensuring visibility even in well-lit environments.

5,Long Lifespan: LED displays have a long operational lifespan, requiring minimal maintenance and replacement.

6,Flexibility: Can be customized in terms of size, shape, and aspect ratio to fit various indoor spaces and applications.

7,Versatility: Suitable for a wide range of indoor applications including retail stores, corporate offices, command centers, broadcast studios, and more.
