ROHS Smart City Pole P4 Outdoor Led Display Screen SMD2121
Product Details:
Place of Origin: | SHENZHEN |
Brand Name: | H&S LED |
Certification: | CE ROHS FCC |
Model Number: | P4 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Packaging Details: | Fight case/Wooden case/Honeycomb Box |
Delivery Time: | 15-35 workdays |
Payment Terms: | L/C, T/T, D/A, T/T, Western Union, MoneyGram |
Supply Ability: | 500Set/30DAY |
Detail Information |
|||
Produce Name: | P4 LED Display | Pixels: | 4MM |
---|---|---|---|
Tube Chip Color: | FULL COLOR | LED Type: | SMD2121 |
Module Dimension: | 256*128mm | Pixel Density: | 62500Pixel/m2 |
Cabinet Dimension: | 768*1536mm | Best Viewing Distance: | 4m |
Cabinet Material: | Iron | Ingress Protection: | IP65 |
Brightness: | ≥5500cd/m² | Life Time: | 100000(Hours) |
Highlight: | SMD2121 p4 outdoor led display,ROHS p4 outdoor led display,Pole p4 led display |
Product Description

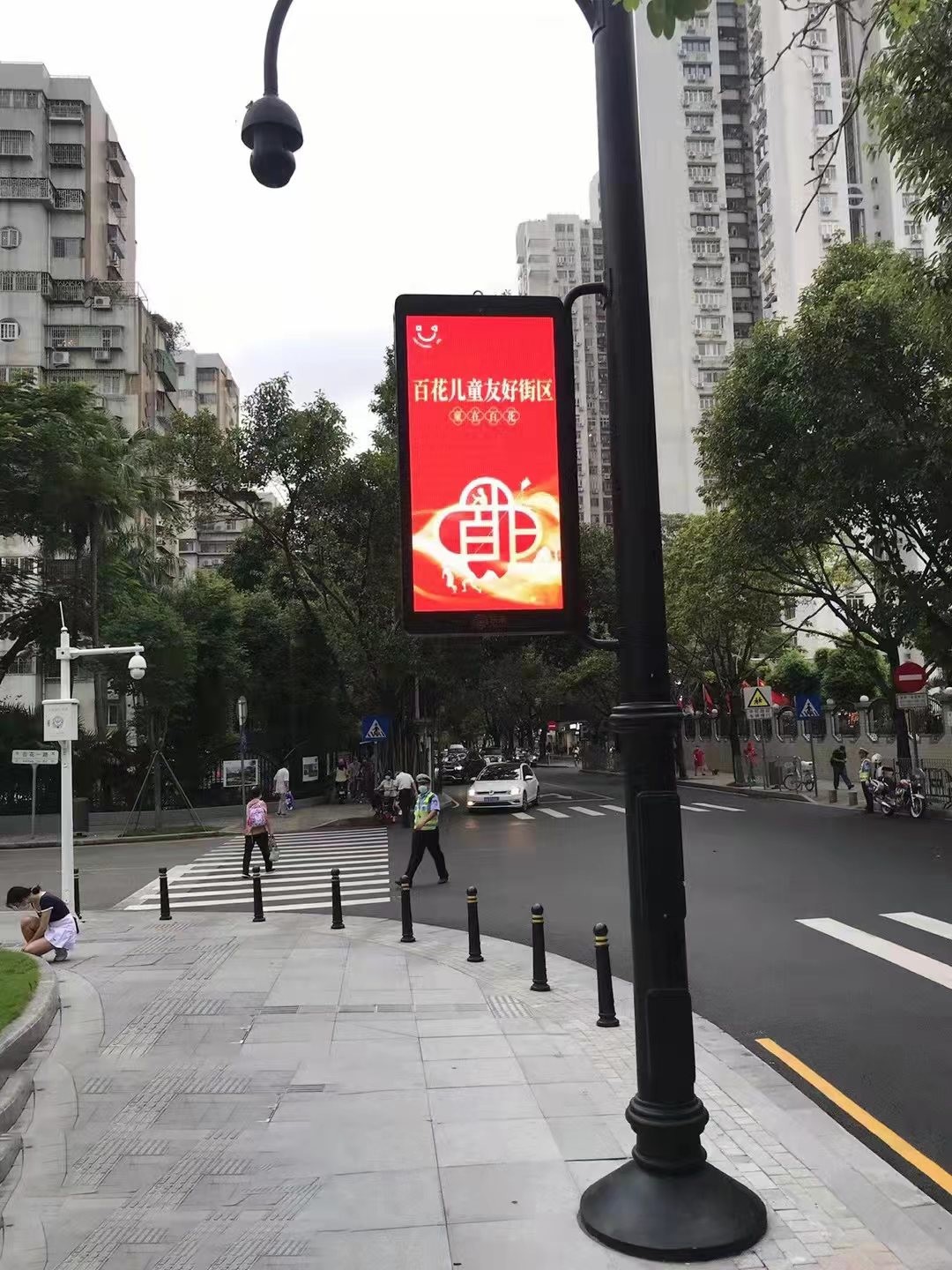

led pole display
Waterproof Street lamp billboard WIFI/RJ45/4G control LED lamppost outdoor led screen pole
FEATURES:
Floor standing series is commercial grade LCD screen technology with Android OS or Windows OS. They are widely used in public environments, including airport, hotel, Bank, Metro station.
◎ Diversified Terminal Access,3G, WiFi, and Fiber
◎ Large-scale Digital Advertising Network Supervised to One Distributing System For UnifiedAdministration
◎ Send video or pictures by intelligent terminal APP to realize intelligent interactive with Smart Advertising player
◎ Automatic Brightness and Temperature Adjustment Design by MonitorSystem
◎ With IP level 65, screen can be used outdoors even against bad weather
◎ High Brightness and Gorgeous Colorful Display of Pictures and Videos
◎ Super Thin Cabinet and Light Weight with Fashion Shape
◎ High Value Solution with Low Maintenance and Running Cost
◎ Large-scale Digital Advertising Network Supervised to One Distributing System For UnifiedAdministration
◎ Send video or pictures by intelligent terminal APP to realize intelligent interactive with Smart Advertising player
◎ Automatic Brightness and Temperature Adjustment Design by MonitorSystem
◎ With IP level 65, screen can be used outdoors even against bad weather
◎ High Brightness and Gorgeous Colorful Display of Pictures and Videos
◎ Super Thin Cabinet and Light Weight with Fashion Shape
◎ High Value Solution with Low Maintenance and Running Cost
Parameters:
Smart city led light pole screen (Panel Specification) |
||||
Use environment | OUTDOOR | |||
Product model | Ph2.5led pole screen | Ph3led pole screen | Ph3.84led pole screen | Ph4led pole screen |
Pixel spacing | 2.5mm | 3mm | 3.84mm | 4mm |
Display size | 480mm*800mm | 576mm*1152mm | 600mm*1200mm | 512mm*1024mm |
Brightness | ≧5500cd | ≧5500cd | ≧6200cd | ≧6200cd |
Waterproof grade | IP65 | IP65 | IP65 | IP65 |
Weight | about17.6kg | about29kg | about31.9kg | about25.6kg |
Refresh rate | 1920/3840hz | 1920/3840hz | 1920/3840hz | 1920/3840hz |
Control mode | Asynchronous Control (3G/4G/WI FI) | |||
Input power supply | AC100/240V50/60HZ | |||
working temperature | -20°C~ +50°C | |||
Working humidity | 10-90% RH | |||
Service life | More than 100000 hours |
● Support optional IR touch, Capacitive touch, printer, NFC, camera, etc to meet variety of request from the market.
● Support 7*24 Hours long time playback
● FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Backlight, Different screen diagonal ,
● Metal housing have good heat dissipation effect and tempered glass can protect screen effectively.
● Supporting connecting WIFI, Ethernet, 4G(option) to achieve different Internet connection access.
◎ Intelligent control
With the LAN, wi-fi, 4G intelligent management core modules inside, the advertisement show can
be changeable
◎ Time and labor-saving
Once it is successfully installed, its advertising content can be changed at any time, unlike those
traditional static billboards which need to be disassembled frequently, it contributes to high time
and labor saving
◎ High IP Level
With front/back IP level 65/54 , screen can be used outdoor even against bad weather
◎ Easy maintenance
Side-open and back-open maintenance render it more optional installation positions
