Shenzhen H&S Innovation Technology Co., Ltd info@hscxled.com 86-134-2892-1577
Product Details
Place of Origin: shenzhen,China
Brand Name: HSCXLED
Certification: KC CE ROHS FCC CCC ISO9001
Model Number: P3.076
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: Fight case/Wooden case/Honeycomb Box
Delivery Time: 25-35 workdays
Payment Terms: L/C,T/T
Supply Ability: 500Set/30DAY
Produce Name: |
Light Pole Led Screen |
Model: |
P3.076 LED |
Pixel Density: |
11111 Pixel/m2 |
Model Size: |
192x192mm/320*160mm |
Panel Size: |
480*960mm/640*1280mm/customized |
Brightness: |
≥6000cd/m² |
Best Viewing Distance: |
≥3m |
Waterproof Level: |
IP65 |
Refresh Rate: |
≥3840Hz |
Weight: |
35kg |
Life Span: |
100,000 Hours |
Product Type: |
Double Sided Led Display |
Produce Name: |
Light Pole Led Screen |
Model: |
P3.076 LED |
Pixel Density: |
11111 Pixel/m2 |
Model Size: |
192x192mm/320*160mm |
Panel Size: |
480*960mm/640*1280mm/customized |
Brightness: |
≥6000cd/m² |
Best Viewing Distance: |
≥3m |
Waterproof Level: |
IP65 |
Refresh Rate: |
≥3840Hz |
Weight: |
35kg |
Life Span: |
100,000 Hours |
Product Type: |
Double Sided Led Display |

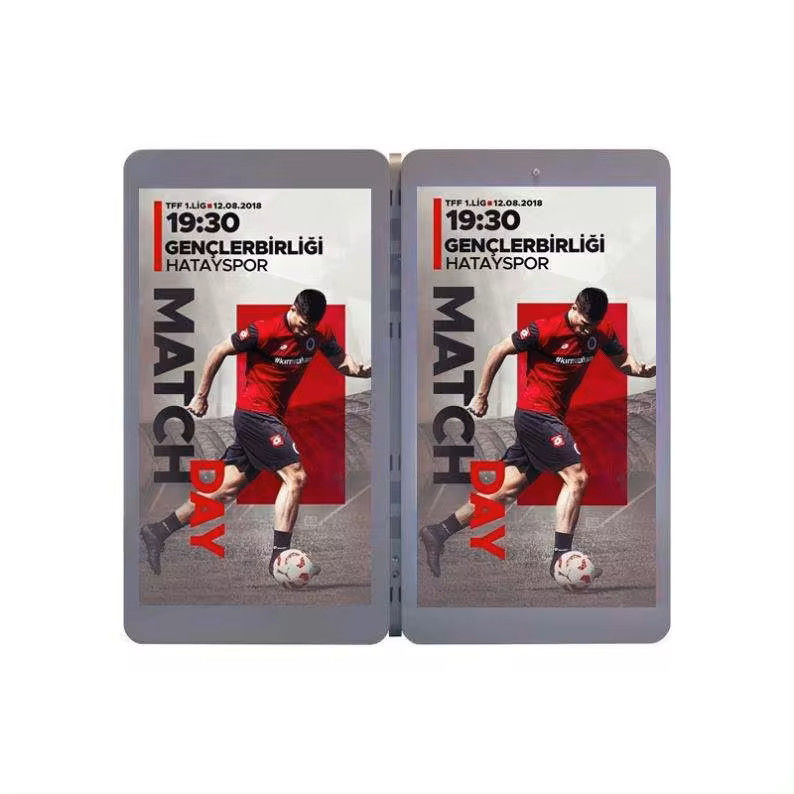

LED intelligent light pole display, can be used for a variety of outdoor commercial display. It has a super high protection level of multiple waterproof design, can adapt to all kinds of bad weather and environment, in addition, it also has dustproof, UV protection, high temperature resistance and other properties, effectively extend the service life. With high brightness and clarity, clear picture, good stability. Good heat dissipation performance, the box can be directly naked, no need to install air conditioning to assist heat dissipation, saving costs.
Street Pole LED Display Paramenters:
| IP65 Street light Pole LED Display | ||||||
| Pixel Pitch(mm) | P2.5mm | P3mm | P3.33mm | P3.84mm | P4mm | P5mm |
| LEDs | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 |
| Module size(mm) | 320*160 | 192*192 | 200*200 | 200*200 | 320*160 | 320*160 |
| Driving Method | 1/16 scan | 1/16 scan | 1/13 scan | 1/13 scan | 1/10 scan | 1/8 scan |
| Display size(mm) | 480*480 | 384*768 | 400*800 | 400*800 | 512*1024 | 640*1280 |
| 640*1280 | 576*1152 | 600*1200 | 600*1200 | 768*1536 | ||
| 768*1536 | 640*1280 | |||||
| Cabinet | Optional: Sealed waterproof iron cabinet, Die -Casting aluminum cabinet, Aluminum profile cabinet; Single or double sided/Customized |
|||||
| Brightness(cd/m2) | >=5000cd | >=5000cd | >=6200cd | >=6200cd | >=6200cd | >=6200cd |
| View Angle | H: 160°/ V: 160° | |||||
| Grayscale | 14-16 bit | |||||
| Refresh Rate | 3840Hz | |||||
| Power consumption | Max.: 830W/m2, Average: <400W/m2 | |||||
| Working Temperature | -20° +60° | |||||
| Humidity | 10%-95% | |||||
| Working voltage | Input: AC100-240V 50/60HZ, Output: DC 5V | |||||
| IP grade | IP65 | |||||
| Life time | >100,000hrs | |||||
led display for outdoor Product Feature:
Commercial advertising LED display screen.
Stadium perimeter LED display screen.
Mobile trailer LED display screen for mobile media.
Shopping mall LED display screen for logo showing.
Bank & stock exchange LED display screen for rates showing.
Train & bus station LED display screen.
Air port LED display screen.
Telecommunication LED display screen system for information showing and instruction.
