Indoor Shelf Creative LED Display P1.8 Video Advertising Screen For Supermarket
| Place of Origin | shenzhen,China |
|---|---|
| Brand Name | H&S LED |
| Certification | CE ROHS FCC |
| Model Number | P1.875 |
| Minimum Order Quantity | 10set |
| Packaging Details | Fight case/Wooden case/Honeycomb Box |
| Delivery Time | 25-35 workdays |
| Payment Terms | L/C, T/T |
| Supply Ability | 1000Set |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Shelf LED Display | Model | P1.875 |
|---|---|---|---|
| Size | 720*60mm | Pixel Pitch | 1.875mm |
| Cabinet Size | 725*65*20mm | Refresh Rate | ≥3840Hz |
| Working Voltage | DC24V | Life Time | 100000H |
| Highlight | P1.8 Shelf Creative LED Display,Supermarket Shelf Creative LED Display,Supermarket Shelf Led Display |
||
Product Description

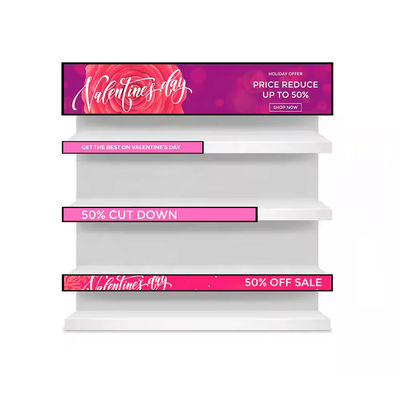

Indoor shelf LED display screen
Application:
shopping mall, large building glass wall, stage background led display, casino, carnival, concert, exhibition, chain shops and clothes shop, even in bnak window, etc.
Parameters:
| Product Paramenters-SHELF LED DISPLAY | ||
| Mane | SHELF LED DISPLAY | |
| Model No. | P1.875 | |
| Size | 480*60mm / 720*60mm /Customized | |
| pixel pitch | 1.875mm | |
| lamp | SMD1515 RGB | |
| Module Size | 240*60mm | |
| Module Resolution | 128*32 dot | |
| Cabinet Dimension | 485*65*20mm | 725*65*20mm |
| Cabinet Resolution | 256*32 dot | 384*32 dot |
| Module arrangement | 2*1 | 3*1 |
| Pixel Density(dot/m2) | 264444 | |
| Brightness(cd/n2) | 500~800 | |
| Viewing Angle | H:160°/ V:160° | |
| planeness | <0.2mm | |
| Maximum contrast | >5000:1 | |
| Refresh Rate | ≥3840Hz | |
| Working Voltage | DC24V | |
| Maximum power | 13W/PCS | 19.5W/PCS |
| Average power | 4W/PCS | 6W/PCS |
| Environment temperature range | -20-60℃ | |
| Humidity(working) | 10-95%RH | |
| MTBF(Hours) | 50000 | |
| Life Time(Hours) | 100000 | |

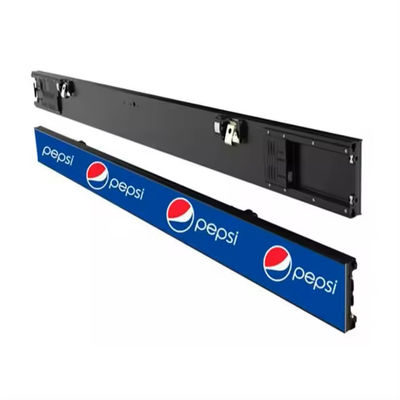

SHELF LED DISPLAY
MODULE
Module Back Side
Module Back Side
Module Front Side
Module Front Side
WATERPROOF
PRODUCT DETAIL
CONNECTION METHOD
H&S LED shelf led display router application connection diagram. Using playing software updates playlist to each display. Each screen also can be controlled and managed via LAN and Internet.
PACKING LIST
H&S LED Shelf LED Display Power Supply Box Controller
Power Cable With Screen Power Cable With Power Box Signal Cable
INSTALLATION METHOD
HOW TO STITCH TOGETHER SEAMLESSLY
Join screen with straight plate by M3x6 screws
