24V Supermarket Electronic Shelf Led Display Screen 480x60mm OEM

Product Details

Place of Origin: shenzhen,China

Brand Name: H&S LED

Certification: CE ROHS FCC

Model Number: P1.875

Payment & Shipping Terms

Minimum Order Quantity: 10set

Packaging Details: Fight case/Wooden case/Honeycomb Box

Delivery Time: 15-35workday

Payment Terms: L/C, T/T

Supply Ability: 1000Set

Get Best Price
Product Details
Highlight:

24V Supermarket Shelf Led Display

,

24V Shelf Led Display

,

24V led display shelf

Name:
Shelf LED Display
Model:
P1.875
Size:
480*60mm
Pixel Pitch:
1.875mm
Cabinet Size:
485*65*20mm
Refresh Rate:
≥3840Hz
Working Voltage:
DC24V
Life Time:
100000H
Name:
Shelf LED Display
Model:
P1.875
Size:
480*60mm
Pixel Pitch:
1.875mm
Cabinet Size:
485*65*20mm
Refresh Rate:
≥3840Hz
Working Voltage:
DC24V
Life Time:
100000H
Product Description

  SHELF LED DISPLAY

Indoor shelf LED display screen
Application:
shopping mall, large building glass wall, stage background led display, casino, carnival, concert, exhibition, chain shops and clothes shop, even in bnak window, etc.



Parameters:



Product Paramenters-SHELF LED DISPLAY
Name SHELF LED DISPLAY
Model No. P1.875
Size 480*60mm / 720*60mm /Customized
pixel pitch 1.875mm
lamp SMD1515 RGB
Module Size 240*60mm
Module Resolution 128*32 dot
Cabinet Dimension 485*65*20mm 725*65*20mm
Cabinet Resolution 256*32 dot 384*32 dot
Module arrangement 2*1 3*1
Pixel Density(dot/m2) 264444
Brightness(cd/n2) 500~800
Viewing Angle H:160°/ V:160°
planeness <0.2mm
Maximum contrast >5000:1
Refresh Rate ≥3840Hz
Working Voltage DC24V
Maximum power 13W/PCS 19.5W/PCS
Average power 4W/PCS 6W/PCS
Environment temperature range -20-60℃
Humidity(working) 10-95%RH
MTBF(Hours) 50000
Life Time(Hours) 100000

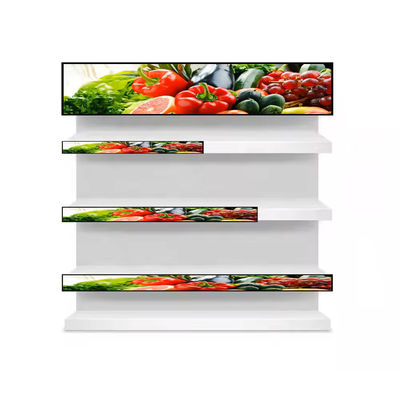

24V Supermarket Electronic Shelf Led Display Screen 480x60mm OEM 0

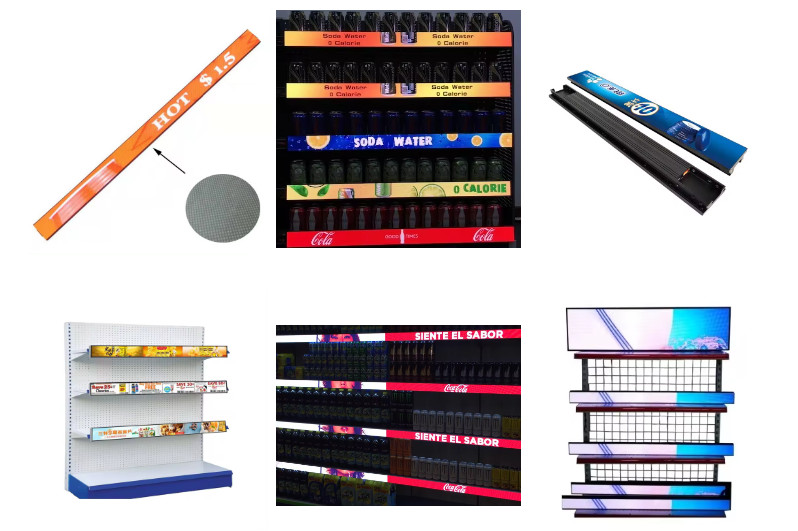

24V Supermarket Electronic Shelf Led Display Screen 480x60mm OEM 1

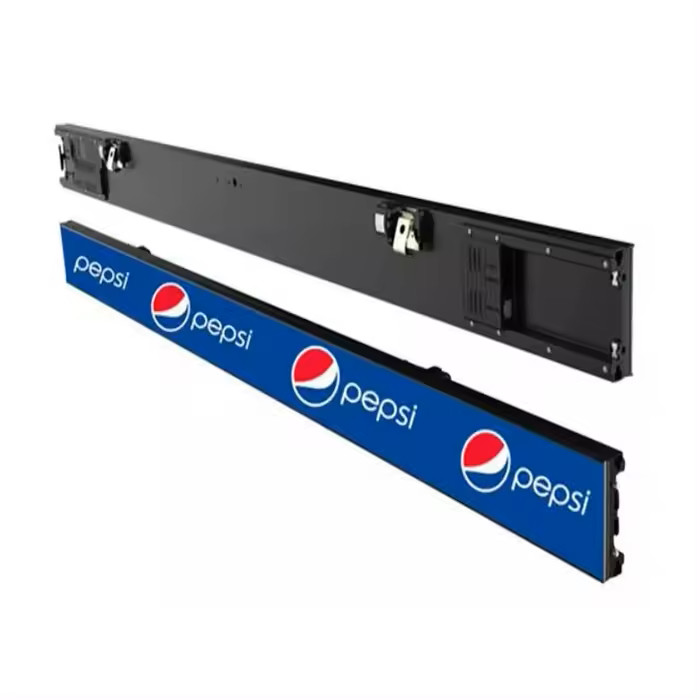

24V Supermarket Electronic Shelf Led Display Screen 480x60mm OEM 2

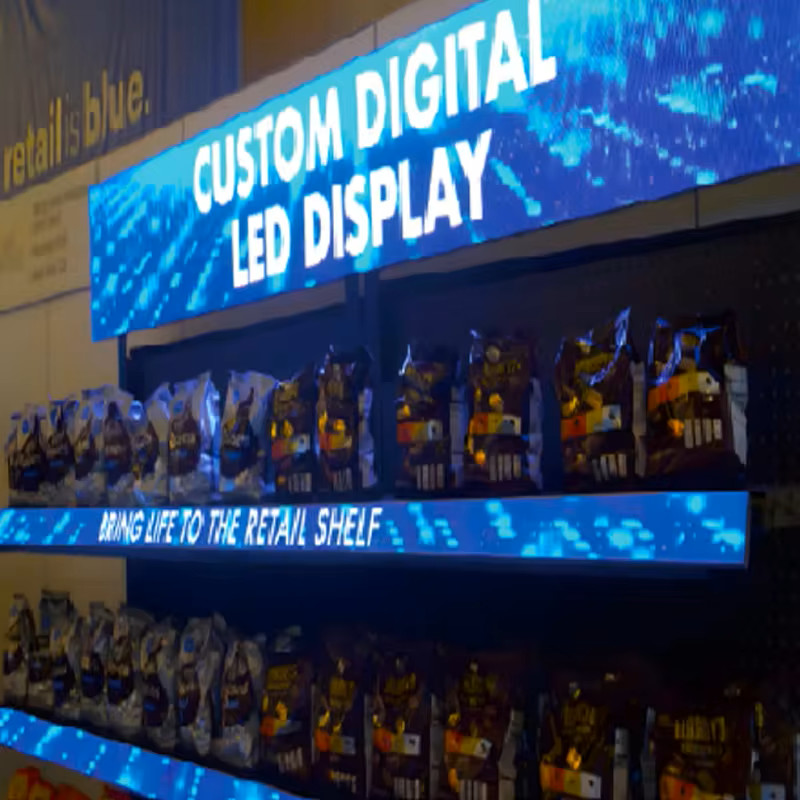

24V Supermarket Electronic Shelf Led Display Screen 480x60mm OEM 3

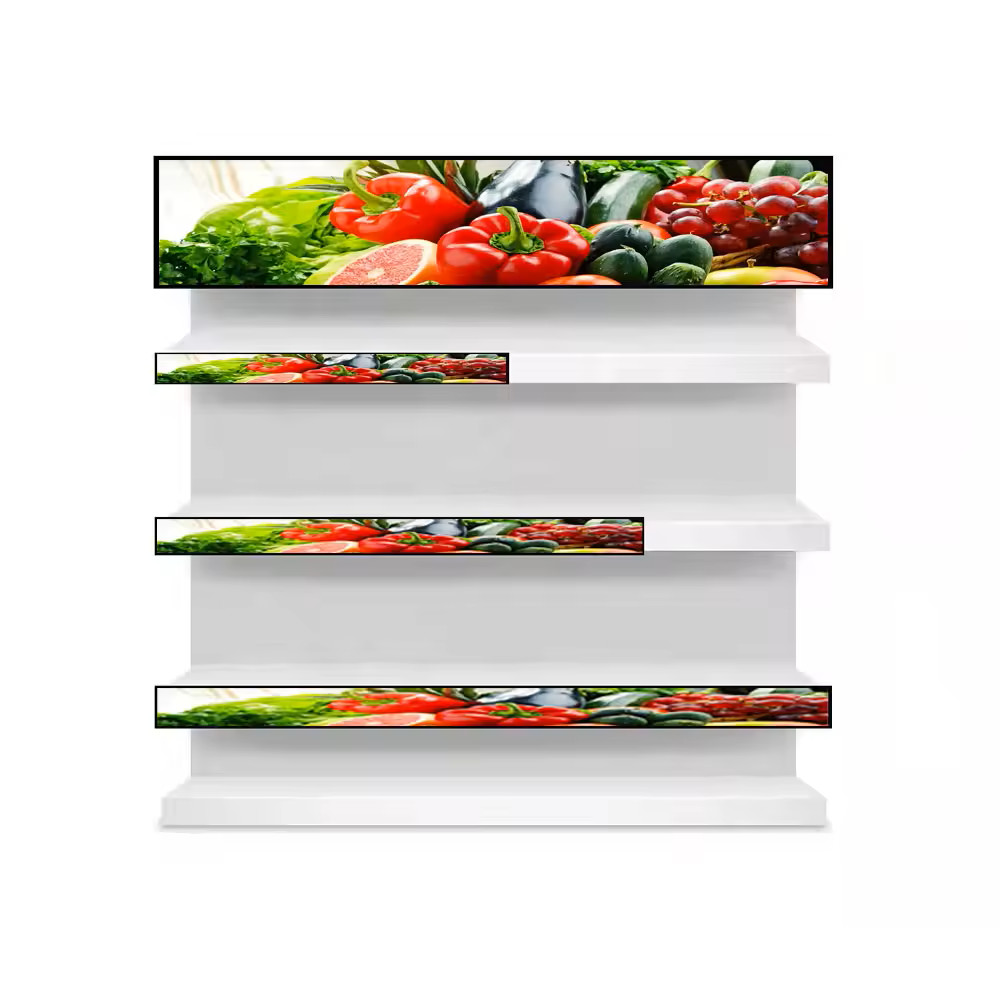

24V Supermarket Electronic Shelf Led Display Screen 480x60mm OEM 4

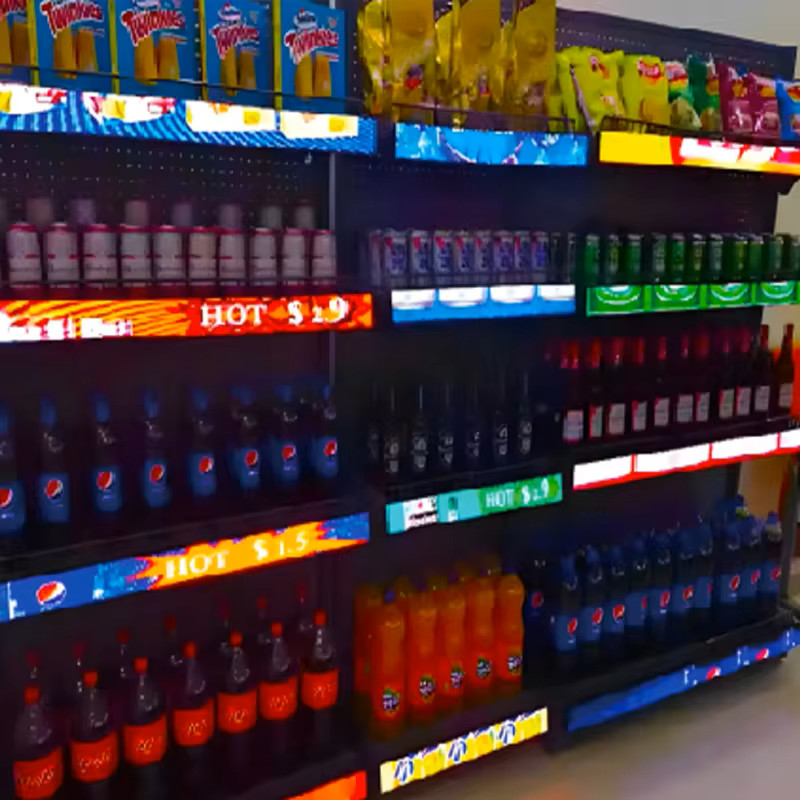

24V Supermarket Electronic Shelf Led Display Screen 480x60mm OEM 5
