P3.84 Outdoor Led Advertising Board Screen Street Lights Display ODM
Product Details:
Place of Origin: | shenzhen,China |
Brand Name: | H&S LED |
Certification: | CE ROHS FCC |
Model Number: | P3.84 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Packaging Details: | Fight case/Wooden case/Honeycomb Box |
Delivery Time: | 15-35workday |
Payment Terms: | L/C, T/T |
Supply Ability: | 500Set/30DAY |
Detail Information |
|||
Model: | P3.84 LED | Pixel Density: | 67816dot/ ㎡ |
---|---|---|---|
Model Size: | 200x200mm | Panel Size: | 600x1200x90mm |
Brightness: | ≥6000cd/m² | Best Viewing Distance: | 3.8m |
Waterproof Level: | IP65 | Refresh Rate: | ≥3840Hz |
Weight: | 35kg | Life Span: | 100,000 Hours |
Highlight: | P3.84 outdoor led advertising board,ODM outdoor led advertising board,ODM outdoor advertising screen |
Product Description
High Quality Waterproof Light Pole Street Screen Advertising Display Outdoor LED Screen Display

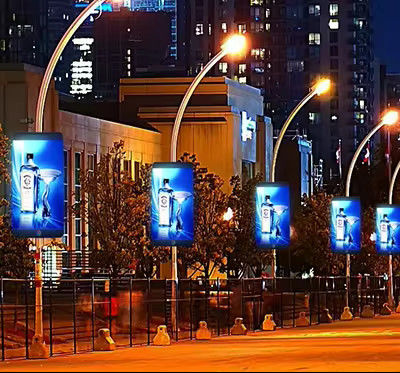

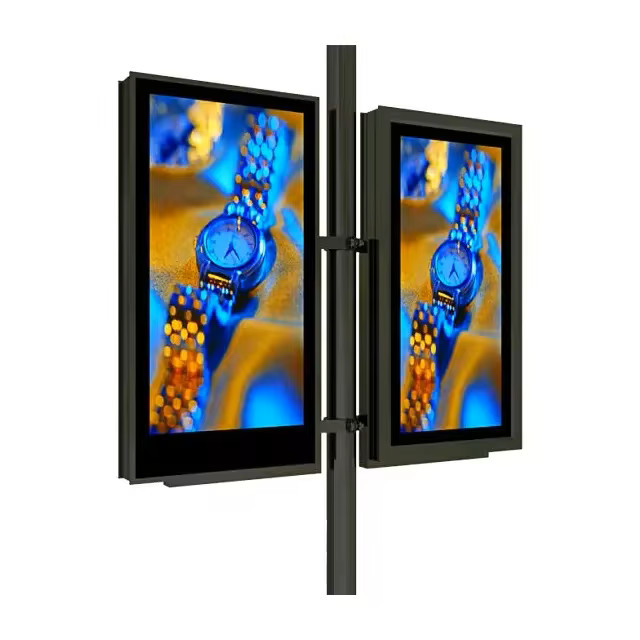

Street Light Pole
LED intelligent light pole display, can be used for a variety of outdoor commercial display. It has a super high protection level of multiple waterproof design, can adapt to all kinds of bad weather and environment, in addition, it also has dustproof, UV protection, high temperature resistance and other properties, effectively extend the service life. With high brightness and clarity, clear picture, good stability. Good heat dissipation performance, the box can be directly naked, no need to install air conditioning to assist heat dissipation, saving costs.
Product Feature:
1. Smart control
Built-in LAN, WIFI, 4G intelligent management core module, so that advertising can be freely controlled;
2. Save time and effort
A successful installation, advertising text and text information will be replaced at will, save the trouble of disassembly and installation of billboards, but also save resources;
3. High protection level
Front and rear IP65/IP54 high protection level, safe to use in all kinds of outdoor weather;

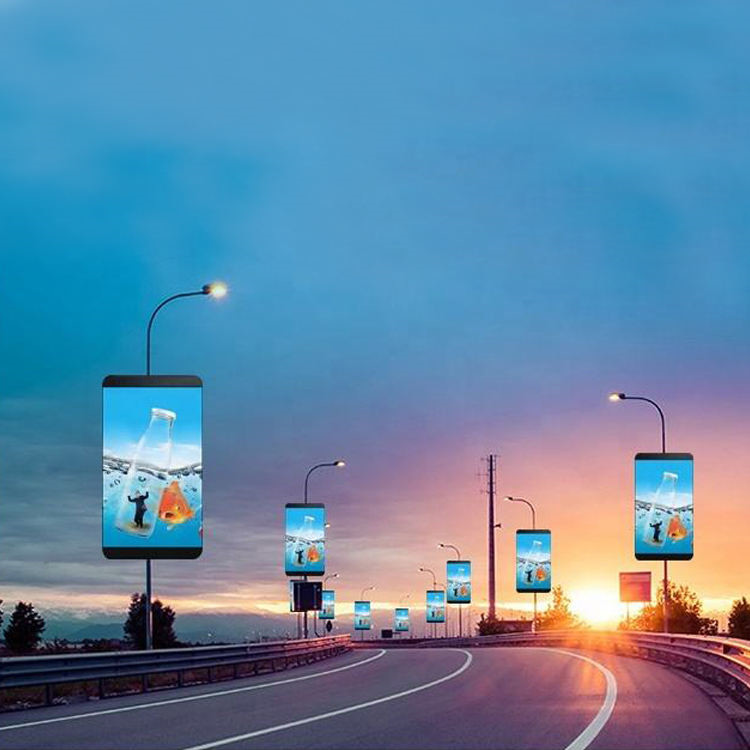

Application scenarios:
See more at village, hospital, road pedestrian street, park, hotel, shopping mall, parking lot, subway station, gas station, auto 4 s shops, tourist attractions, bus station, etc., used for outdoor lighting information dissemination, such as the side of the road traffic intersection safety tips, pedestrian street brand product activity information publicity, tourist attractions advertising diction, etc.
Produce Size:
Technical parameters:
Environment
|
OUTDOOR
|
|||
Model
|
P2.94
|
P3.33
|
P3.84
|
P4
|
Pixel Pitch
|
2.94mm
|
3.33mm
|
3.84mm
|
4mm
|
LED Configuration
|
SMD1415
|
SMD1921
|
SMD1921
|
SMD1921
|
Pixel Density
|
115620 dot/ ㎡
|
90180dot/ ㎡
|
67816dot/ ㎡
|
62500dot/ ㎡
|
Module Size
|
200x200mm
|
200x200mm
|
200x200mm
|
256x128mm
|
Module Resolution
|
68x68dot
|
60x60dot
|
52x52dot
|
64x32dot
|
Display size
|
40inch
|
60inch
|
60inch
|
60inch
|
Cabinet Size
|
400x800x90mm
|
600x1200x90mm
|
600x1200x90mm
|
768x1536x90mm
|
Cabinet Resolution
|
136x272dot
|
180x360dot
|
156x312dot
|
192x384dot
|
Weight
|
25kg
|
35kg
|
35kg
|
45kg
|
IP Rating
|
IP65
|
IP65
|
IP65
|
IP65
|
Scanning Mode
|
16s
|
8s
|
8s
|
8s
|
Brightness
|
6500CD/ ㎡
|
6000CD/ ㎡
|
6000CD/ ㎡
|
N5000CD/ ㎡
|
Viewing Angle
|
120°
|
120°
|
120°
|
120°
|
View Distance
|
>2.5m
|
>3m
|
>3m
|
>4m
|
Gray Scale
|
Mbit
|
Mbit
|
Mbit
|
Mbit
|
Display Scale
|
16.7M
|
16.7M
|
16.7M
|
16.7M
|
Max.Power Consumption
|
600W
|
800W
|
800W
|
1200W
|
Ave.Power Consumption
|
200W
|
230W
|
230W
|
400W
|
Refresh Frequency
|
>960HZ
|
>960HZ
|
>960HZ
|
>960HZ
|
Brightness Adjustment
|
|
0-100 levels adjustable
|
|
|
Control Mode
|
|
Asynchronous Control (3G/4G/WIFI)
|
|
|
Support Input
|
|
Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
|
|
|
Input Power
|
|
AC100/240V50/60HZ
|
|
|
Operating Temperature
|
|
-20°C~+50°C
|
|
|
Operating Humidity
|
|
10-90% RH
|
|
|
Life Span
|
|
100,000hours
|
Commercial advertising LED display screen.
Stadium perimeter LED display screen.
Mobile trailer LED display screen for mobile media.
Shopping mall LED display screen for logo showing.
Bank & stock exchange LED display screen for rates showing.
Train & bus station LED display screen.
Air port LED display screen.
Telecommunication LED display screen system for information showing and instruction.
