Ultra Thin Stage Background Programmable Display Board FHD Led Display DJ Booth
Product Details:
| Place of Origin: | shenzhen,China |
| Brand Name: | H&S LED |
| Certification: | CE ROHS FCC |
| Model Number: | P2.97 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | Fight case/Wooden case/Honeycomb Box |
| Delivery Time: | 15-35workday |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Model: | P2.97 | Pixel Pitch(mm): | 2.97mm |
|---|---|---|---|
| Pixel: | 112,896dots/m2 | LEDs Package: | SMD2121 |
| Scan: | 1/28 | Refresh Rate: | ≥3840Hz |
| Grey Scale (bit): | 16bit | Module Dimension: | 250*250mm(W*H)(mm) |
| Cabinet Dimension: | 500*500/500*1000(W*H)(mm) | Cabinet Weight: | 7/13kg |
| Highlight: | FHD Led programmable display board,DJ Booth programmable display board,DJ Booth fhd led display |
||
Product Description
H&S LED Rental Led Display
The Rental Led Display is the best event technology LED video panel product in its price range. The series is available in the following pixel densities: P2.6, P2.9, P3.9 and P4.8.
Warranty:
Each component of our LED monitors go through strict stress and operational tests before we deliver them to the customer. Thanks to the high quality, we can give our LED products a three-year warranty.
Certified:
CE and ETL certifications guarantee high quality and control.
● Stacking Installation
● Hanging Installation
● Mix Seamless Splicing
Hang or stack cabinets with the same hardware. Universal header and floor stand hardware that makes it easy to adjust installation styles when environments require something unexpected.
Safe:
Edge protection at the bottom of each cabinet to prevent pixel damage during assembly.
Precise arc:
9 seconds to replace angle block, arcing faster. From -5 °(convex) to +10°(concave), wide range of curving, creative screen shapes and sizes.
Deep colors:
Superb color reproduction and the widest 65 536-level gray scale tone.
Fast:
The market's fastest, strongest and most accurate locking mechanism.
Exact:
The cast aluminum panels, combined with the best locking mechanism allows for a large and seamless video wall.
The cast aluminum panels, combined with the best locking mechanism allows for a large and seamless video wall.
Modular:
Each tile is modular in design with unique rigging capabilities.
Each tile is modular in design with unique rigging capabilities.
IP65:
H&S LED Rental Led Display is optimized for outdoor use front and rear. They are resistant to rain, frost, snow, sleet and severe wind loads.
Resistant:
The cast aluminum construction with high quality materials and the best electronic components for demanding indoor and outdoor use.
The cast aluminum construction with high quality materials and the best electronic components for demanding indoor and outdoor use.
Smooth playback:
3840 Hz refresh rate to make sure that the live audience and viewers at home will enjoy a flicker-free and smooth moving image playback.
Creative Shapes:

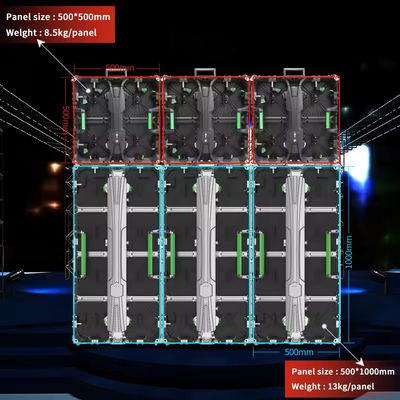

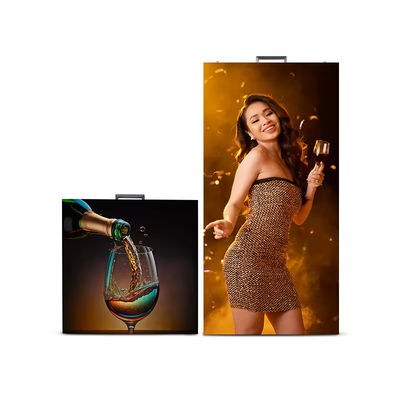

With two distinct sizes available (1000mm x 500mm and 500mm x 500mm), let H&S LED Rental Led Display unlock the creative possibilities.
Innovative:
The panel structure of the same size in several different pixel density.
Stage Touring:
From beautiful stage touring LED panel to multi-performance high-tech productions, we cover an expanse of services to meet a huge array of event requirements and needs.
Specification:
|
Model
|
P2.604
|
P2.97
|
P3.91
|
P4.81
|
|
Pixel Pitch(mm)
|
2.604
|
2.97
|
3.91
|
4.81
|
|
Pixel Matrix Per Sq.m
|
147,456dots
|
112,896dots
|
65,536dots
|
43,264dots
|
|
LEDs package
|
SMD1515
|
SMD2121
|
SMD2121
|
SMD2121
|
|
Brightness (cd/㎡)
|
indoor≥900cd/㎡ outdoor≥5000cd/㎡
|
indoor≥900cd/㎡outdoor≥5000cd/㎡
|
indoor≥900cd/㎡outdoor≥5000cd/㎡
|
indoor≥900cd/㎡outdoor≥5000cd/㎡
|
|
Scan
|
1/32
|
1/28
|
1/16
|
1/13
|
|
Module Dimension
|
250*250mm
/0.82*0.82ft |
250*250mm
/0.82*0.82ft |
250*250mm
/0.82*0.82ft |
250*250mm
/0.82*0.82ft |
|
Cabinet Dimension
|
500*500*77mm
/500*1000*77mm |
500*500*77mm
/500*1000*77mm |
500*500*77mm
/500*1000*77mm |
500*500*77mm
/500*1000*77mm |
|
The Module Resolution
|
96*96dots
|
84*84dots
|
64*64dots
|
52*52dots
|
|
Cabinet Material
|
Die Casting Aluminum
|
Die Casting Aluminum
|
Die Casting Aluminum
|
Die Casting Aluminum
|
|
Cabinet Weight
|
7KG/13KG
|
7KG/13KG
|
7KG/13KG
|
7KG/13KG
|
|
Max. Power Consumption
|
800W
|
800W
|
800W
|
800W
|
|
Ave. Power Consumption
|
200-300W
|
200-300W
|
200-300W
|
200-300W
|
|
Service Access
|
Rear
|
Rear
|
Rear
|
Rear
|
|
Refresh Rate (HZ)
|
≥3840HZ
|
≥3840HZ
|
≥3840HZ
|
≥3840HZ
|
|
Grey Scale (bit)
|
16
|
16
|
16
|
16
|
|
Viewing Angle (H/V)
|
160°/160°
|
160°/160°
|
160°/160°
|
160°/160°
|
|
Best Viewing Distance
|
2.6-26meters
|
2.97-29.7meters
|
3.91-39.1meters
|
4.81-48.1meters
|
|
Input Voltage (AC)
|
110V-240V,50/60HZ
|
110V-240V,50/60HZ
|
110V-240V,50/60HZ
|
110V-240V,50/60HZ
|
FAQ:
1. What Do I Need To Know Before Buying A Rental LED Screens?
Indoor or Outdoor?
The outside environment is harsher than the indoor environment. Therefore, your stage LED screens to need protection against substantial intrusions, dust, and water.
Close or Far Distance Viewing?
It will help you choose LED screen panels for the set with appropriate resolution.
2. How To Calculate A Stage LED Screen Size?
The standard and most commonly used aspect ratio for mainstream videos and displays is 16:9.
For the screen height of your LED screen for a stage show, 1/6 to 1/10 target (distance from the LED screen to the last row) is acceptable. Meaning to say, if the distance from your stage background LED screen to the last row is 21 meters, the height of your LED screen must be around 2.1 meters to 3.5 meters.
3. What Are The Advantages Of Using Stage LED Screens In Events?
Lively Stage Background. Large LED screens for events are commonly used to spice up the show's attendees' and participants' viewing experience. The vivid color and brilliant effects it gives can help you pull off a spectacular show for your audience, which affects audience engagement and participation.
4. Is It Difficult To Operate An LED Stage Display?
Operating your LED stage screen is just like running your personal computer.
Most clients being 100 meters away or less from the stage LED screen is enough for the controlling computer to be located.
5. How Much Would It Cost For Stage LED Screens?
It depends on your needs. The screen size, the pixel pitch and the installation type will affect the price of stage LED screens.
