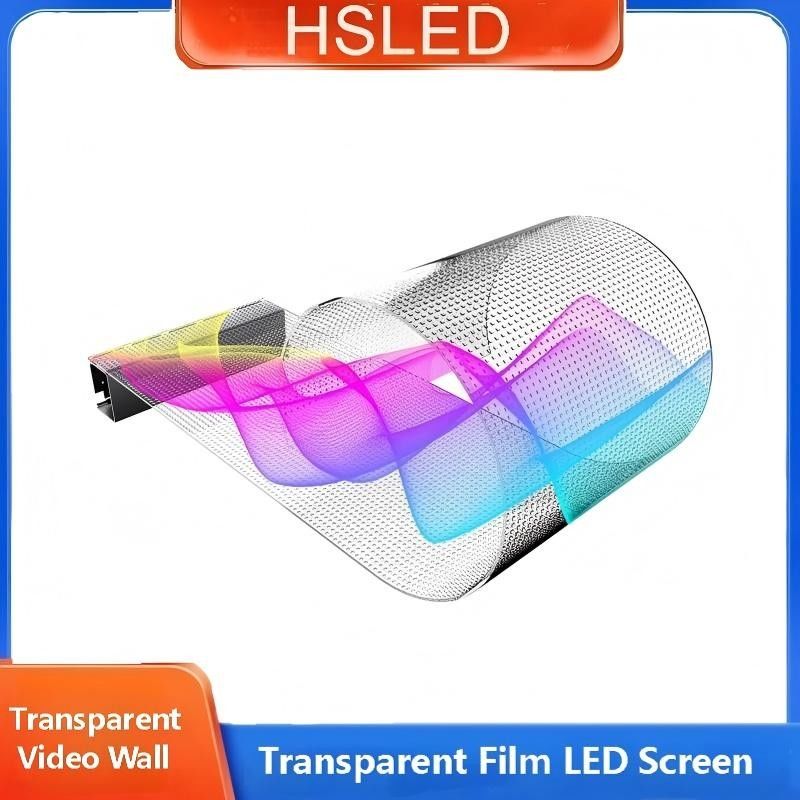

Transparent Led Film Display on Window Flexible Transparent Video Wall

LED chip screen is a product that breaks away from conventional LED transparent screens. LED naked Crystal Chip implantation technology is used, and the lamp board uses transparent crystal film, with a transparent mesh circuit etched on the surface. The components are fixed on a high transparency flexible film, and after the surface is pasted with the components, the vacuum sealing process is used to integrate the display module into a high transparency optical lens type substrate that can emit light. Unlike traditional LED displays, chip screens has the characteristics of high energy efficiency, lightness, thinness, high transparency, simple installation, softness, flexibility, and adjustable.

The product is widely used in commercial display windows, commercial curtain walls, exhibition halls, creative displays, cultural and tourism industries, commercial centers, and other fields.

• Building Curtain Wall:Enhancing the aesthetics and modernity of building curtain walls, achieving a perfect balance between transparency and display effects.
• Museum:Enhance interactive experience, make exhibit information more vividly conveyed, enrich display forms, break spatial limitations, and promote cultural dissemination and education.
• Vitrine:Revitalize glass display windows, showcase dynamic light and shadow art, enhance product appeal, attract customers to stop and admire, and promote sales and brand communication.
• Commercial Centre:Enhance brand image and shopping experience, attract custom- ers with unique transparent display effects, and improve guidance efficiency.

1. LED chip screens have high transparency characteristics, with a transparency rate of over 95%, allowing the chip screen to present display content clearly without affecting the background visual effect, providing more possibilities for creative display.
2. Unlike traditional LED display screens, LED chip screens have the characteristics of softness and bendability, which can adapt to various complex shapes of installationsurfac- es, such as arcs, curved surfaces, etc.
3. By adopting advanced LED bead bare crystal ball implantation technology, the crystal element is cleverly fixed on the thin film, resulting in an overall thickness of only 0.8mm, reducing installation difficulty and transportation costs.
4. The perfect combination of solid crystal process and external drive technology is adopted, with an average power stable control of 50-80W/m2, achieving up to 70% energy consumption reduction.
5. By adopting COB inversion technology, efficient heat dissipation and stable connection are achieved, ensuring stable light emission, significantly extending product service life, and improving overall performance.

Model	P3.75	P5	P6	P8	P10
Pixel pitch	3.75*3.75mm	5*5mm	6.25*6mm	8.125*8mm	10*10mm
Module Resolution	144×64Pixel	144×48Pixel	160×40Pixel	123×30Pixel	100×24Pixel
Module size (W*H*T)	540mm*240mm *2mm	720mm*240mm *2mm	1000mm*240mm *2mm	1000mm*240mm *2mm	1000mm*240mm *2mm
Weight	0.18Kg/pcs	0.2Kg/pcs	0.3Kg/pcs	0.3Kg/pcs	0.3Kg/pcs
Installation method	Glass direct/clamp tempered glass inner/inner arc installation	Glass direct/clamp tempered glass inner/inner arc installation	Glass direct/clamp tempered glass inner/inner arc installation	Glass direct/clamp tempered glass inner/inner arc installation	Glass direct/clamp tempered glass inner/inner arc installation
Pixel density	71,111 Pixels/m²	40000 Pixels/m²	26,560 Pixels/m²	15,375 Pixels/m²	10,000 Pixels/m²
Brightness		1500-2000/3500-4000cd/m²
Horizontal/ vertical viewing angle		140°/140°
Evenness		≥98%
Highest contrast ratio		4,000:1
Protection level		IP43
Colour		16bit
Refresh rate		≥3,840Hz
Change frame frequency		60Frame /Second Suppot High Resolution3D:120Frame
Screen color temperature		2,000K～9,500K /Adjustable
Interface		Windows
Working voltage		AC:110V~240V,50~60Hz
Peak power		≤160W/m²
Average power		50W/m²~60W/m²
Continuous working hours		≥7×24h
Mean time between failures		≥10,000h
Screen temperature rise(during use)		≤3°
Operating ambient temperature		-10～60℃
Operating environment humidity		10％～90％RH/No condensation

step 01.Tear off the surface protective film

step 02.Directly attached to the glass, it can be used after being powered on
