Products

Home > Products > Indoor LED Display > Indoor ultra-thin double-sided LED screen

Indoor ultra-thin double-sided LED screen

Name: Indoor ultra-thin double-sided LED screen
Brand: Shenzhen H&S Innovation Technology Co., Ltd
SKU: P1.56/P1.95/P2.6/P2.9
Price: 1,100.00 USD
Availability: InStock

Product Details

Place of Origin: china shenzhen

Brand Name: HSCXLED

Certification: KC CE ROHS FCC CCC ISO9001

Model Number: P1.56/P1.95/P2.6/P2.9

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Wooden case/Honeycomb Box/Fight case

Delivery Time: 10-35workdays

Payment Terms: L/C,T/T,D/A,D/P,Western Union,MoneyGram

Supply Ability: 1000set

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                    Indoor Double-side Hanging LED Display, Ultra Thin Double LED Screen, Double Side Window LED Display


Produce Name:	Ultra-Thin LED Display	Model:	P1.56/P1.95/P2.6/P2.9
Model Size:	250*250mm	Cabinet Size:	500*500mm
Refresh Rate:	7680HZ	Brightness::	600-3500CD
Input Voltage:	AC110~240V	System:	Novastar/Colorlight/HuiDu/Linsn Control System

Produce Name:	Ultra-Thin LED Display
Model:	P1.56/P1.95/P2.6/P2.9
Model Size:	250*250mm
Cabinet Size:	500*500mm
Refresh Rate:	7680HZ
Brightness::	600-3500CD
Input Voltage:	AC110~240V
System:	Novastar/Colorlight/HuiDu/Linsn Control System

Product Description

Dual LED Screen Window Hanging Double Sided LED Display

Ultra Slim LED display screen/Ultra Slim LED Video Wall Screen

Indoor wall mounted hanging slim led screen

Double Sided Slim LED Screen Display/Ultra Slim Double Sided LED Screen

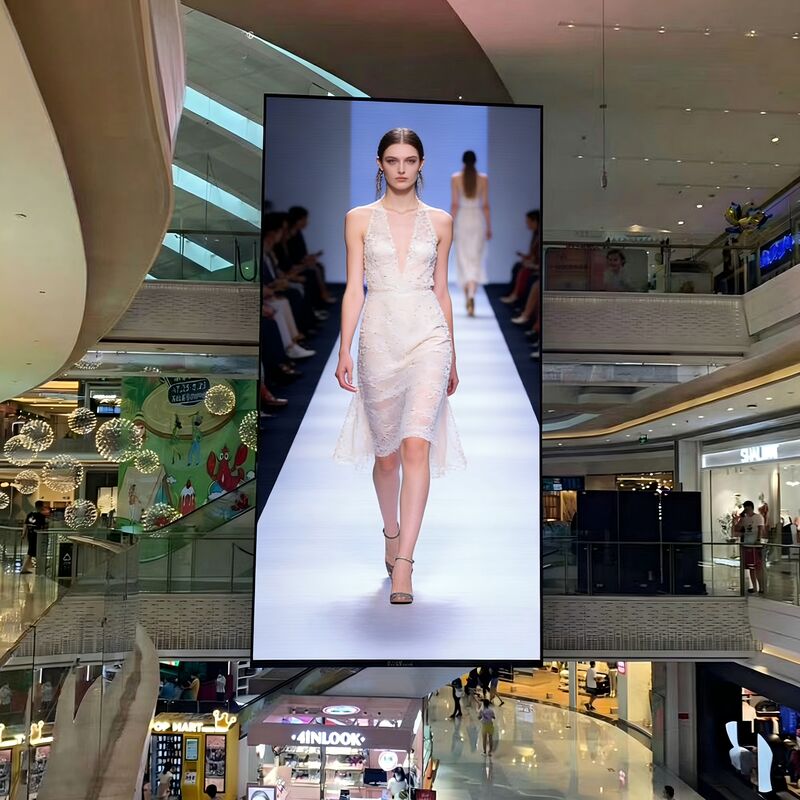

Indoor ultra-thin double-sided LED screen is an efficient digital display device for indoor scenes. With the characteristics of double-sided display, lightweight and space saving, it can maximize the use of display area, improve information dissemination efficiency, and widely adapt to various indoor commercial and public scenes.

Dual-sided led display shows identical or independent content on both sides—perfect for airports, malls, and elevator lobbies to double audience engagement. Ultra-thin 24mm cabinet and lightweight 4kg per panel enable one-person installation (hanging or stacking). Ultra Thin led screen Choose from P1.5 / P1.9 / P2.6 / P2.9 pixel pitches with 7680Hz refresh rate, 5000:1 contrast, and 14-16bit grayscale for stunning close-view clarity in retail stores and showrooms. Ultra Thin led display supports Wi-Fi / 4G / LAN / USB / cloud control—update content remotely via phone, schedule multi-site campaigns, or integrate via API for system integrators. Full front maintenance, aluminum box heat dissipation, optional redundant power, HSCXLED's indoor ultra-thin LED display screen features innovative LED design that is thinner and lighter,and ensure maximum uptime for led display screen .

Indoor ultra-thin double-sided LED screen 0

indoor fixed double sided led display

Ultra Thin LED Screen Paramenters:

HSCXLED-Ultra-Thin Double-Sided LED Display
Model	P1.56	P1.95	P2.6	P2.9
Pixel pitch	1.56mm	1.95mm	2.6mm	2.976mm
LED configuration	SMD 1212	SMD 1515	SMD 2020	SMD 2020
Module size	250*250mm	250*250mm	250*250mm	250*250mm
Cabinet size	500mm*500mm	500mm*500mm	500mm*500mm	500mm*500mm
Scan mode	1/40 scan	1/32 scan	1/32 scan	1/21 scan
Pixel matrix per Module	160*160 dots	128*128 dots	96*96 dots	84*84 dots
Pixel density	409600(dots/sqm)	262144(dots/sqm)	147456(dots/sqm)	112896(dots/sqm)
Cabinet Resolution	320*320dots	256*256 dots	192*192 dots	168*168dots
Thickness of LED display	(24mm/30mm) (Single-sided/Double-sided)
Cabinet Material	Aluminum profile cabinet, lightweight and thin
Display size	Splicing any size according to the cabinet size
Maintenance Method	Pre-maintenance
Refresh rate	≥7680HZ
Brightness	650nit-3000nit (adjustable) LED display screen supports adjustable brightness on both sides
Ingress Protection	IP40
view angle(h/v)	≥ 160°/140°
AC Input Voltage	AC 110V/220V±10%,50Hz/60Hz
Gray Level	14-16bit
Working Temperature	-40 -50(℃)
Operating Humidity	10%~95% non-condensing
Media available	Datasheet, EDA/CAD Models, Other, Photo ,video,3D,and other formats
Mounting options	Lifting/Side Installation/Fixed Installation/ Ceiling Mount,/Custom Mount/Floor Stand/Wall Mount
Life Time	≥ 100000(Hours)
