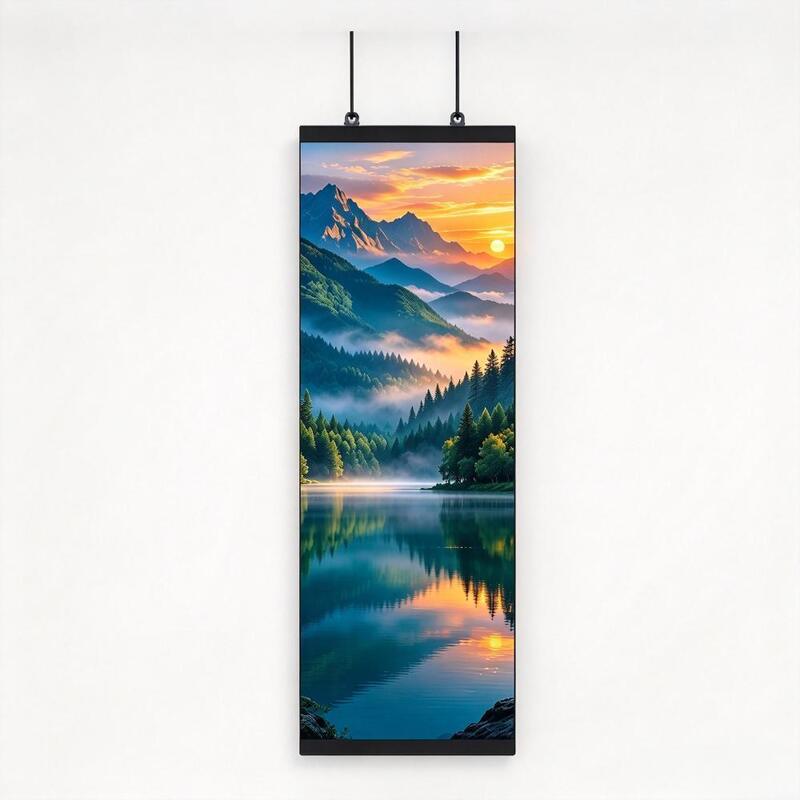

Double Sided Led Display Ultra-Slim GOB LED screen

Name: Double Sided Led Display Ultra-Slim GOB LED screen
Brand: Shenzhen H&S Innovation Technology Co., Ltd
SKU: P1.5/P1.9/P2.6/P2.9/P3.1
Price: 1100.00 USD
Availability: InStock

Product Details

Place of Origin: Shenzhen China

Brand Name: HSCXLED

Certification: KC FCC CCC CA ROHS CE-LVD CE-EMC ISO9001

Model Number: P1.5/P1.9/P2.6/P2.9/P3.1

Payment & Shipping Terms

Minimum Order Quantity: 1Set

Packaging Details: Fight case/Wooden case/Honeycomb Box

Delivery Time: 15-20work days

Payment Terms: T/T,D/P,D/A,L/C

Supply Ability: 10000set/30day

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                    Ultra Thin Dual Side led Screen, LED Double-sided Display, Ultra-Thin Led Display


Product Description

Ultra-thin Indoor Double Sided LED Screen

Ultra-thin led screen---HSCXLED

Model Number: P1.5/P1.9/P2.6/P2.9/P3.1

Light & Thin LED Display:500mm×500mm LED Display Cabinet

Cutting-Edge Display:Dual-Sided led display/Single-sided display；

LED display size can Customize.

Ultra-Thin Design:Aluminum profile cabinet;

Ultra-thin and light (thickness 33mm, Cabinet weight:4.8kg/set)

High Resolution and Brightness:7680hz / 600nit-3500nit (adjustable)

Support split-screen multi-module display

Front Maintenance:LED display adapts full front service desgin.

Certificate: KC FCC CCC CA ROHS CE-LVD CE-EMC ISO9001

Double sided ultra-thin LED screen, Indoor Fixed Led Screen

	Exceptional Image Quality: With a pixel pitch: 1.56mm,1.95mm,2.6mm,3.125mm the Shen zhen H&S Innovation Technology Co., Ltd Ultra-Slim delivers crystal-clear images and vibrant colors, ensuring every detail stands out with stunning clarity.
Dual-Sided Independent Display Show identical promotional content on both sides, or run different advertisements targeting separate audiences—one system doubles your visibility and advertising ROI.
	Ultra-Slim & Lightweight Aluminum Cabinet Cabinet thickness as low as 24–30mm; 500×500mm unit weighs only ~4.8kg. aluminum profile ensures excellent heat dissipation, easy handling, and reduced structural load.
Full Front Access Maintenance with Magnetic Modules All LED modules, power supplies, and receiving cards are front-serviceable. Magnetic snap-on modules allow tool-free removal/replacement in seconds—no rear access corridor required.
	Hard-Connection & Wireless Module Link Eliminates fragile internal cabling between modules. Hard-connection design improves signal stability and allows hot-swapping without shutting down the display.
High Refresh Rate & Superior Image Quality ≥7680Hz refresh rate with 14–16 bit grayscale ensures flicker-free, camera-friendly video playback. High contrast ratio (≥5000:1) and 160° ultra-wide viewing angle deliver vivid, consistent images from any direction.
	Flexible Installation – Hanging / Wall-Mount / Window-Mount Ultra-light design supports ceiling suspension (common for mall aisles), wall mounting, and glass window attachment. Multiple cabinets can be seamlessly spliced horizontally for long-format signage.
Enhanced Durability: Built with GOB LED Display/SMD LED display technology, the display is resistant to moisture, dust, and impact, making it ideal for long-term use in various conditions.
	Seamless Integration: The modular design allows for easy customization and scalability, making it perfect for creating large-scale video walls or smaller, intricate displays.
Ultra-thin LED display : Box size: 500500mm Module size: 250250mm；Profile box Single-sided thickness :24mm Double-sided thickness :30mm High brightness / High gray Refresh:7680HZ Installation method:Hanging/Wall mounting/Variety of shapes

Ultra-Thin Double-Sided LED Display Paramenters:

HSCXLED-Ultra-thin Indoor Double Sided LED Screen
Model	P1.56	P1.953	P2.604	P2.976	P3.125
Pixel Pitch	1.5625(mm)	1.953(mm)	2.604(mm)	2.976(mm)	3.125(mm)
LED Type	SMD1212	SMD1515	SMD1515	SMD2020	SMD1415
Pixel Density	410881(dot/m²)	262144(dot/m²)	147456(dot/m²)	112896(dot/m²)	102400(dot/m²)
Module Size	250*250(mm)
Cabinet Size	500500 30(mm)
Display size	Splicing any size according to the cabinet size
Cabinet Thickness	(24mm/30mm) (Single-sided/Double-sided)
Cabinet Material	aluminum profile
Maintenance Type	Full Front
Cabinet Weight	4.8(kg)
Grey Scale	14-16bit
Refresh Rate	7680(hz)
Brightness	600-3500(nits)
View Angle	160°/160°
Input Power	100-240(V)
IP Rating	IP45/IP45
Installation Type	Fixed Installation, Rounded Corner Installation, Suspended Installation, Canopy Installation
Media available	Datasheet, EDA/CAD Models, Other, Photo ,video,3D,and other formats
Life Time	≥ 100000(Hours)

Highlight: Ultra-Thin Led Display, LED Double-sided Display, Ultra Thin Dual Side led Screen

Custom sizes, GOB/SMD options, and brightness configurations available upon request.

Shenzhen H&S Innovation Technology Co., Ltd - The core advantage of indoor ultra-thin led screen double-sided LED display lies in their double-sided visibility and extreme thinness, which can maximize space utilization and improve information transmission efficiency. Its high-definition display effect makes indoor LED display more exciting.
