Highlight:
Ultra Thin Dual Side led Screen
, Ultra-Thin Led Display
, LED Double-sided Display

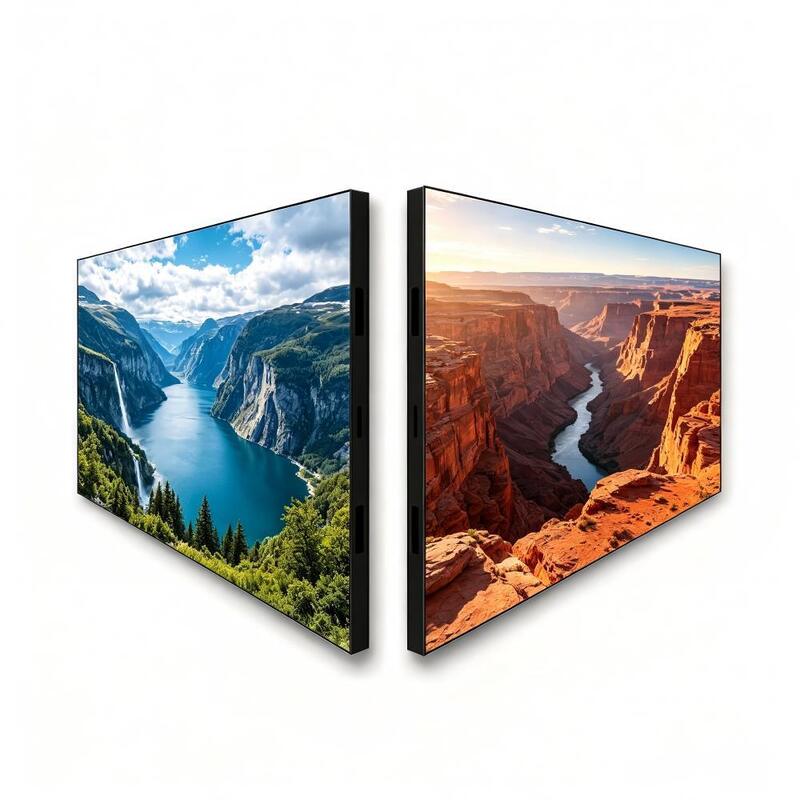

Ultra-thin Indoor Double Sided LED Screen
Ultra-thin led screen---HSCXLED
Model Number: P1.5/P1.9/P2.6/P2.9/P3.1
Light & Thin LED Display:500mm×500mm LED Display Cabinet
Cutting-Edge Display:Dual-Sided led display/Single-sided display；
LED display size can Customize.
Ultra-Thin Design:Aluminum profile cabinet;
Ultra-thin and light (thickness 33mm, Cabinet weight:4.8kg/set)
High Resolution and Brightness:7680hz / 600nit-3500nit (adjustable)
Support split-screen multi-module display
Front Maintenance:LED display adapts full front service desgin.
Certificate: KC FCC CCC CA ROHS CE-LVD CE-EMC ISO9001
Ultra-Thin Double-Sided LED Display Details Introduction:
|
HSCXLED-Double-Sided LED Display:
Unlike traditional rectangular LED video walls, Ultra thin LED display are specifically designed for supermarkets to transform suspended LED screens, cylindrical columns, and storefront displays into vibrant 360 ° double-sided digital billboards.The led display weighs as 4.8kg/sq. m. , making it one of the lightest and easiest-to-install Lifting double-sided LED screen on the market.Whether you are installing a double-sided LED screen in the middle of a shopping center or installing a new digital LED screen logo in your store, ultra-thin LED displays can provide excellent visual performance with the lowest structural requirements.
|
|
Ultra-Light & Ultra-Thin Aluminum Cabinet Design
The Double-Sided LED Display adopts a high-strength Aluminum profile cabinet, lightweight and thin cabinet frame that is both lightweight and precision-engineered for seamless splicing. At only 24mm thickness(Single-sided)30mm(Double-sided), it sits flush against pillars or poles without protruding awkwardly into walkways. The reduced weight—just 2.4kg for the 500mm cabinet—dramatically lowers the load on supporting structures and enables hanging installation or band-strap pole mounting with minimal hardware. This saves both material costs and valuable labor time during installation.
|
|
|
|
True Double-Sided Display for Maximum Exposure
One of the standout features of the Double-Sided LED Display is its double-sided LED screen configuration. Both sides of the cabinet can display independent or mirrored content simultaneously, effectively doubling the audience reach. For advertisers and venue operators, this means higher exposure rates, improved dwell time, and increased return on investment —especially in high-footfall areas such as mall atriums, airport concourses, and hotel lobbies.
|
|
High Resolution led screen
High Brightness LED display
Our ultra-thin LED display screen adopts high refresh rate IC, 7680Hz, high-definition display The brightness can be adjusted, supporting brightness levels from 650unit indoors to 3500unit indoors (visible under sunlight). HSCXLED's double-sided LED display screen supports different brightness settings on both sides, meeting the requirements of various scenes.
|
|
|
|
Front Maintenance – Fast, Tool-Friendly Service
All critical components—including the LED modules, power supply box, and receiving card—support front access maintenance. Using a user-friendly suction tool, technicians can remove and replace modules in seconds without needing rear access (which is often impossible on wrapped pillars). This design greatly reduces long-term maintenance costs and downtime, ensuring your digital signage stays live and profitable.
|
|
Hard-connection Cabinet with Fast Heat Dissipation
The Double-Sided LED Display employs a hard connection design between the cabinet and modules, replacing fragile ribbon cables with more robust interfaces. This enhances signal integrity, reduces failure rates, and improves overall system safety. The aluminum chassis acts as a passive heat sink, providing excellent thermal dissipation with a silent, fan-less cooling system—ideal for noise-sensitive indoor environments like luxury boutiques, museums, or corporate lobbies.
|
|
|
|
Aluminum Cabinet Frame, Seamless Splicing
The Double-Sided LED Display cabinet adopts an aluminum cabinet frame with high strength, high precision, and most importantly, outstanding heat dissipation performance. The weight is super light, HSCXLED's independently developed indoor double-sided ultra-thin LED display screen has a thickness of 30mm for double-sided LED display and only 24mm for single-sided display,therefore, it is very suitable for various installation methods such as hanging installation.
|
|
High Refresh Rate IC & Superior Image Quality
Equipped with 16-channel PWM high-refresh driver ICs, the Double-Sided LED Display 16~32 scanning modes freely selectable; High anti-interference capability. The high refresh IC can control brightness precisely and achieve reliable distribution of signal and electricity.Ultra-ThinLED Display delivers precise brightness control, excellent grayscale performance, and flicker-free playback even when captured by professional cameras.
|
|
|
|
160° Wide Viewing Angle
The Ultra-Thin LED Display achieves a super-wide 160° horizontal and vertical viewing angle, ensuring vivid, consistent images from virtually any vantage poin. Cooperating with a double-sided screen, the contents on the screen can reach as many people as possible.
|
|
Smart Control
The Ultra-thin LED display supports 4G, Wi-Fi, USB, LAN connections and cloud cluster controls, enabling real-time remote,management and scheduling for quick and efficient content updates.
Flexible Content Display Effects,Supports dynamic same content or different contents updates with easy remote management for targeted promotions.
|
|
|
Flexible Installation Methods
Due to its ultra-thin and ultra-light cabinet design, hanging installation can be one of the most suitable options. It can save a lot of labor resources and cost of structure for you.
|
|
Multiple installation methods
the Double-Sided indoor LED Display supports multiple installation types:
Pillar / Column Wrap Installation ;Hanging Installation (suspended from ceilings in malls or stations);Wall Flush Mounting (for narrow corridors or elevator lobbies);Free-standing Totem / Kiosk Integration (with optional base enclosure)
|
|
|
energy-saving and low-consumption
Indoor ultra-thin LED display screens adopt advanced common cathode circuit and other technologies, which save more than 30% energy compared to traditional screens, have low heat generation, natural heat dissipation, and do not require additional heat dissipation systems.The ultra-thin LED display screen supports 24-hour continuous stable operation and can meet the needs of different scenarios.
|
|
Ultra-thin LED display Applications
The Double-Sided LED Display is ideally suited for locations where space is limited but visual impact is essential:
Shopping Mall & Department Store Pillars – Wrap columns with eye-catching brand ads, promotions, and wayfinding info on both sides.
Hotel Lobbies & Columns – Elegant, slim-profile digital décor that blends with luxury interiors.
Airport & Railway Station Information Poles – Double-sided departure/arrival info plus advertising.
Metro Station Platform Pillars – Maximize ad revenue on otherwise unused structural surfaces.
Corporate Office Atriums – Display company values, KPIs, or welcome messages on wrapped cores.
Exhibition Booth Columns – Create immersive brand environments at trade shows.
Indoor Light Pole / Totem Retrofits – Where a narrow, double-facing
|
|
Ultra-Thin Double-Sided LED Display Paramenters:
| HSCXLED-Ultra-thin Indoor Double Sided LED Screen |
| Model |
P1.56 |
P1.953 |
P2.604 |
P2.976 |
P3.125 |
| Pixel Pitch |
1.5625(mm) |
1.953(mm) |
2.604(mm) |
2.976(mm) |
3.125(mm) |
| LED Type |
SMD1212 |
SMD1515 |
SMD1515 |
SMD2020 |
SMD1415 |
| Pixel Density |
410881(dot/m²) |
262144(dot/m²) |
147456(dot/m²) |
112896(dot/m²) |
102400(dot/m²) |
| Module Size |
250*250(mm) |
| Cabinet Size |
500*500 *40(mm) |
| Display size |
Splicing any size according to the cabinet size |
| Cabinet Thickness |
(24mm/30mm) |
| (Single-sided/Double-sided) |
| Cabinet Material |
aluminum profile |
| Maintenance Type |
Full Front |
| Cabinet Weight |
4.8(kg) |
| Grey Scale |
14-16bit |
| Refresh Rate |
7680(hz) |
| Brightness |
600-3500(nits) |
| View Angle |
160°/160° |
| Input Power |
100-240(V) |
| IP Rating |
IP45/IP45 |
| Installation Type |
Fixed Installation, Rounded Corner Installation, Suspended Installation, Canopy Installation |
| Media available |
Datasheet, EDA/CAD Models, Other, Photo ,video,3D,and other formats |
| Life Time |
≥ 100000(Hours) |
Highlight: Ultra-Thin Led Display, LED Double-sided Display, Ultra Thin Dual Side led Screen
Custom sizes, GOB/SMD options, and brightness configurations available upon request.
Ultra-Thin Double-Sided LED Display Application Scenarios:
1. Ultra-Thin LED Display for Shopping Malls
Ultra-Thin Double-Sided LED Displays are widely used in the atriums, corridors and elevator halls of shopping malls and commercial complexes. The double-sided display can simultaneously release promotional information, brand advertisements and activity notices to pedestrians in two directions, maximizing the coverage of advertising and improving the publicity effect. Its ultra-thin design can be perfectly integrated with the modern decoration style of the mall.
2. Ultra-Thin LED Display for Transportation Hubs
In airports, high-speed rail stations, subway stations and other transportation hubs, Ultra-Thin Double-Sided LED Display can be installed in waiting areas, passageways and ticket halls. One side can display real-time flight/train schedules, boarding gate information and safety prompts, while the other side can play public welfare advertisements, city image promotions and other content.
![1768542628245884.jpg]( "1768542628245884.jpg")
3. ultra-thin LED display for Art Venues
In art galleries, museums, exhibition halls and theaters, the ultra-thin double-sided LED display can be used to display exhibition introductions, artwork details, performance programs and other content. The high-color-gamut display effect can restore the true color of artworks and cultural relics, while the double-sided design allows visitors on both sides of the display to obtain information at the same time, enhancing the viewing experience. ultra-thin LED display can also be used as a stage background to create a rich visual atmosphere for performances.
4. Ultra-Thin LED Display for Buildings
The ultra-thin double-sided LED display installed in the lobby of office buildings and government service halls, the display can display corporate culture, office notices, policy announcements and service guidelines on both sides. It not only meets the internal information communication needs of the organization, but also shows a professional and efficient image to external visitors.
5. ultra-thin LED display for Sports Venues
The ultra-thin double-sided LED display can be installed around the venue, above the stands or as a peripheral display. One side can show real-time scores, player stats and match highlights to audiences on-site, while the other side can broadcast event previews, sponsor advertisements and interactive content, enhancing the on-site atmosphere and commercial value. meeting the high-demand visual needs of sports events
6.Ultra-thin LED display for Stores
The ultra-thin double-sided LED display can be placed at the store entrance, window or interior aisles. Dual-sided display allows it to attract passers-by outside the store with new product launches and promotional activities. The ultra-thin LED screen is consistent with the brand image of boutiques and chain stores, and upgrading the store's visual grade.
