16x9 Hd Led Video Wall Gold Thread Indoor Fixed Led Display 320x160mm
| Place of Origin | China |
|---|---|
| Brand Name | MPLED |
| Certification | CE/ROHS/FCC/ISO/UL |
| Model Number | P2 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | flight case/ wooden case/ carton/ it is up to you |
| Delivery Time | 7-10 working days after receive your payment |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 3000sqm |
Product Details
| Product Name | Indoor Rental Led Display | Usage | Indoor |
|---|---|---|---|
| Screen Dimension | Customized | Tube Chip Color | Full Color |
| Warranty | 2 Years | Module Size | 320x160mm |
| High Light | SMD1515 Hd Led Video Wall,160x80 dots Indoor Fixed Led Display,320x160mm indoor rental led display |
||
Product Description

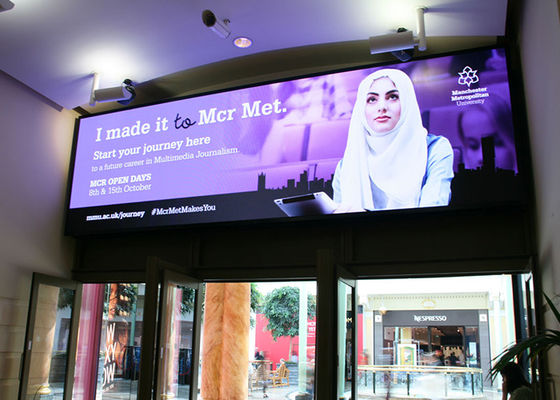

16x9 Hd Led Video Wall Gold Thread Indoor Fixed Led Display 320x160mm
Hd Led Video Wall Manufacturers 16x9 Led Wall Nationstar Gold Thread
Product description
1. Cabinet size, cabinet size can be customized according to project demands.
2. Modules, receiving cards, and cables can be maintained from the front, greatly reducing labor and steel structaure costs.
3. Wall-mounting installation, ground-standing installation and 90°corner/rotation installation available.
4. High brightness, high gray scale, high refresh rate, high contrast ratio with perfect performance.
5. Perfect design of lamp board PCB, high-end IC, easy to achieve high gray, refresh, brightness.
6. Modules magnetic front installation, 3 seconds front maintenance.
| Pixel Pitch | 2 mm | |||
| LED Lamp | SMD1515 | |||
| IC | ICN2153s | |||
| Module Size | 320x160mm | |||
| Module pixels | 160x80 dots | |||
| Cabinet Size(WxHxD)(mm) | 960x960mm | |||
| Module Quantity(pcs) | 18 | |||
| Cabinet resolution WxH | 480x480dots | |||
| Cabinet Material | Iron | |||
| Cabinet Weight (kg) | 27 | |||
| Average Power/sqm (watts) | 160 | |||
| Max Power/sqm(watts) | 530 | |||
| Brightness | 800cd/㎡ | |||
| Viewing Angle | H:160°, V:120° | |||
| Best Viewing Distance | 2-200 meters | |||
| Brightness Control | 256 level | |||
| Gray scale | 16 bit | |||
| Refresh frequency | 3840hertz | |||
| Driving mode | 1/40 scan | |||
| Input power frequency | 50 or 60 Hertz | |||
| Input Voltage | 110 ～ 240 Volt,60Hz | |||
| Blind spot rate | ＜1/10000 | |||
| Lifetime at 50% brightness | 100000 hours | |||
| Ingress Protection | IP30 | |||
| Operating temperature | ﹣20 ～﹢60 ℃ | |||
| Operating humidity | 10％ ～ 90％ | |||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||
| Signal input format | HDMI,DVI,SDI,VGA etc. | |||
| Operating system | Windows (2000/XP/Vista/7/8/10) | |||
One- Stop Solution Service
1.3D/CAD engineering drawing to confirm project execution/implementation as presale service within 72 hours.
2.Free CAD drawings for steel structure, signal/power connections of led display which guide for site cable arrangement and structure preparation in advance.
3.7/24 online remote control service , and local engineer service within 8 hours contact.
4.Free technical training in factory.
5.MPLED engineers will fly to the site if you need local service.
6.Expanding market plan with professional MPLED team over 8 years experience.
7.Multiple options for global transportation, like FOB, CIF, DDP, DDU to most countries.
FAQ
Q1: Is the product customizable?
A: Yes,we can customize the product according to customers' needs, you just need to provide the requirements details.
Q2: Do you test all your goods before delivery?
A: Yes,we have 100% test before delivery.
Q3:What is your terms delivery?
A: EXW,FOB, CFR, CIF, DDP, DDU...
Q4: How about your warranty?
A: Different product offer different time frame warranty, but all product here we offer 2year at least warranty.
Q5: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
