Fixed P8 P10 P5 Outdoor Led Panel Led Billboard Advertising Digital Signage

Product Details

Place of Origin: SHENZHEN

Brand Name: HSCX

Model Number: P5

Payment & Shipping Terms

Minimum Order Quantity: 1

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                            Fixed p5 outdoor led panel, Digital p5 outdoor led panel, P10 led billboard advertising


Scan Mode:	1 / 4	Product:	Digital Billboard Advertising Cost
Brand Naming:	Screen Advertising	Density:	27777 Pixels/sqm
Led Standard:	SMD	Max Consumption:	1200W/sq.m
Color:	Full Color	Led Type:	SMD
Signal Input Format:	HDMI,DVI,SDI,VGA Etc.	Screen Dimension:	6mm
Ip Rating:	IP65/IP67	Drive Ic:	MBI5124
Usage:	Outdoor	Panel Material:	Iron Cabinet
Pixel Configuration:	1R1G1B

Scan Mode:	1 / 4
Product:	Digital Billboard Advertising Cost
Brand Naming:	Screen Advertising
Density:	27777 Pixels/sqm
Led Standard:	SMD
Max Consumption:	1200W/sq.m
Color:	Full Color
Led Type:	SMD
Signal Input Format:	HDMI,DVI,SDI,VGA Etc.
Screen Dimension:	6mm
Ip Rating:	IP65/IP67
Drive Ic:	MBI5124
Usage:	Outdoor
Panel Material:	Iron Cabinet
Pixel Configuration:	1R1G1B

Product Description

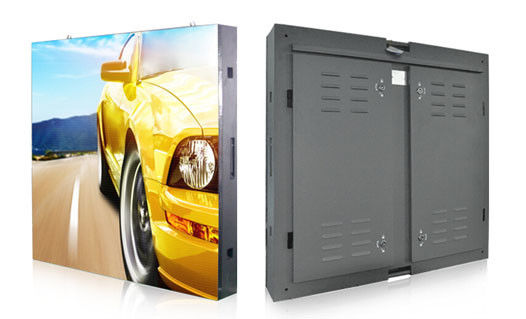

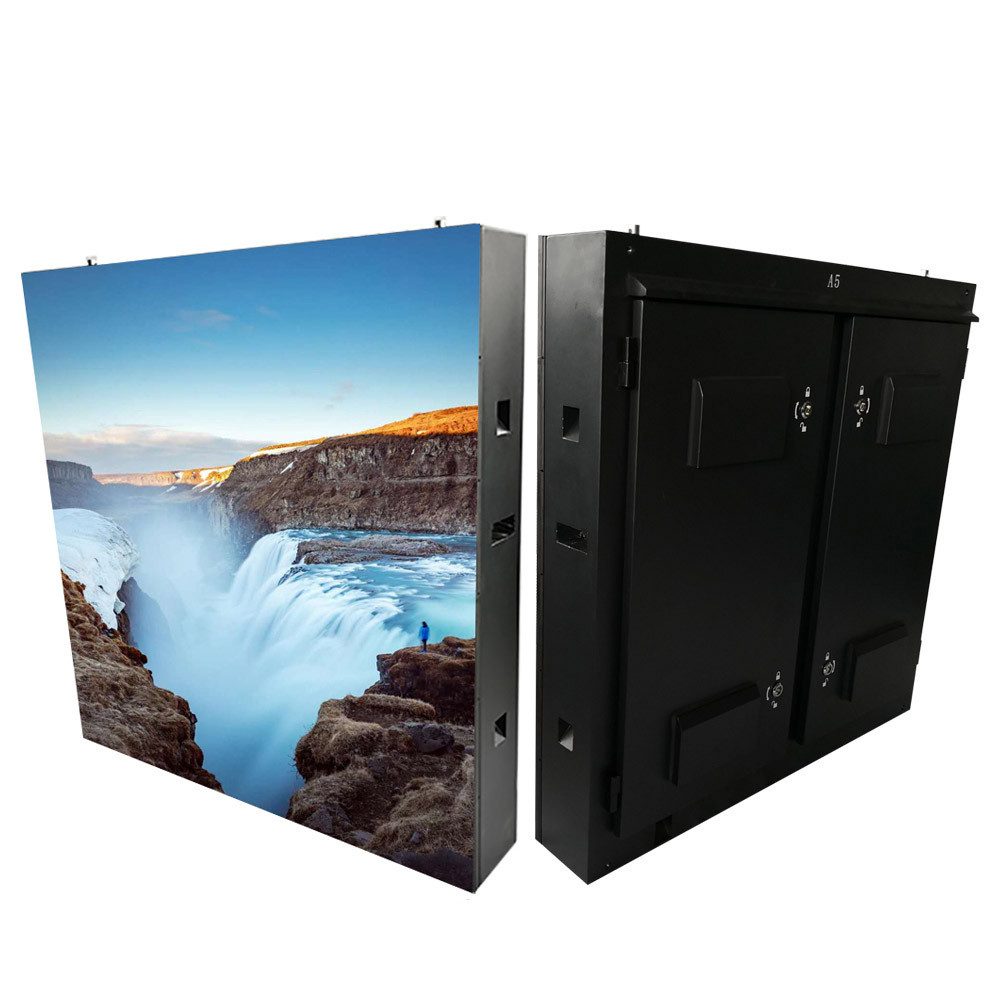

Fixed P8 P10 P5 Outdoor Led Panel Led Billboard Advertising Digital Signage

Features of Led Wall Screen Display Outdoor

Outdoor led sign boards is designed for outdoor environments, full waterproof, the front and back of led screen are with waterproof. It make it can work normal in heavy rainy days. High refresh rate, it can reach 3840Hz. High brightness, more than 5500nits.

1) Full waterproof design, it can work nomally in bad weather.

2) high contast, can present more vivid images and videos.

3) Save space, led wall display can be implant in the wall.

4) High refresh rate,more than 3840Hz.

Led Display Specification

OutdoorLED Display
Model No.	P2.5	P3.0	P4	P5	P6	P8	P10
Pixel Pitch(mm)	2.5	3.076	4	5	6	8	10
LED Type	SMD1415	SMD1415	SMD1921	SMD2727	SMD3535	SMD3535 SMD3535
Module Dimensio (W*H)(mm)	320x160	320x160	320x160	320x160	320x160	320x160	320x160
Cabinet Dimension (W*H)(mm)	960x960	960x960	960x960	960x960	960x960	960x960	960x960
Cabinet Material	Magnesium Alloy
Cabinet Weight (Kg)	28
Ingress Protection (Front/Rear)	IP65
Brightness(nits)	5500~6500
Viewing Angle	H:140°Vi140
Color Temperature	3200~9500K
Max Power Consumption (W/m²)	750	750	750	750	750	800	800
Average Power Consumption (W/m²)	300	300	300	300	300	350	350
Maintenance Method	Rear Maintenance(Our c Series Support Front Maintenance)
Gray Level	14bit
Refresh Rate (Hz)	3200~3840Hz
Waterproof Level	IP65
Operating Temperature	-20°~60°
Life Time (Hours)	100000
Warranty	3-5years

Fixed P8 P10 P5 Outdoor Led Panel Led Billboard Advertising Digital Signage 0

Product Description

LED Chips : Nichia/Cree/Epistar/Silan/King light/Silan/KN-LIGHT All Our Brand Partners
IC : Mblock/Mingyang/Chipone/Mingwei All Our Brand Partners
Power Supply:Meanwell/Megmeet/Powerld/Rong Electronic/G-Energy All Our Brand Partners
Control card:Novastar, Linsn, Colorlight, Huidu All Our Brand Partners Video processor:Novastar, Videowall All Our Brand Partners
PCB Board : Flame Retardant, Anti-Aging
Magnesium Ally Cabinet : Light Weight, Corrosion Resistance
