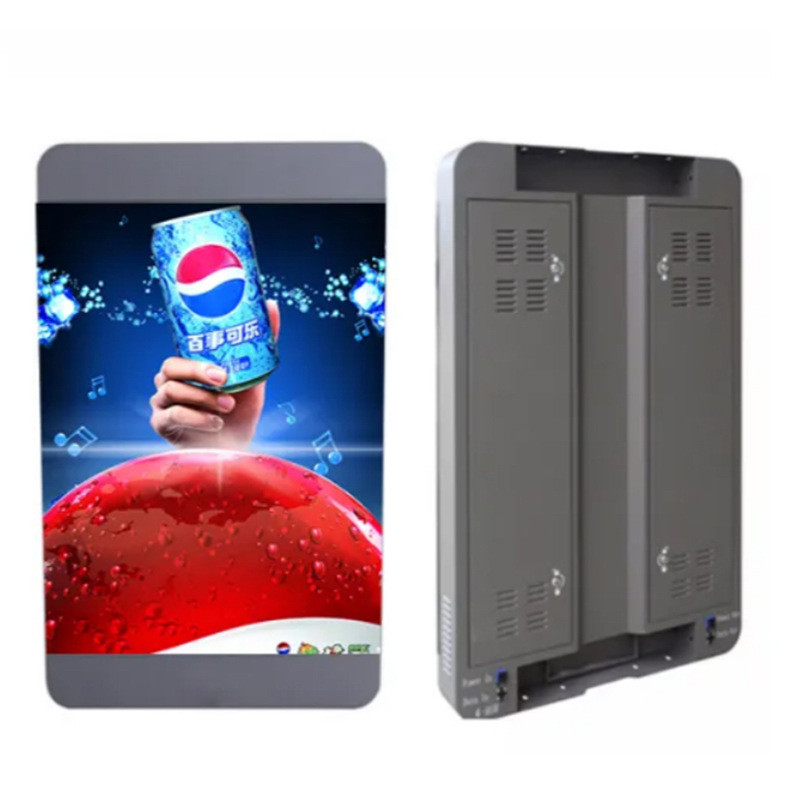

ODM Programmable Led Display Board Light Pole Outdoor Led Advertising Board

Product Details

Place of Origin: SHENZHEN

Brand Name: HSCX

Certification: CE ROHS FCC

Model Number: P3

Payment & Shipping Terms

Minimum Order Quantity: 1set

Packaging Details: Fight case/Wooden case/Honeycomb Box

Delivery Time: 15-35 workdays

Payment Terms: L/C, T/T

Supply Ability: 500Set/30DAY

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                    ODM programmable led display board, Outdoor programmable led display board, Programmable outdoor led advertising board


Produce Name:	P3 LED Display	Pixels:	3MM
Tube Chip Color:	FULL COLOR	LED Type:	SMD1921
Module Dimension:	192*192mm	Pixel Density:	11111Pixel/m2
Cabinet Dimension:	576*1152mm	Best Viewing Distance:	3m
Cabinet Material:	Iron	Ingress Protection:	IP65
Brightness:	≥5500cd/m²	Life Time:	100000(Hours)

Produce Name:	P3 LED Display
Pixels:	3MM
Tube Chip Color:	FULL COLOR
LED Type:	SMD1921
Module Dimension:	192*192mm
Pixel Density:	11111Pixel/m2
Cabinet Dimension:	576*1152mm
Best Viewing Distance:	3m
Cabinet Material:	Iron
Ingress Protection:	IP65
Brightness:	≥5500cd/m²
Life Time:	100000(Hours)

Product Description

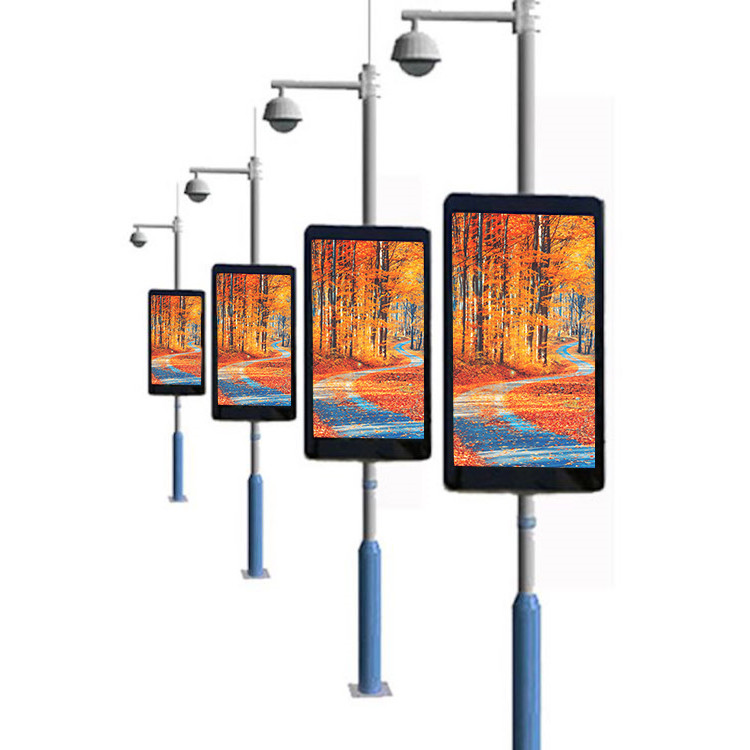

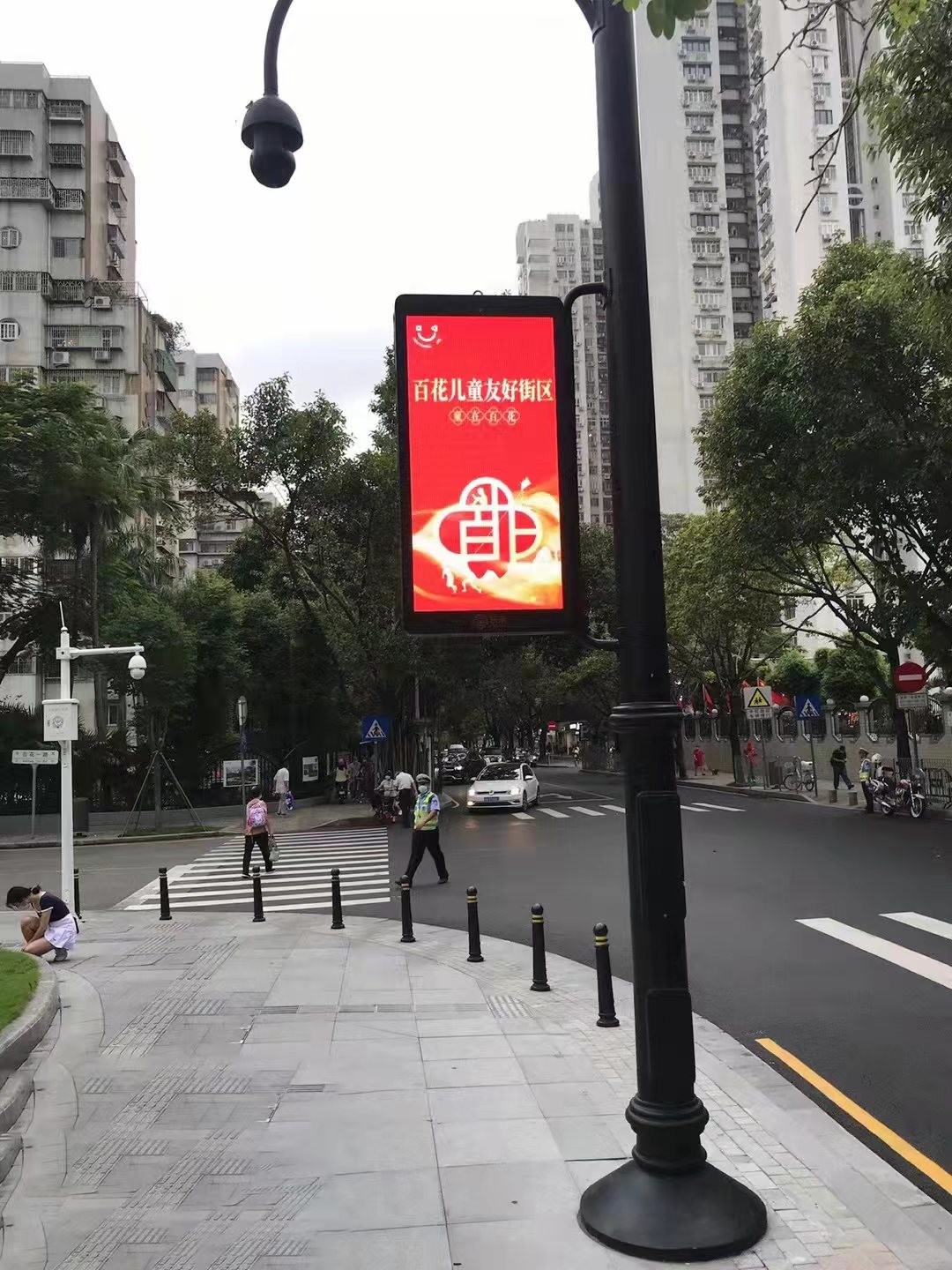

led pole display

Waterproof Street lamp billboard WIFI/RJ45/4G control LED lamppost outdoor led screen pole

FEATURES:

Floor standing series is commercial grade LCD screen technology with Android OS or Windows OS. They are widely used in public environments, including airport, hotel, Bank, Metro station.

● Support optional IR touch, Capacitive touch, printer, NFC, camera, etc to meet variety of request from the market.

● Support 7*24 Hours long time playback

● FHD, Ultra High Definition UHD, 4K different Resolution are optional, Grade A, LED Backlight, Different screen diagonal ,

● Metal housing have good heat dissipation effect and tempered glass can protect screen effectively.

● Supporting connecting WIFI, Ethernet, 4G(option) to achieve different Internet connection access.

Parameters:

Smart city led light pole screen (Panel Specification)
Use environment	OUTDOOR
Product model	Ph2.5led pole screen	Ph3led pole screen	Ph3.84led pole screen	Ph4led pole screen
Pixel spacing	2.5mm	3mm	3.84mm	4mm
Display size	480mm*800mm	576mm*1152mm	600mm*1200mm	512mm*1024mm
Brightness	≧5500cd	≧5500cd	≧6200cd	≧6200cd
Waterproof grade	IP65	IP65	IP65	IP65
Weight	about17.6kg	about29kg	about31.9kg	about25.6kg
Refresh rate	1920/3840hz	1920/3840hz	1920/3840hz	1920/3840hz
Control mode	Asynchronous Control (3G/4G/WI FI)
Input power supply	AC100/240V50/60HZ
working temperature	-20°C~ +50°C
Working humidity	10-90% RH
Service life	More than 100000 hours
