Full Color HD P5 Outdoor LED Displays Video Wall Digital Advertising Screen
| Place of Origin | SHENZHEN |
|---|---|
| Brand Name | HSCX |
| Certification | CE ROHS FCC |
| Model Number | P5 |
| Minimum Order Quantity | 1 |
| Packaging Details | Fight case/Wooden case/honeycomb Box |
| Delivery Time | 10-35 workdays |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pixel Pitch (Mm) | P5 | LED Type | SMD1921 |
|---|---|---|---|
| Refresh Rate (Hz) | >1920-3840 HZ | Grey Scale | 16bit |
| Module Size (Mmxmm) | 320*160mm/160*160mm | Cabinet Size | 960mm*960mm |
| Optimum Viewing Angle | H:140°, V:120° | Tube Chip Color | FULL COLOR |
| Display Function | Video | High Ligh | Outdoor Fixed Screen P5 Led Screen |
| Highlight | HD P5 Outdoor LED Displays,Digital Advertising Outdoor LED Displays,HD P5 outdoor advertising led display screen |
||
Product Description
Full Color HD P5 Waterproof Outdoor Large Video Wall Digital LED Advertising Display LED Screen Board
Applications:

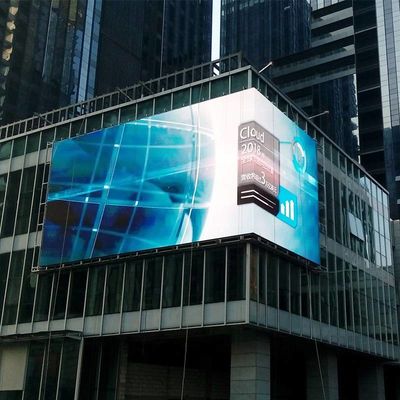

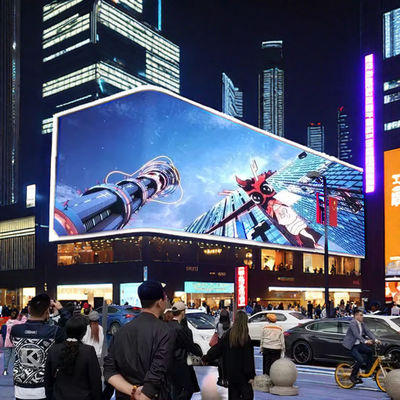

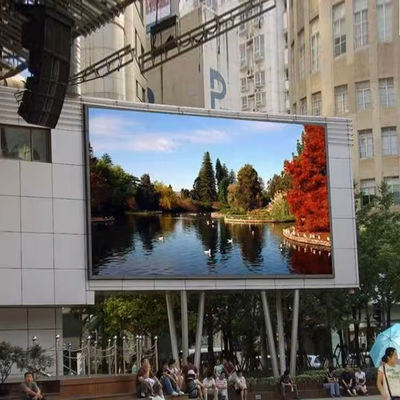

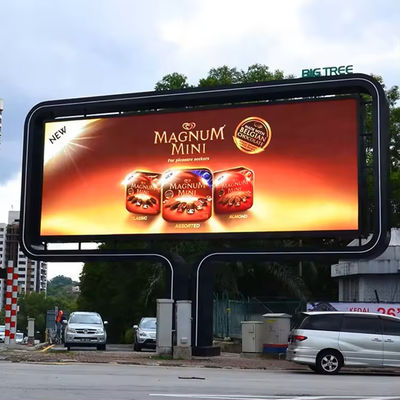

building wall, CBD video wall, shopping mall video wall, super market, ports, high speed way, roadside, cinema, truck, trailer, bus, large building top.
Product feature:
1. Suit for strict weather conditions with IP65 rating.
2. Seamless splicing.
3. Scientific structure design and cooling system ensures the stability and reliability, even long time continuous use.
4. Quick installation and easy maintenance, front or rear maintenance available.
Led Display Specification
| OutdoorLED Display | |||||||
| Model No. | P2.5 | P3.0 | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 2.5 | 3.076 | 4 | 5 | 6 | 8 | 10 |
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD2727 | SMD3535 | SMD3535 SMD3535 | |
| Module Dimensio (W*H)(mm) |
320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 | 320x160 |
| Cabinet Dimension (W*H)(mm) |
960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 | 960x960 |
| Cabinet Material | Magnesium Alloy | ||||||
| Cabinet Weight (Kg) | 28 | ||||||
| Ingress Protection (Front/Rear) |
IP65 | ||||||
| Brightness(nits) | 5500~6500 | ||||||
| Viewing Angle | H:140°Vi140 | ||||||
| Color Temperature |
3200~9500K | ||||||
| Max Power Consumption (W/m²) |
750 | 750 | 750 | 750 | 750 | 800 | 800 |
| Average Power Consumption (W/m²) |
300 | 300 | 300 | 300 | 300 | 350 | 350 |
| Maintenance Method | Rear Maintenance(Our c Series Support Front Maintenance) | ||||||
| Gray Level | 14bit | ||||||
| Refresh Rate (Hz) | 3200~3840Hz | ||||||
| Waterproof Level | IP65 | ||||||
| Operating Temperature | -20°~60° | ||||||
| Life Time (Hours) | 100000 | ||||||
| Warranty | 3-5years | ||||||
Outdoor Fixed Screen/Outdoor Front Service Led Display/Outdoor Stadium Led Display/Outdoor Mesh Screen/Rental Events Screen
♦ Features
1. Brightness adjustment technology
2. Strong convective heat removal system
3. Exquisite material technology and scientific production process
FAQ
Q1: How much is the freight?
A: The shipping cost is determined by the size of the screen, and the project informatio
n is informed by the inquiry.
Q2: What is Price per square meter of screen?
A: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q3: Can I customize it?
A: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q4:What is the warranty?
A: 5-8 years Warranty.
Q5: How many days for producing?
A: 1-3 days for inventory products and 10-25 days for customized products.
Q6: How to operate and use it?A: It can by controlled by PC and Smartphone very easily.
Welcome to inquiry for more information. We provide video guidance and remote assistance.
