Product Details
Place of Origin: SHENZHEN
Brand Name: H&S LED
Certification: CE ROHS FCC
Model Number: P6.67
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Fight case/Wooden case/honeycomb Box
Delivery Time: 10-35 workdays
Payment Terms: L/C, T/T, D/A, T/T, Western Union, MoneyGram
Supply Ability: 1000Set/30DAY
Pixel Pitch (Mm): |
P6.67 |
LED Type: |
SMD2727 |
Refresh Rate (Hz): |
>1920-3840 HZ |
Grey Scale: |
16bit |
Module Size (Mmxmm): |
320*160mm/320*320mm |
Screen Dimension: |
Customized Design |
Optimum Viewing Angle:: |
H:140°, V:120° |
Tube Chip Color: |
FULL COLOR |
Display Function: |
Video |
High Ligh: |
Outdoor LED Display Screen P6.67 Led Screen |
Pixel Pitch (Mm): |
P6.67 |
LED Type: |
SMD2727 |
Refresh Rate (Hz): |
>1920-3840 HZ |
Grey Scale: |
16bit |
Module Size (Mmxmm): |
320*160mm/320*320mm |
Screen Dimension: |
Customized Design |
Optimum Viewing Angle:: |
H:140°, V:120° |
Tube Chip Color: |
FULL COLOR |
Display Function: |
Video |
High Ligh: |
Outdoor LED Display Screen P6.67 Led Screen |

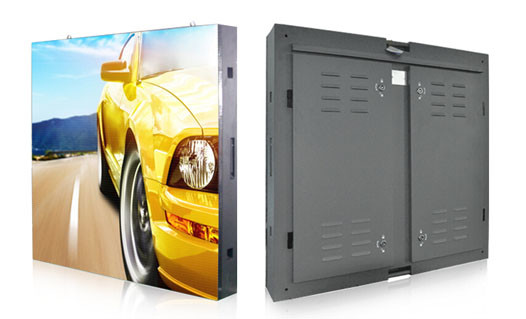

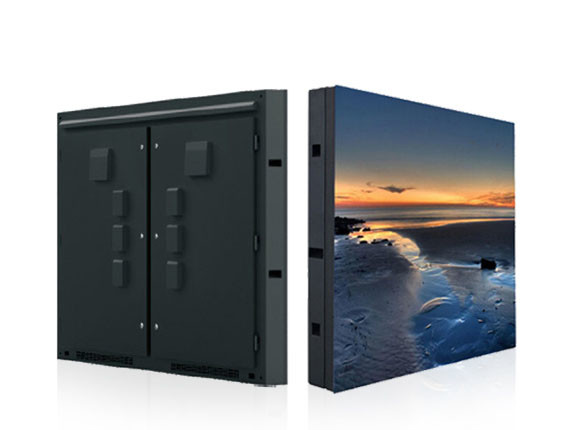

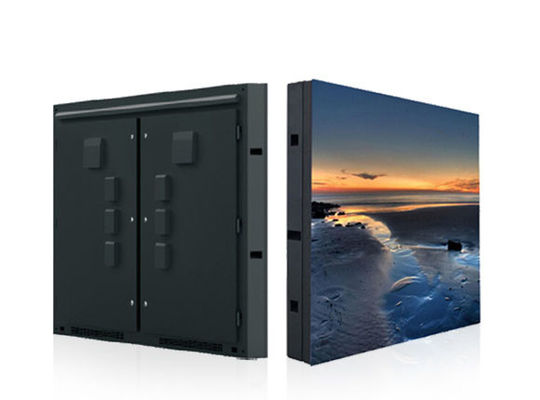

SMD P6.67 Outdoor Fixed LED Video Display
Outdoor LED displays serve a wide range of practical and promotional purposes in various settings. These high-resolution screens are prominently used in advertising, providing vibrant and dynamic content that captures attention effectively. They are also instrumental in public information dissemination, such as displaying real-time news updates, weather forecasts, and emergency alerts

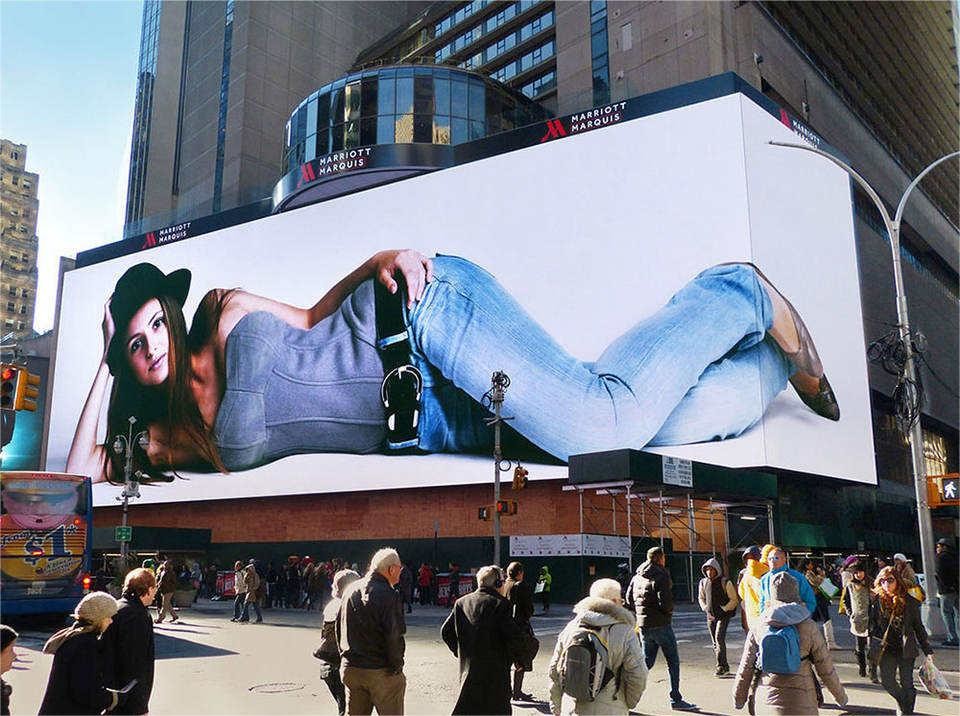

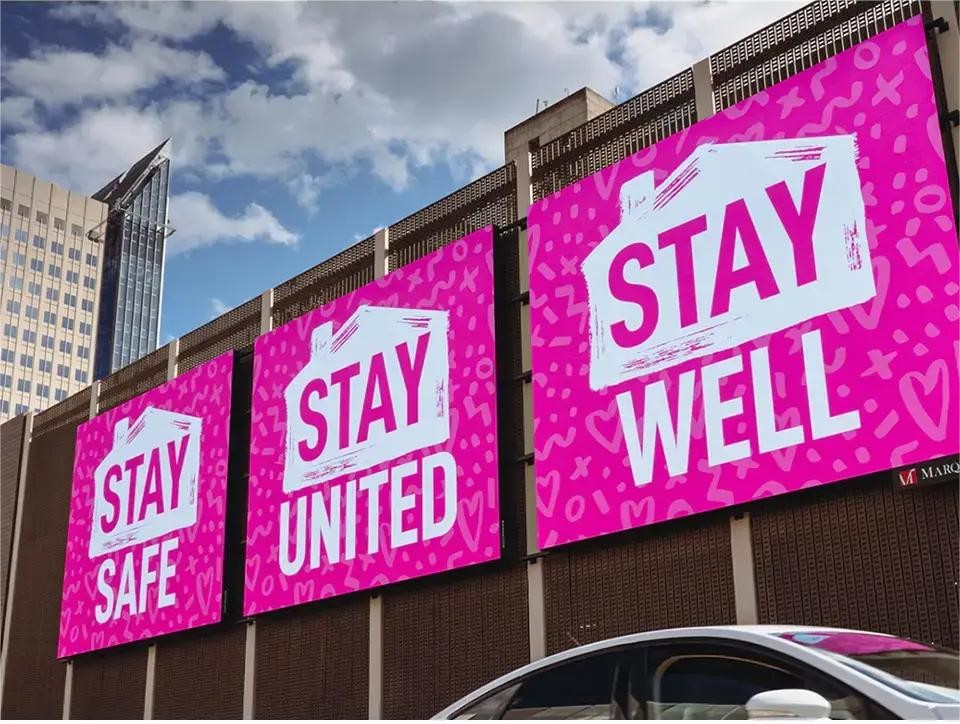

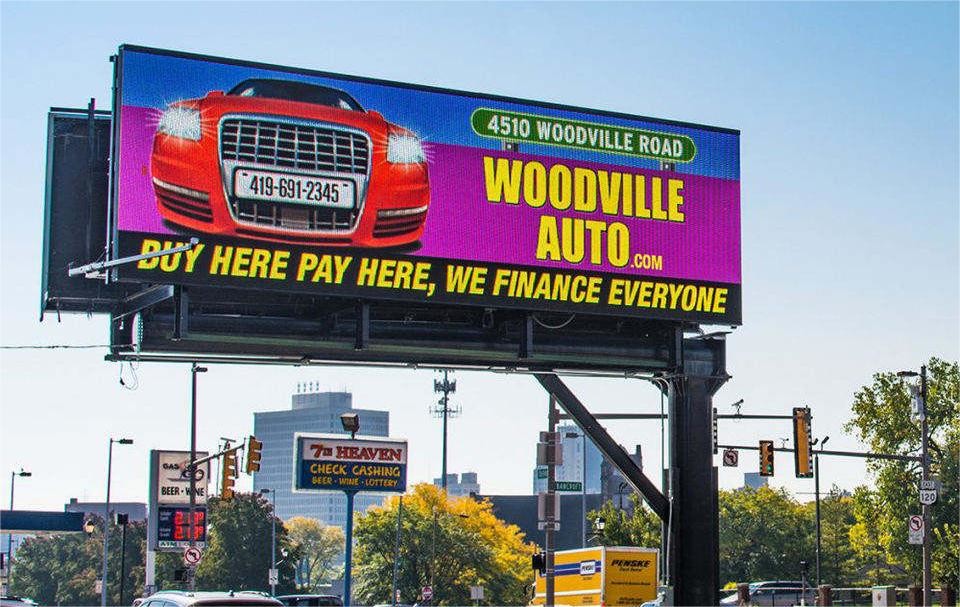

Application fields of outdoor LED display screens:
Led Display Specification
outdoor led display P6.67 | |||
Resolution/mm | 6.67mm | ||
Pixel configuration | 1R1G1B | ||
Pixel density/pixels/m² | 22478/m² | ||
Module resolution | 48x24 | ||
Module size/mm | 320x160mm/320x320mm | ||
View distance | 14-300m | ||
Single point brightness adjust | Can be added | ||
Single point color adjust | Can be added | ||
White balance brightness | >5500cd/㎡ | ||
Color temperature | 6500K-9500K | ||
Horizontal view angle | 120(degrees) | ||
Vertical view angle | 60(degrees) | ||
Signal Process bit | 16bit | ||
Scanning mode | 1/4S | ||
Frame rate | 60Hz | ||
Refresh frequency | >1920-3840Hz | ||
Brightness | 4000-5500 CD | ||
Out of control point | <1/10000 | ||
Working hours | ≥72hours | ||
Mean Time Between Failure | >5000hours | ||
Life time | 100000hours | ||
Environment temperature range | Operating temperature range: -20-45℃ | ||
Luminous point width between centres | Deviation<3% | ||
Color uniformity(chromaticity coordinate) | ±0.003 | ||
Humidity(working) | working:10-95% |
Outdoor Fixed Screen/Outdoor Front Service Led Display/Outdoor Stadium Led Display/Outdoor Mesh Screen/Rental Events Screen
Waterproof and dustproof design: Outdoor LED displays are usually designed to be waterproof and dustproof, which can withstand the impact of adverse weather conditions such as rain and sand.
High brightness: LED displays typically require high brightness in outdoor environments to ensure clear visibility even in strong sunlight.
Wide perspective: With a wide range of perspectives, the audience can see clear images from any angle, adapting to outdoor scenes with dense audience.
Strong durability: LED displays are usually made of durable materials and can operate in outdoor environments for long periods of time without being easily damaged.
Energy saving and environmental protection: Compared to traditional display technologies, LED displays usually have a higher energy efficiency ratio, which can save energy and reduce environmental impact.
Remote management: supports remote control and management, making it convenient for operators to update content and monitor screen status.
High reliability: Designed for long-term stable operation, reducing downtime caused by faults and ensuring continuous display of content.
