Outdoor street pole led screen P4 Street lighting pole led display
| Place of Origin | SHENZHEN |
|---|---|
| Brand Name | HSCX |
| Certification | CE ROHS FCC |
| Model Number | P3.84 |
| Minimum Order Quantity | 1 |
| Packaging Details | Fight case/Wooden case/honeycomb Box |
| Delivery Time | 10-20 workdays |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pixel Pitch (Mm) | P3.84 | Tube Chip Color | FULL COLOR |
|---|---|---|---|
| LED Type | SMD1921 | Pixel Density(Pixel/m2 | 67600dot/m2 |
| Refresh Rate (Hz) | >1920-3840 HZ | Cabinet Dimension(W*H)(mm) | 800*1600mm |
| Ingress Protection(Front/Rear) | IP65 | Operation Temperature | -20°, 60° |
| Operation Humidity | 10-95% RH | Operating Life | 100000H |
| Highlight | led pole screen,Outdoor Waterproof Led Screen,Double Sides Display Light Pole Screen |
||
Product Description

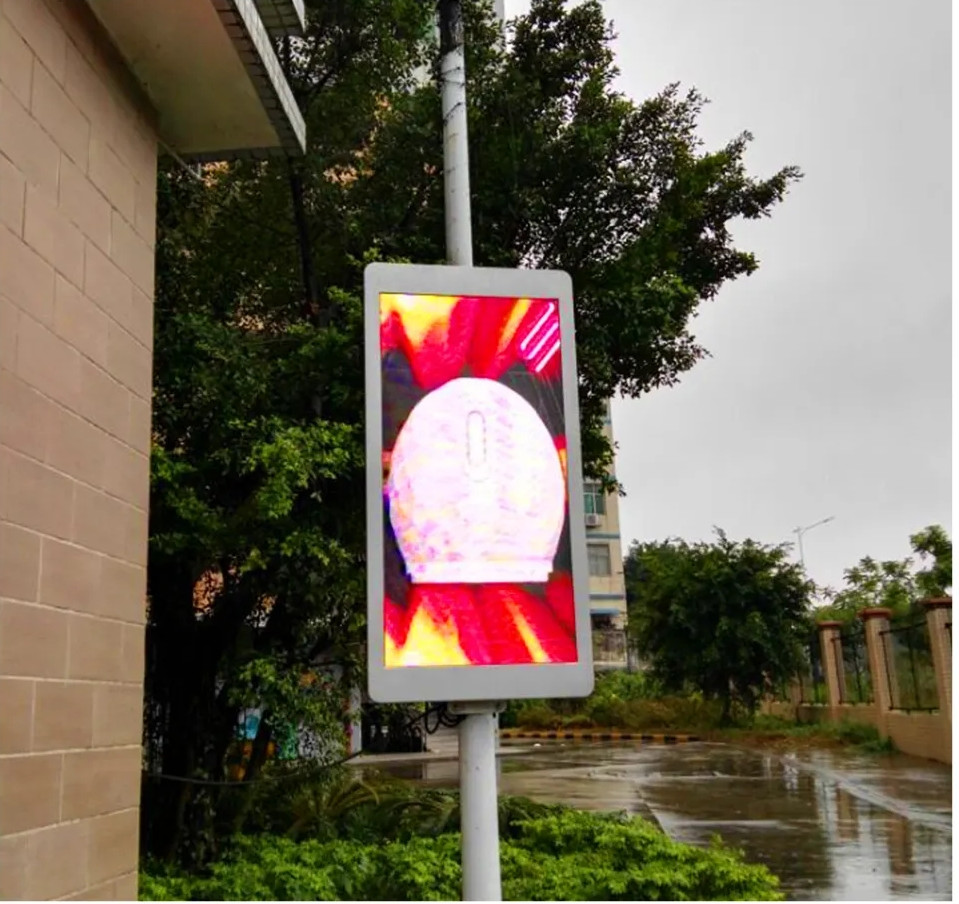

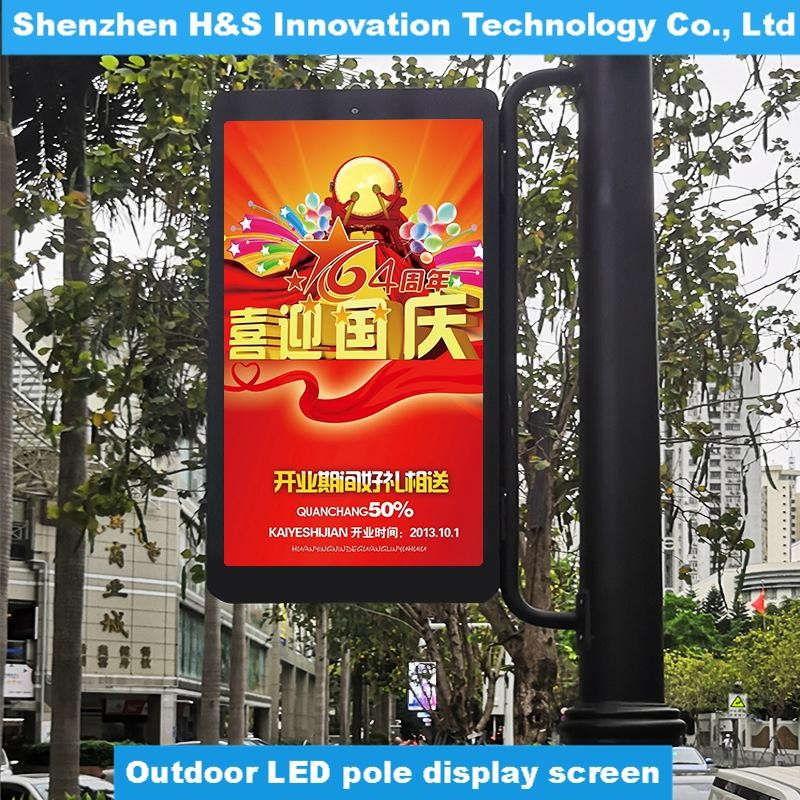

Customized Outdoor Waterproof Full Color Double sided Street Light Pole Display Screen

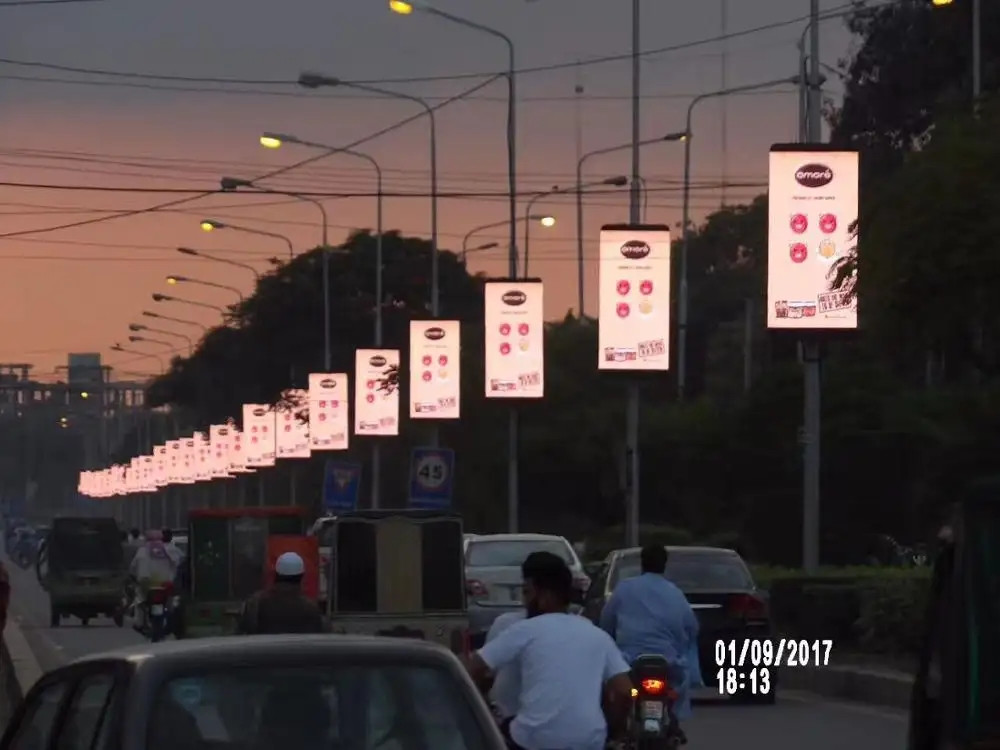

Widely Applications by LED Lampost Screens
1.Government commercial avenue , Commercial center street road. Park sightseeing project introduction, Local lighting display project. Community bulletin led display ,bus station, construction display project, airport corridor project, railway, metro station exist projects.
2.Exhibition center, museum, library. Gymnasium, stadium ,theater , university , middle school, hospital, bank, and so on.
3.Hotel, restaurant. Mountain villa, commercial buildings.
4. Shopping mall, Sales lobby ,Chain store.
Specifications
1,High brightness,easy installation
2, Energy saving,Easy maintenance
3, Advanced dot adjusting
4, 3G,4G, WIFI control
Super brightness full color LED billboard advertising
Function and Technology characters:
1. Show all kinds of word,text,graph,pictures,flashes,video,2-dimension,3-dimension carton and any other formats with your PC does synchronously.
2.Different signal resources input are acceptable,such as TV,HCTV,S-video,NTSC/PAL,DVI,AVI,VGA,SDI,MOV,MPG,HD-SDI,ect.
3,Self-adjustment function
Automatically adjusts outdoor LED display brightness to suitable level through outdoor environment condition
4,It can be used in advertisement,stage,stadium,exhibition,TV-Show,mansion video wall,shopping mall,banks,schools,bus station,airport,gym,market,factories,monitoring certers,hospitals,bars etc.
Parameters:
| Outdoor LED pole display screen parameters | ||||||
| Model | P2.5 | P3 | P3.84 | P4 | P4 | P5 |
| Pixel | 2.5mm | 3mm | 3.84mm | 4mm | 4mm | 5mm |
| Model Size | 320*160mm | 192*192mm | 200*200mm | 256*128mm | 320*160mm | 320*160mm |
| Pixel Density | 160000dot/m2 | 111111dot/m2 | 67708dot/m2 | 62500dot/m2 | 62500dot/m2 | 40000dot/m2 |
| Cabinet size | 480*960mm 640*1280mm |
384*768mm 576*1152mm 768*1536mm |
600*1200mm 800*1600mm |
512*1024mm 768*1536mm |
480*960mm 640*1280mm 800*1600mm |
480*960mm 640*1280mm 800*1600mm |
| Scan Mode | 1/16S | 1/13S | 1/13S | 1/10S | 1/10S | 1/8S |
| Maximum power | 1075W | 1000W | 950W | 900W | 900W | 900W |
| Average power | 358W | 320W | 310W | 300W | 300W | 300W |
| Refresh frequency | 1920-3840HZ | |||||
| Brightness | 5000-6000cd/m2 | |||||
| control | Cloud platform PC/3G/4G/WIFI | |||||
| Environment temperature range | -20-60℃ | |||||
| Humidity(working) | 10-95%RH | |||||
| Input Voltage | AC110-240V±15% 50-60HzVoltage | |||||
| Installation method | Lifting/Side Installation | |||||
Feature:

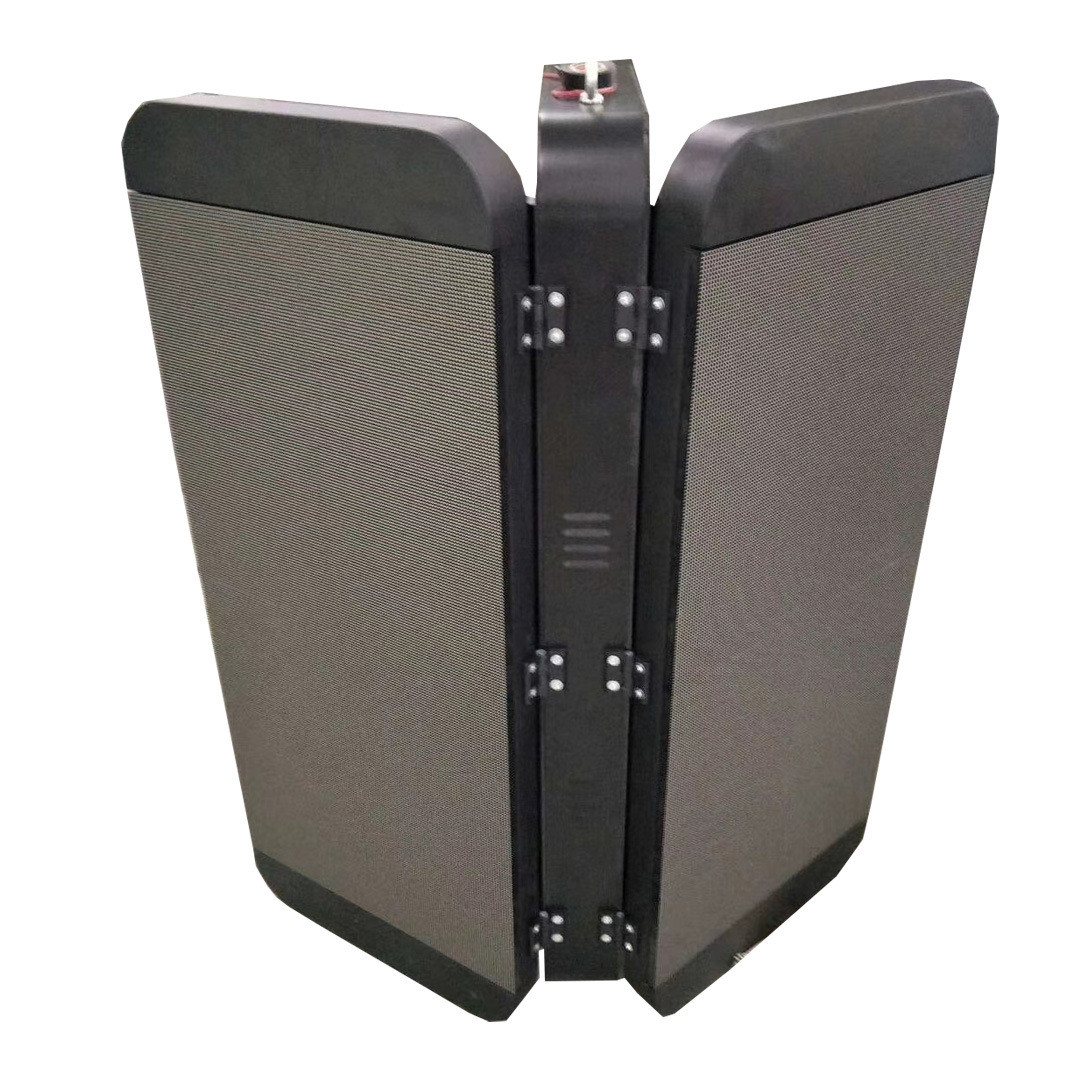

1. Double side or Single side pole light cabinet for your option.
2. Standard color : Sliver, Black, White
3. Energy saving , power consumption lower.
4. With a iron clasp fixed tightly to light pole.
5. Dynamic LED Panel Design based on customer request.
6. White side lighting make whole light box vivid different from normal type
7. It is strong enough to use in the outdoor environment, even the bad weather. 8. Our cabinet designed with waterproof parts for outdoor use. 9. Aluminum or Iron material, normally light box will have connect parts among corner , and there will be a gap at the corner. But in our welding technical,we welding cabinet corner inside , so this will make no gap and storage water. 10. Inside the cabinet, we also have waterproof belt to help avoid the water. 11. LED & power supply are waterproof, IP65 certification. 12. Our products with CE , RoHS EMC FCC Certification which could prove our quality.
Additional functions:
1. Energy efficiency: all led screen will have auto adjust brightness and auto turn on/off functions, no need people to do these work by manual.
2. With high refresh rate and meet high-speed camera’s monitor requests, the led screen should be more smooth for displaying.
3. Brightness: auto adjust brightness or add commands for adjusting brightness in the certain time, will not effect the traffics.
4. Estimate Cost:
Power consumption: 0.3KW/set * 16 hours/day *30days/month
Data flow: USD30 /month
Maintainence: USD45/set/month
1. Energy efficiency: all led screen will have auto adjust brightness and auto turn on/off functions, no need people to do these work by manual.
2. With high refresh rate and meet high-speed camera’s monitor requests, the led screen should be more smooth for displaying.
3. Brightness: auto adjust brightness or add commands for adjusting brightness in the certain time, will not effect the traffics.
4. Estimate Cost:
Power consumption: 0.3KW/set * 16 hours/day *30days/month
Data flow: USD30 /month
Maintainence: USD45/set/month
Unique advantages:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced famous brand of IC and LED for the modules.
3) Thick iron cabinet for IP65 waterproof.
4)High brightness while facing the sunshine.
5) 2 years warranty.
2) Adopting advanced famous brand of IC and LED for the modules.
3) Thick iron cabinet for IP65 waterproof.
4)High brightness while facing the sunshine.
5) 2 years warranty.
Presales and After sales Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the display, training how to use the software.
* Engineers available to service overseas.
