Programmable RGB Outdoor LED Displays Screen Football Stadium Advertising Boards

Name: Programmable RGB Outdoor LED Displays Screen Football Stadium Advertising Boards
Brand: Shenzhen H&S Innovation Technology Co., Ltd
SKU: P6.67
Price: 1,100.00 USD
Availability: InStock

Product Details

Place of Origin: SHENZHEN

Brand Name: HSCXLED

Certification: KC CE ROHS FCC

Model Number: P6.67

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: Fight case/Wooden case/honeycomb Box

Delivery Time: 10-35 workdays

Payment Terms: L/C,T/T

Supply Ability: 10000Set

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                    Programmable RGB Outdoor LED Displays, Football Stadium Outdoor LED Displays, Football Stadium programmable led display board


Pixel Pitch (Mm):	P6.67	Tube Chip Color:	FULL COLOR
LED Type:	SMD3535	Module Dimension:	320160mm(WH)(mm)
Module Resolution:	4824(WH)(Pixel)	Pixel Density:	22500 Pixel/m2
Refresh Rate:	>1920-3840 HZ	Cabinet Dimension:	960960(WH)(mm)
Cabinet Material:	Magnesium Alloy	Cabinet Weight:	28(kg)
Ingress Protection:	IP65	Operating Life:	100000H

Pixel Pitch (Mm):	P6.67
Tube Chip Color:	FULL COLOR
LED Type:	SMD3535
Module Dimension:	320160mm(WH)(mm)
Module Resolution:	4824(WH)(Pixel)
Pixel Density:	22500 Pixel/m2
Refresh Rate:	>1920-3840 HZ
Cabinet Dimension:	960960(WH)(mm)
Cabinet Material:	Magnesium Alloy
Cabinet Weight:	28(kg)
Ingress Protection:	IP65
Operating Life:	100000H

Product Description

Customized RGB LED Screen Football Stadium Advertising Boards

Customized LED Display Football Stadium Advertising Boards P6.67

Quick details of P6.67 Football Stadium Advertising Boards

The outdoor stadium LED display is a high-performance digital display device specially designed for large outdoor sports venues, integrating advanced LED display technology, outdoor protection technology and intelligent control technology. stadium LED display widely used in football fields, basketball courts, rugby fields and other various outdoor sports venues as well as large-scale outdoor event sites.

Programmable RGB Outdoor LED Displays Screen Football Stadium Advertising Boards 0

Led Display Specification:

outdoor Stadium led display P6.67
Resolution/mm	6.67
LED Type	SMD3535
Module DIMENSION(W*H)(mm)	320*160
Pixel density/pixels/m²	22500/m²
Module resolution	48x24dot
Scan mode	6S
Cabinet Dimension(W*H)(mm)	960 x 960
Cabinet Resolution(W*H)(Pixel)	144 x 144
Cabinet Material	Magnesium Alloy
Cabinet Weight(KG)	28
Best Viewing Distance(m)	7
brightness	>6000cd/㎡
Refresh frequency	>1920-3840Hz
Ingress Protection(Fron/Rear)	IP65
Viewing Angle	H:140° V:140°
Color Temperature	3200-9500K
Gray Level	14bit
Maximum power	750W/m2
Average power	300W/m2
Environment temperature range	Operating temperature range: -30-80℃
Humidity(working)	working:10-95%
Input Voltage	AC110-220V±15% 50-60Hz
Life time	100000hours

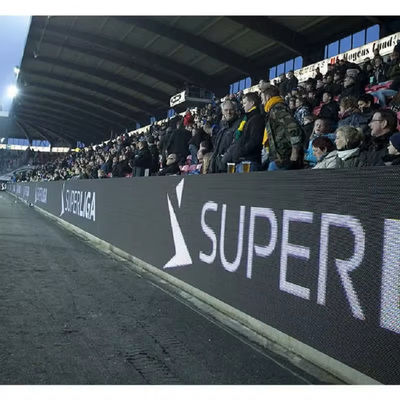

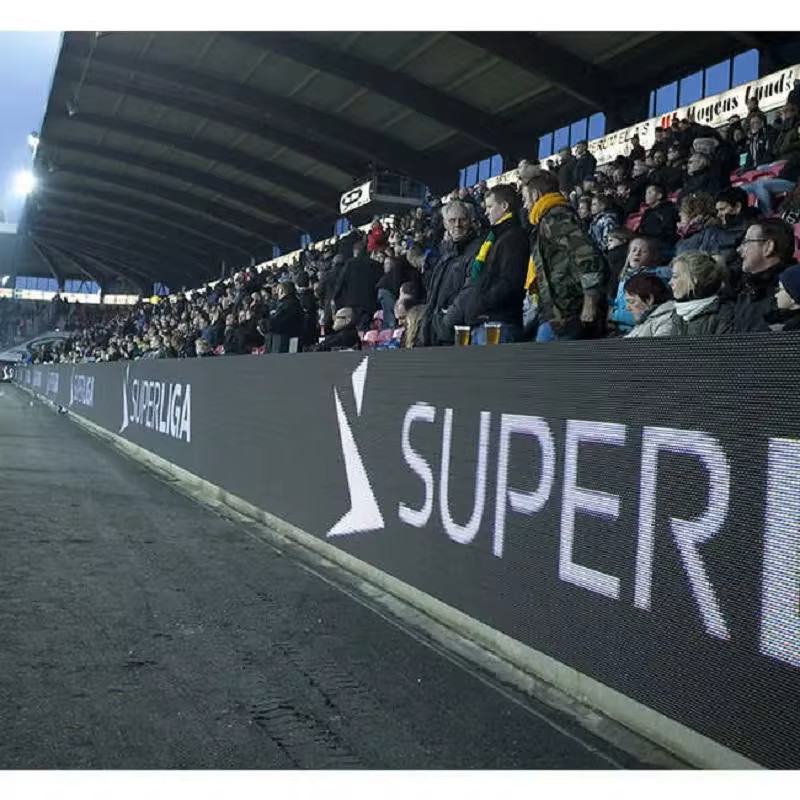

Outdoor Soccer Football Stadium Perimeter LED Screen Display Boards

Stadium LED Displays Advantages:

1. Excellent Outdoor Adaptability and Durability

P6.67outdoor led display is specially designed for outdoor harsh environments, with strong environmental adaptability. Most products have an IP65 or higher protection level, which can effectively resist rain, dust, ultraviolet radiation and other external influences, and can work stably in extreme weather such as high temperature (up to 65℃) and low temperature (down to -20℃). Stadium LED display screen cabinet is made of high-quality aluminum alloy, which is lightweight, corrosion-resistant and impact-resistant. Some perimeter displays are also equipped with anti-collision EVA foam and silicone pads to avoid damage caused by collision with athletes or sports equipment, ensuring long-term stable operation in high-frequency use scenarios. At the same time, Stadium LED display screen service life can reach 50,000-100,000 hours, which has strong durability and reduces the later maintenance cost.

2. High Brightness and Clear Visual Effect

Aiming at the problem of strong outdoor sunlight affecting the display effect, the outdoor stadium LED display adopts high-brightness LED lamp beads, with a maximum brightness of 5000-10000 nits, which can easily penetrate direct sunlight and ensure that the picture is clear, bright and free of glare even in the noon sun. It has a high contrast ratio (up to 10000:1) and rich color gamut, which can restore real and vivid colors, making the event pictures, advertisements and videos more layered and shocking. In addition, stadium LED display screen has a wide viewing angle of 160°-180°, which can cover the entire stadium. Audiences in any seat can see clear and consistent pictures without adjusting their sitting posture, ensuring that every audience has the same high-quality viewing experience.

3. Flexible Installation and Customizable Size

stadium LED display screen adopts a modular design, which can be freely spliced according to the size and shape of the stadium, and is highly flexible. The stadium LED display screen cabinet is lightweight, and the installation method is flexible. At the same time, stadium LED display screen supports front and rear maintenance, which is convenient and quick to maintain, saving time and labor costs, and avoiding affecting the normal use of the stadium during maintenance.

4. High Stability and Smooth Playback

stadium LED display screen adopts advanced signal transmission technology and intelligent control system, with strong anti-interference ability, which can avoid signal loss, picture freezing and flickering during long-term operation, ensuring stable and smooth playback of real-time pictures, replays and advertisements. The stadium LED display screen refresh rate is as high as 3840Hz or more, making the dynamic picture more smooth and natural. In addition,stadium LED display screen supports seamless splicing technology, without obvious splicing gaps, ensuring the integrity and beauty of the picture, and bringing a better viewing experience to the audience.

5. Energy Conservation and Environmental Protection

stadium LED display screen adopts energy-saving LED lamp beads and intelligent brightness adjustment technology, which can automatically adjust the screen brightness according to the outdoor light intensity, not only ensuring the display effect, but also effectively reducing power consumption, and the average power consumption is far lower than that of traditional display equipment. stadium LED display screen long service life and simple maintenance can reduce the frequency of equipment replacement and maintenance, further reducing the long-term operation cost of the stadium.

6. Diversified Functions and Strong Expandability

Outdoor Stadium LED Display supports a variety of content display formats, including text, pictures, videos, live streams, real-time data and other content, and can be flexibly switched according to the needs of events. It can be seamlessly connected with the stadium's monitoring system, audio system, ticketing system and other equipment to realize integrated control and improve the efficiency of event organization and venue operation.

outdoor stadium LED display, with its diversified applications and outstanding product advantages, has become an important part of modern outdoor stadiums, which not only optimizes the audience's viewing experience and enriches the form of events, but also helps stadiums realize commercial value and intelligent operation, and plays an irreplaceable role in promoting the development of the sports industry.

Our Service

1.Pre-sales service :

Our team design and make solutions based on different requirements from different customers, what you think is what we can do.

2.After-sales services:

1). We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

2). We provide remote control service through internet to achieve real time service, which will short time of solving problems.

3). We provide professional engineer one-to-one to keep fastly reply.

3.Installation Service:

1). We provide detailed CAD drawing to customer for preparing metal structure.

2). We could dispatch our engineer to your place , guide installation and free training.

3). Special designs have special solutions; we will make perfect solutions to satisfy all customers' requirements.
