Waterproof Outdoor Led Advertising Screen P8 Fixed For Football Stadium
| Place of Origin | SHENZHEN |
|---|---|
| Brand Name | HSCX |
| Certification | CE ROHS FCC |
| Model Number | P8 |
| Minimum Order Quantity | 1 |
| Packaging Details | Fight case/Wooden case/honeycomb Box |
| Delivery Time | 10-35 workdays |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pixel Pitch (Mm) | P8 | Tube Chip Color | FULL COLOR |
|---|---|---|---|
| LED Type | SMD3535 | Module Dimension | 320*160mm(W*H)(mm) |
| Module Resolution | 40*20(W*H)(Pixel) | Pixel Density | 15625 Pixel/m2 |
| Refresh Rate | >1920-3840 HZ | Cabinet Dimension | 960*960(W*H)(mm) |
| Cabinet Material | Magnesium Alloy | Cabinet Weight | 28(kg) |
| Ingress Protection | IP65 | Operating Life | 100000H |
| Highlight | Waterproof outdoor led advertising screen,P8 Fixed outdoor led advertising screen,P8 Fixed football stadium led advertising |
||
Product Description
Customized RGB LED Screen Football Stadium Advertising Boards
Customized LED Display Football Stadium Advertising Boards P8
Quick details of P8Football Stadium Advertising Boards
Led Display Specification
| outdoor Stadium led display P8 | |||
| Resolution/mm | 8 | ||
| LED Type | SMD3535 | ||
| Module DIMENSION(W*H)(mm) | 320*160 | ||
| Pixel density/pixels/m² | 15625/m² | ||
| Module resolution | 40x20dot | ||
| Scan mode | 5S | ||

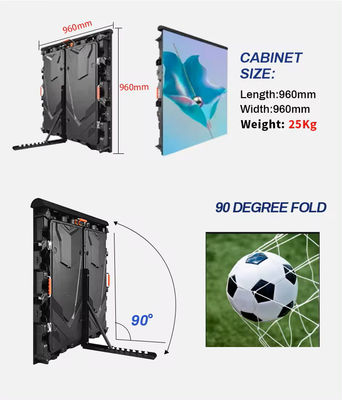

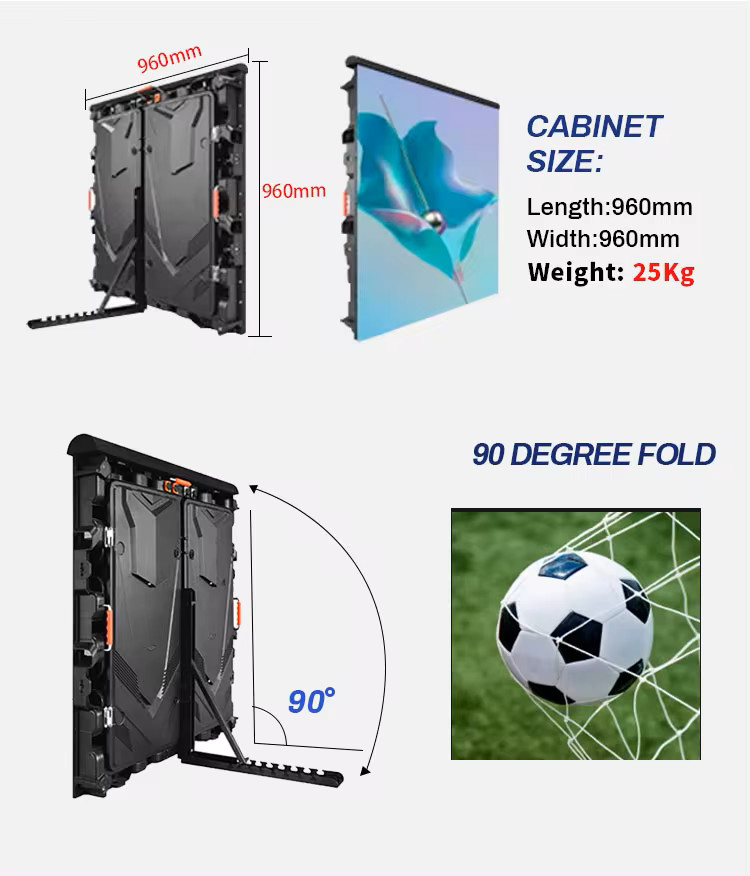

| Cabinet Dimension(W*H)(mm) | 960 x 960 | ||
| Cabinet Resolution(W*H)(Pixel) | 120 x 120 | ||
| Cabinet Material | Magnesium Alloy | ||
| Cabinet Weight(KG) | 28 | ||
| Best Viewing Distance(m) | 8 | ||
| brightness | >6500cd/㎡ | ||
| Refresh frequency | >1920-3840Hz | ||
| Ingress Protection(Fron/Rear) | IP65 | ||
| Viewing Angle | H:140° V:140° | ||
| Color Temperature | 3200-9500K | ||
| Gray Level | 14bit | ||
| Maximum power | 800W/m2 | ||
| Average power | 350W/m2 | ||
| Environment temperature range | Operating temperature range: -30-80℃ | ||
| Humidity(working) | working:10-95% | ||
| Input Voltage | AC110-220V±15% 50-60Hz | ||
| Life time | 100000hours | ||
Outdoor Stadium Perimeter LED display
Features:
1) Extra Wide Viewing Angle, larger than 140 degree;
2) Soft Rubber Face, Protecting Electronics while Be Safe to Players;
3) Super-High Refresh Rate, ensuring flicker-free video camera capturing;
4) Very wide brightness dynamic range (1000:1), achieving good picture contrast ratio in different illumination level;
5) Variable field layout and sub-window division, housing different advertising capacity;
6) Astonishing synchronizing between sub-windows;
7) Easy and fast in-field-setup-work;
8) Strong and rugged enclosure design;
9) Modules can be daisy chained as perimeter, or tiled up as big display;
10) Neat and simple system wiring scheme, scalable system configuration;
11) Flight case grants safe and quick transportation;
12) Projects proven product reliability.
