Football Stadium Outdoor LED Displays Sport Soccer Field Perimeter P10 RGB Led Panel
Product Details:
| Place of Origin: | SHENZHEN |
| Brand Name: | HSCX |
| Certification: | CE ROHS FCC |
| Model Number: | P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Fight case/Wooden case/honeycomb Box |
| Delivery Time: | 10-35 workdays |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Pixel Pitch (Mm): | P10 | Tube Chip Color: | FULL COLOR |
|---|---|---|---|
| LED Type: | SMD3535 | Module Dimension: | 320*160mm(W*H)(mm) |
| Module Resolution: | 32*16(W*H)(Pixel) | Pixel Density: | 10000 Pixel/m2 |
| Refresh Rate: | >1920-3840 HZ | Cabinet Dimension: | 960*960(W*H)(mm) |
| Cabinet Material: | Magnesium Alloy | Cabinet Weight: | 28(kg) |
| Ingress Protection: | IP65 | Operating Life: | 100000H |
| Highlight: | P10 RGB Outdoor LED Displays,P10 Perimeter Outdoor LED Displays,Perimeter p10 rgb led panel |
||
Product Description
Customized RGB LED Screen Football Stadium Advertising Boards
Customized LED Display Football Stadium Advertising Boards P10
Quick details of P10Football Stadium Advertising Boards
Led Display Specification
| outdoor Stadium led display P10 | |||
| Resolution/mm | 10 | ||
| LED Type | SMD3535 | ||
| Module DIMENSION(W*H)(mm) | 320*160 | ||
| Pixel density/pixels/m² | 10000/m² | ||
| Module resolution | 32x16dot | ||
| Scan mode | 2S | ||
| Cabinet Dimension(W*H)(mm) | 960 x 960 | ||
| Cabinet Resolution(W*H)(Pixel) | 96 x 96 | ||
| Cabinet Material | Magnesium Alloy | ||
| Cabinet Weight(KG) | 28 | ||
| Best Viewing Distance(m) | 10 | ||
| brightness | >7000cd/㎡ | ||
| Refresh frequency | >1920-3840Hz | ||
| Ingress Protection(Fron/Rear) | IP65 | ||
| Viewing Angle | H:140° V:140° | ||
| Color Temperature | 3200-9500K | ||
| Gray Level | 14bit | ||
| Maximum power | 800W/m2 | ||
| Average power | 350W/m2 | ||
| Environment temperature range | Operating temperature range: -30-80℃ | ||
| Humidity(working) | working:10-95% | ||
| Input Voltage | AC110-220V±15% 50-60Hz | ||
| Life time | 100000hours | ||

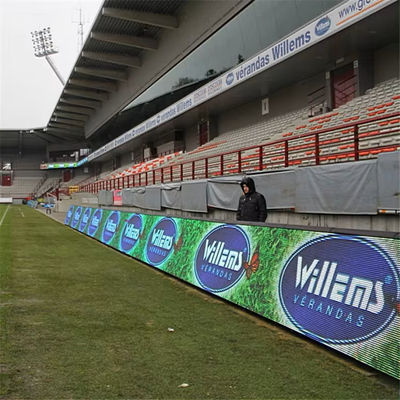

Indoor & Outdoor P6 P8 P10 football basketball stadium perimeter led screen stadium led display
* High brightness & High refresh rate.
* Nova star/Linsn/Colorlight control system indoor outdoor led screen

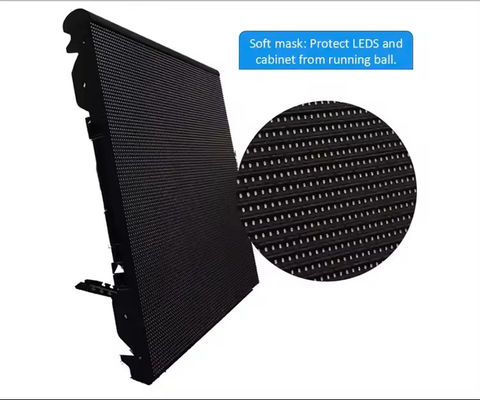

* Soft mask: Protect LEDS and cabinet from running ball.
Bracket: Seven inclination grooves.
Adjustable inclination of cabinet: 85-40 degrees
LED Display Seamless Splicing
* Slim and light weight, quick disassembly.
* High degree of protection,high durability.
LED Display Test
Each product tested more than 72 hours before shipment
