ODM COB Led Screen HD Display P1.25 P1.56 P1.875 Wall Mounted
| Place of Origin | SHENZHEN |
|---|---|
| Brand Name | HSCX |
| Certification | CE ROHS FCC |
| Model Number | P1.875 |
| Minimum Order Quantity | 1set |
| Packaging Details | Fight case/Wooden case/Honeycomb Box |
| Delivery Time | 20-35 workdays |
| Payment Terms | L/C, T/T, D/A |
| Supply Ability | 1000Set |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Produce Name | COB LED Display | Pixels | 1.875mm |
|---|---|---|---|
| LED Type | COB | Pixel Density | 284444Pixel/m2 |
| Module Size | 150*168.75mm | Cabinet Dimension | 600*337.5mm |
| IP Grade | IP31 | Refresh Rate | 3840hz |
| Viewing Angle | 160°/160° | Brightness | ≥1000cd/m² |
| Used | Indoor Mounted On The Wall | Screen Size | Customized |
| Highlight | ODM cob led screen,Wall Mounted cob led screen,P1.56 cob display |
||
Product Description
Ultra high definition led display fullcolourleddisplay
P1.25mm LED Video Display 600*337.5mm HD fullcolourleddisplay
Indoor COB LED Display screen Cabinet 600*337.5mm
Indoor COB P0.93 P1.25 HD LED screen LED Display 600*337.5mm fullcolourleddisplay
full colour led display Features:
1. Module size:150x168.75mm, compatible pitch: P0.93/P1.25
2. Cabinet size:600x337.5mm,16:9 aspect ratio.

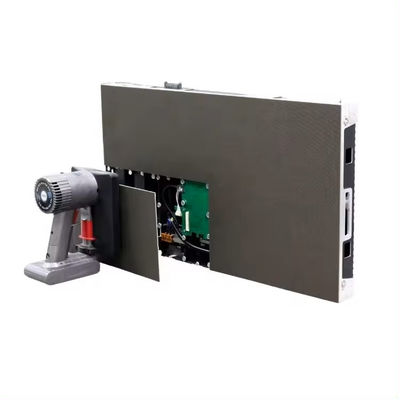

3. Floating connection design between module and cabinet, the module could be fine-tuned.
4. Support double backup of power supply and control system
5. 2K/4K/8K dot to dot matching.
Parameters:
|
full colour led display COB Led Display Specification |
|||
| pixel pitch | 1.25 | 1.56 | 1.875 |
| lamp | SMD1010 | SMD1212 | SMD1515 |
| module size(W×H) | 150*168.75 | ||
| module resolution(Pixel/m2) | 120*135 | 96*108 | 80*90 |
| physcial density(dot/m²) | 640000 | 409600 | 284444 |
| cabinet size(W×H) | 600 * 337.5 mm | ||
| cabinet resolution(W*H)(Pixel) | 480*270 | 384*216 | 320*180 |
| scanning mode | 1/45 | 1/48 | 1/30 |
| cabinet Material | Diecasting Aluminum | ||
| cabinet weight(kg) | 5 | ||
| best viewing distance(m) | 1.25 | 1.56 | 1.87 |
| gray scale(bit) | 14-16 | ||
| IP Grade | IP31 | ||
| viewing angle | H:160 V:160 | ||
| brightness | 600-900cd/㎡ | ||
| contrast ratio | ≥8000:1 | ||
| color temperature | 3200-9300k | ||
| refreshrate | ≥3840hz | ||
| Maximum power | 600W/M2 | ||
| Average power | 200W/M2 | ||
| Operating temperature | -20-60℃ | ||
| Operating Humidity | 10-95%RH | ||
| Input Voltage | AC110-220V±15% 50-60Hz | ||
| MTBF(Hours) | 50000 | ||
| Life Time(Hours) | 100000 | ||
1,COB LED display: Easy to clean with water, eliminating the need for masks, dust, or cloths.
2,All-weather excellence: Utilizes triple protection for superb performance against water, moisture, corrosion, dust, static, oxidation, and UV effects.
3,High Resolution: Provides crisp and clear images, ideal for viewing detailed content and graphics.
4,Brightness and Contrast: Offers high brightness levels and excellent contrast ratios, ensuring visibility even in well-lit environments.
5,Long Lifespan: LED displays have a long operational lifespan, requiring minimal maintenance and replacement.
6,Flexibility: Can be customized in terms of size, shape, and aspect ratio to fit various indoor spaces and applications.
7,Versatility: Suitable for a wide range of indoor applications including retail stores, corporate offices, command centers, broadcast studios, and more.
