Highlight:
Indoor Adverting Display
, Ultra Slim led display screen
, Cob Indoor Led Screen

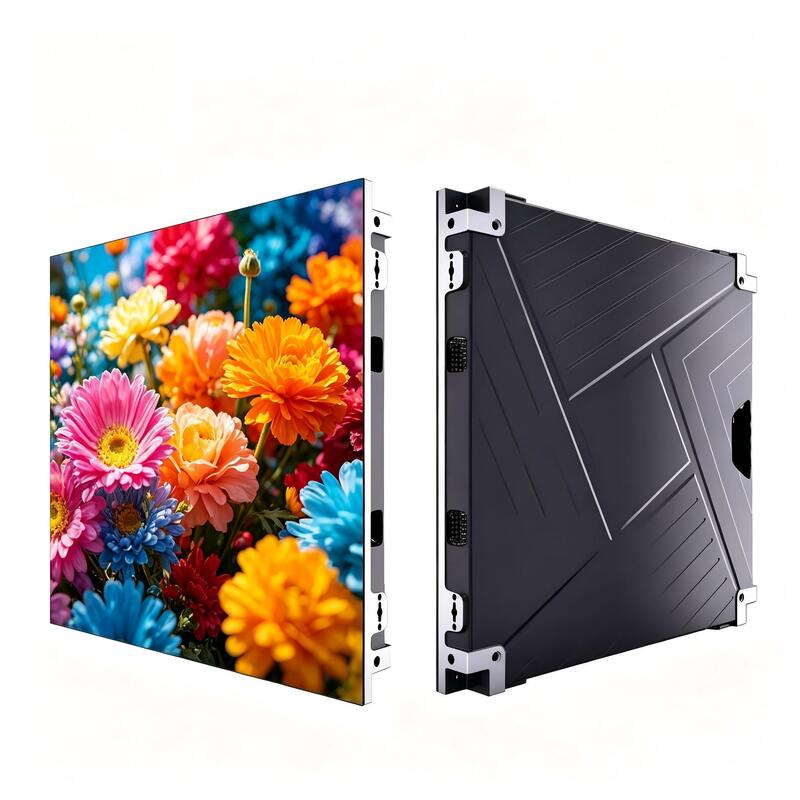

16:9 600×337.5mm HD LED Display
600×337.5mm Size Cabinet
3840HZ High Refresh Rate
Frontal Service Design for Easy Installation
High-end Indoor LED Display
CE, RoHS, FCC ,KC Approved
3 Year Warranty and 5% Spare Part
COB Led screen Specification:
| COB Led Display Screen/Small Pitch Led Display |
| Pixel Pitch |
P0.78 |
P0.93mm |
P1.25mm |
P1.56mm |
P1.87mm |
| Pixel Density |
1,638,400 |
1,137,777 |
640,000 |
409,600 |
284,444 |
| LED Chip |
Flip Chip |
| Module Size |
150*168.75mm(W*H) |
| Module Resolution |
192*216 dots |
160*180 dots |
120*135 dots |
96*108 dots |
80*90 dots |
| Panel Size |
600mm*337.5mm*39.5mm(W*H*D) |
| Panel Weight |
4.5kg (600*337.5mm) |
| Panel Resolution |
768*432(dots) |
640*360(dots) |
480*270(dots) |
384*216(dots) |
320*180(dots) |
| Material |
Die-casting Aluminium |
| Circuit Design |
Options: Common Cathode Circuit / Common Anode Circuit |
| Flash Correction Storage |
Applicable |
| Brightness |
Standard 600nits / 1000nits optional |
| Refresh Rate |
3840Hz |
| Contrast Ratio |
10000:1 (Condition without lighting) |
| Color Temperature |
9300K (Standard) |
| Viewing Angle |
H160° , V160° |
| Input Voltage |
AC 100~240V 50/60Hz |
| Max. Power Consumption |
800w/Sqm 250w/Sqm |
| Maintenance Way |
Front Service |
| IP level |
IP54 (Washable by clean water) |
| Lifetime |
100,000 hours |
| Operating Temperature / Humidity |
-10°C-+40°C/10%RH-90%RH |
| Stroage Temperature / Humidity |
-20°C-+60°C/10%RH-90%RH |
| Certificate |
KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001 |
Ultra HD Visual Effect
COB led screen have HD LED cabinet with 16:9 golden ratio, 3840HZ high refresh rate and fine pixel pitch, can be the best choice for high-end indoor LED screens.
16:9 Golden Ratio Design
The COB led screens cabinet size follows a 16:9 ratio, measuring 600*337.5mm. It boasts an excellent cabinet design, prized for its ultra-lightweight and ultra-thin features.
Perfect Cabinet Design
Our COB LED screens cabinet design is perfect, featuring a beautiful appearance and user-friendly layout. It’s quick to install and easy to maintain, offering a visually pleasing experience that delights the eye.
Ultra Lightweight
Experience flawless visuals from any angle with our ultra-lightweight design, weighing in at just 4.5kg. Our cob led display crafted with a high-precision aluminum cabinet frame, it seamlessly splices images and videos, delivering the perfect visual experience you desire.
300x168.75mm/150x337.5mm Size Modules
Our COB screens using high-quality, unique LED modules that support module temperature detection, voltage detection, dot-to-dot correction, and more.
Frontal Service Design
Frontal service design for LED receiving cards, HUB cards, power supplies, and LED modules. The LED modules are assembled with magnetic features for front access.
High Flatness
Our LED display offers seamless splicing, fast locking, and simple internal wiring for quick maintenance and seamless connections.
With no gaps, COB led screen provides 16K, 8K, 4K, and FHD seamless visual displays.
Wide Viewing Angle
Viewing angle is up to 170° horizontal, providing a wide viewing angle to reach more target audience.
Multiple Installation Way
Unique Aluminum Back Brackets
Self-positioning design,automatic leveling between structures,The whole screen will be ultra thin about 5cm after installation.
Why Choose COB (Chip-on-Board) Technology?
COB technology attaches LED chips directly to the PCB and covers them with epoxy resin. It includes Flip-Chip COB and Standard COB.
(1) High resolution – Delivers clear and sharp images, ideal for detailed displays.
(2) Durable and long-lasting – Built to withstand tough environments, ensuring long-term reliability.
(3) Seamless design – Provides a smooth, continuous display with no visible gaps between panels.
(4) Wide viewing angles – Ensures excellent visibility from various angles, perfect for diverse viewing positions.
(5) Moiré pattern reduction – Minimizes interference, providing a cleaner image, especially in filming and broadcast environments.
Applications of COB LED Displays
COB LED displays are becoming popular in many fields thanks to their unique features like high brightness, durability, and excellent image quality.
Their versatility allows them to be used in a variety of settings where clear, reliable visual performance is needed.
Indoor Advertising: Ideal for shopping malls, retail stores, and showrooms where bright, seamless images attract customers.
Corporate Displays: Perfect for conference rooms, lobbies, and digital signage, offering sharp visuals with a sleek design.
Entertainment and Events: Widely used in concerts, exhibitions, and trade shows due to their easy installation and high durability.
Transportation Hubs: Useful in airports, train stations, and bus terminals for clear information displays that withstand heavy use.
Public Spaces: Suitable for museums, galleries, and public information boards requiring reliable, high-quality screens.
